Festo 532725 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
FESTO DNCB-32-40-PPV-A ISO Cylinder is a high-precision pneumatic actuator designed for industrial automation. Featuring a 32 mm bore, 40 mm stroke, and double-acting operation, it ensures optimal performance and durability. The square frame and G 1/8 pneumatic connection provide compatibility with various pneumatic systems.1/832mm40mmActuatorAutomationboreconnectionCylinderDNCB-32-40-PPV-Adouble-actingFestoframeGhigh-pressureIndustrialISOpnPneumaticSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

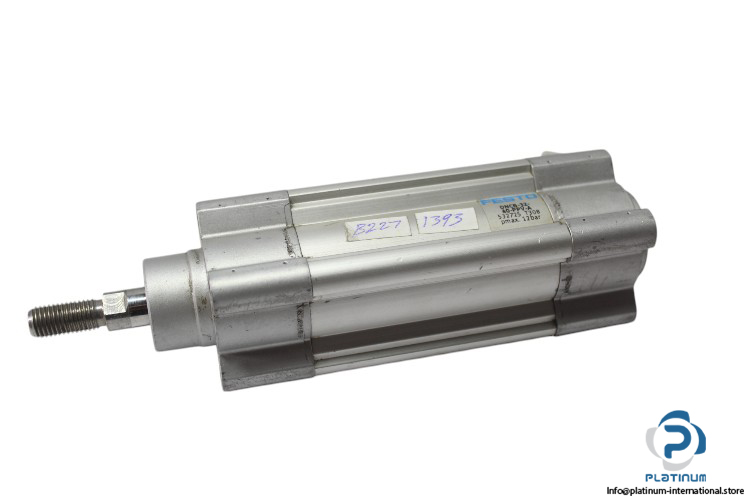

FESTO DNCB-32-40-PPV-A ISO Cylinder
The FESTO DNCB-32-40-PPV-A ISO Cylinder is a high-precision pneumatic actuator designed for industrial applications requiring durability, efficiency, and reliable motion control. With a compact square frame and high-pressure capacity, this double-acting cylinder ensures smooth operation in various automation systems.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-32-40-PPV-A
Part No.: 532725
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 40 mm |
| Bore x Stroke | 32 x 40 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 45 x 155 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
