Festo 532758 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
FESTO DNCB-50-250-PPV-A ISO Cylinder is designed for high-performance pneumatic applications. With a 50 mm bore, 250 mm stroke, and double-acting operation, it ensures efficient force transmission and durability. Featuring a male piston rod end and a G 1/4 pneumatic connection, it is ideal for industrial automation.1/4250mm50mmActuatorAirAutomationboreCompressedControlCylinderDNCB-50-250-PPV-Adouble-actingFestoGhigh-pressureIndustrialISOMotionpPneumaticSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

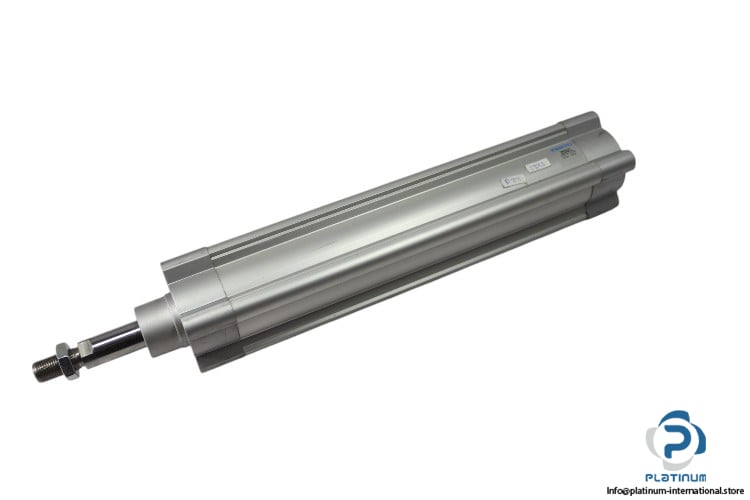

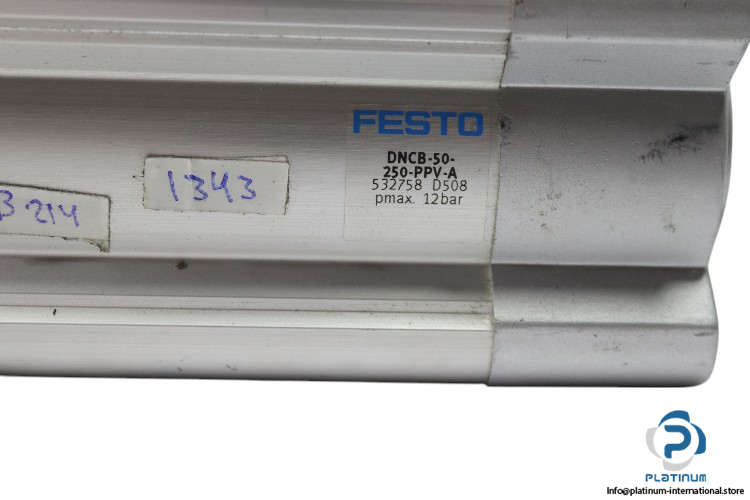

FESTO DNCB-50-250-PPV-A ISO Cylinder
The FESTO DNCB-50-250-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for precision and durability. Built to ISO standards, it ensures reliable operation in industrial automation and motion control applications. With a robust square-shaped frame and double-acting operation, this cylinder delivers efficient force transmission and smooth motion.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-50-250-PPV-A
Part No.: 532758
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 250 mm |
| Bore x Stroke | 50 x 250 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 390 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
