Festo 532765 ISO Cylinder
Used
In stock5 unitsReady to ship
ISO Cylinder
FESTO DNCB-63-50-PPV-A ISO Cylinder is designed for industrial automation, ensuring precise force transmission. With a 63 mm bore, 50 mm stroke, and a double-acting operation, it offers high efficiency and durability. Equipped with a G 3/8 pneumatic connection and a male piston rod end, it is suitable for demanding applications.3/850mm63mmActuatorAutomationboreComponentsconnectionCylinderDNCB-63-50-PPV-Adouble-actingFestoGhigh-performanceIndustrialISOpnePneumaticShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

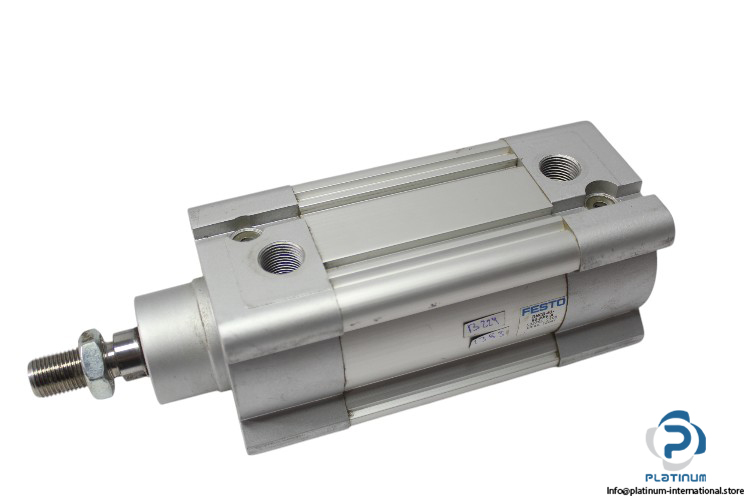

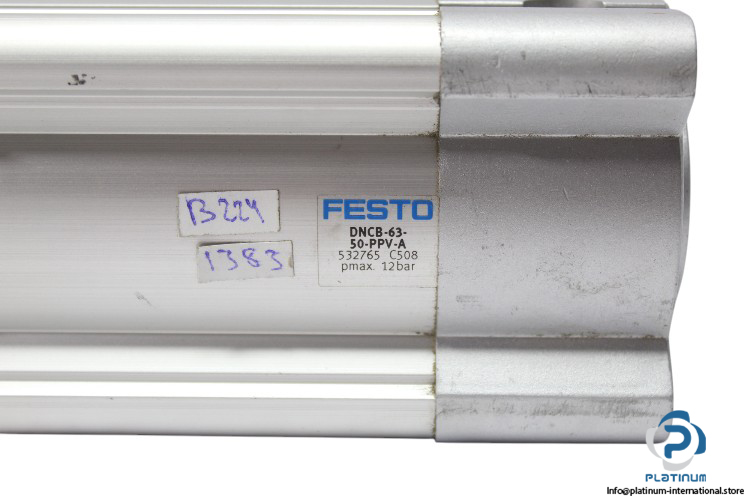

FESTO DNCB-63-50-PPV-A ISO Cylinder
The FESTO DNCB-63-50-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for industrial automation and machinery applications. Engineered for precision and durability, this double-acting cylinder ensures reliable force transmission and efficient motion control.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-63-50-PPV-A
Part No.: 532765
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 50 mm |
| Bore x Stroke | 63 x 50 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 75 x 210 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
