Festo 532766 Standard Cylinder
Used
In stock6 unitsReady to ship
Standard Pneumatic Cylinder
Festo DNCB-63-80-PPV-A double-acting standard cylinder with 63 mm bore, 80 mm stroke, and adjustable pneumatic cushioning for industrial automation applications.63mmActingActuatorAdjustableAutomationboreCushioningCylinderDNCB-63-80-PPV-ADoubleFestoIndustrialPneumaticSquareStandard
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

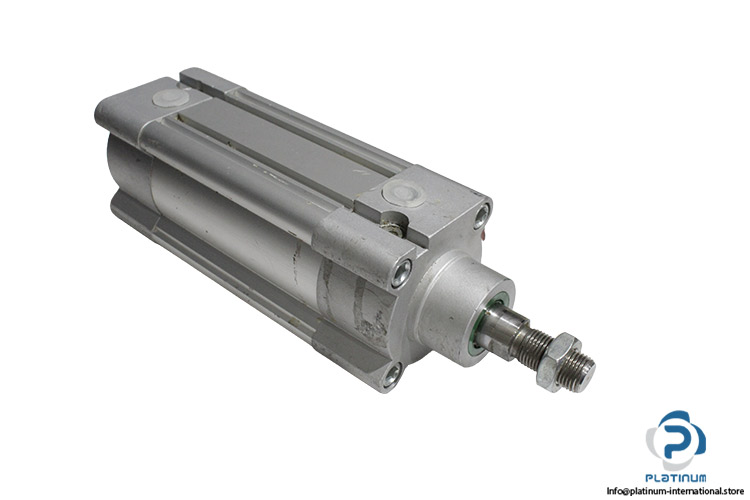

Festo DNCB-63-80-PPV-A Standard Cylinder
A robust and high-performance standard pneumatic cylinder manufactured by Festo, designed for reliable linear motion in industrial automation systems. This double-acting cylinder features adjustable pneumatic cushioning at both ends, durable construction materials, and precise manufacturing to ensure smooth operation, long service life, and consistent performance under demanding operating conditions.
Manufacturer: Festo
Type: Standard Cylinder

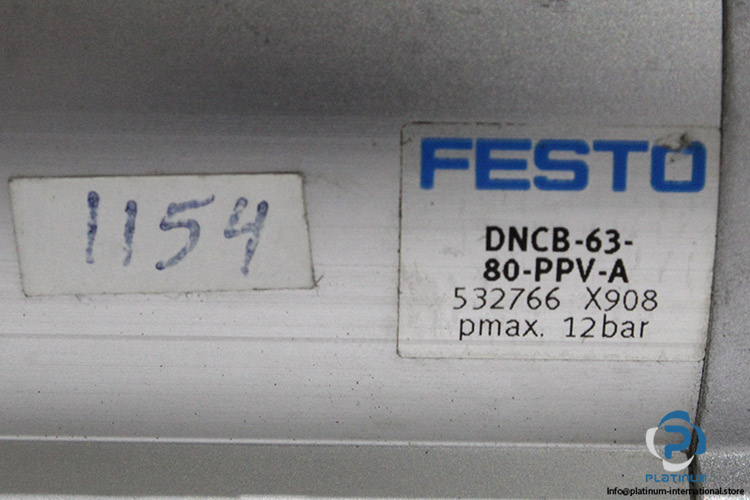

Model: DNCB-63-80-PPV-A
Part No.: 532766
Code: X908
| Fluid | Air |
| Bore Diameter | 63 mm |
| Stroke | 80 mm |
| Bore x Stroke | 63 x 80 mm |
| Frame Dimensions | 75 x 235 mm |
| Cushioning | PPV, Pneumatic cushioning adjustable at both ends |
| Variants | Single-ended piston rod one side |
| Mode of Operation | Double-acting |
| Shape | Square |
| Working Pressure | Maximum 12 bar |
| Connection | G 3/8 |
| Ambient Temperature | -20 °C to 80 °C |
| Material Cover | Aluminum die cast |
| Material Seals | TPE-U (PU) |
| Material for Piston Rod | High alloy steel |
| Materials for Cylinder Barrel | Wrought aluminum alloy |
