Festo 532908 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
FESTO DNCB-100-500-PPV-A ISO Cylinder is designed for high-precision pneumatic applications. With a 100 mm bore, 500 mm stroke, and double-acting operation, it ensures efficient motion control. The square-shaped frame and male piston rod end provide stability and durability for demanding industrial environments.1/2100mm12500mmActuatorAutomationbarboreCconnectionCylinderDNCB-100-500-PPV-Adouble-actingFestoGHigh-EfficiencyIndustrialISOMaxPneumaticPrecisionPressureStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

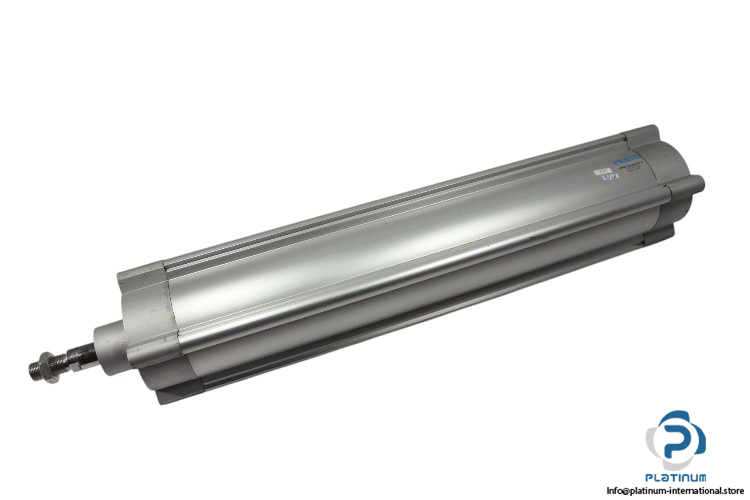

FESTO DNCB-100-500-PPV-A ISO Cylinder
The FESTO DNCB-100-500-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precision, durability, and efficient force transmission. Engineered to ISO standards, this double-acting cylinder ensures reliable motion control with high efficiency.
Manufacturer: FESTO
Type: ISO Cylinder

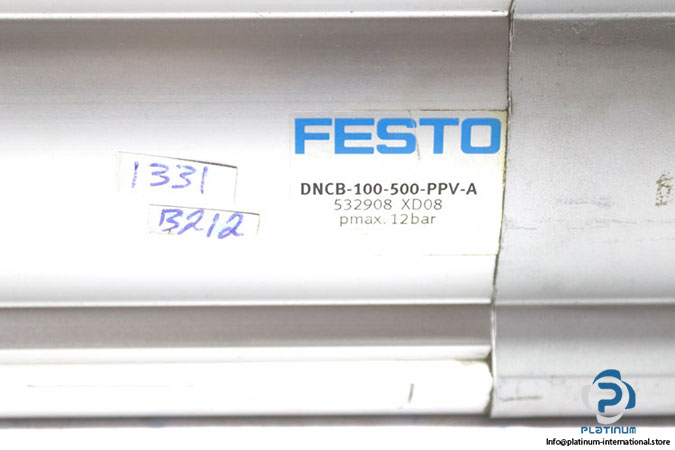

Model: DNCB-100-500-PPV-A
Part No.: 532908
| Media | Compressed Air |
| Bore Diameter | 100 mm |
| Stroke | 500 mm |
| Bore x Stroke | 100 x 500 mm |
| Rod Diameter | 25 mm |
| Frame Dimensions | 110 x 680 mm |
| Pneumatic Connection | G 1/2 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
