Festo 536214 Compact Cylinder
New
In stock1 unitReady to ship
39,99$

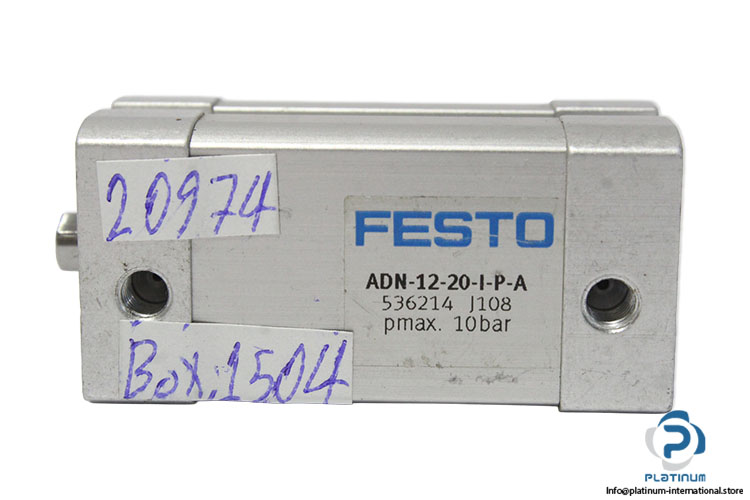

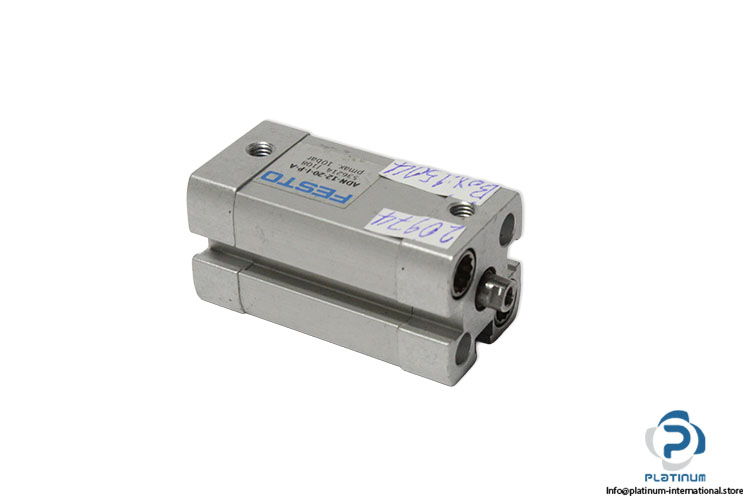

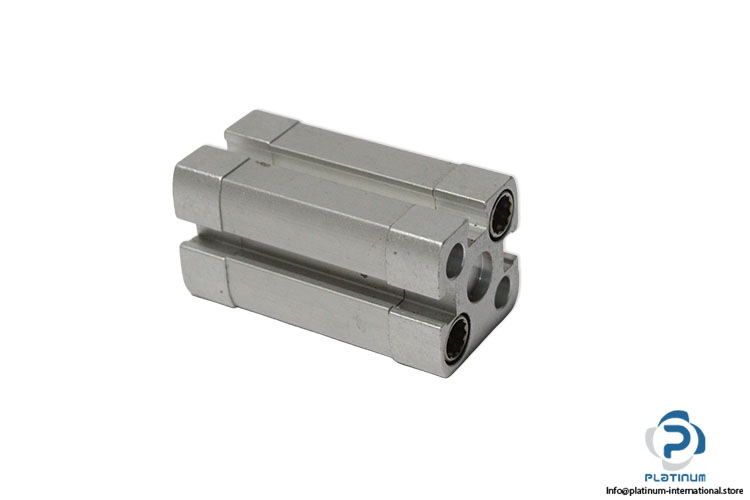

Festo ADN-12-20-I-P-A Compact Cylinder The Festo ADN-12-20-I-P-A Compact Cylinder is a compact and reliable pneumatic actuator featuring a 12 mm bore, 20 mm stroke, double acting operation, and max. 10 bar operating pressure. Designed for precision motion control, it offers durable aluminum construction and proximity sensor compatibility for industrial automation applications.
ActingActuatorADNAirAluminumAutomationCompactControlCylinderDoubleFestoIndustrialMotionpnPneumaticProximitySensor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 536214 |
| Code | J108 |
| Series | ADN |
| Fluid | Compressed Air |
| Stroke | 20 mm |
| Bore Size | 12 mm |
| Operating Mode | Double acting |
| Cushion Type | Elastic cushioning rings/pads at both ends |
| Rod Direction | One Side |
| Piston Rod End | Female |
| Shape | Square |
| Operating pressure | max. 10 bar |
| Position sensing | For proximity sensor |
| Port size | 5mm |
| Material cover | Anodized Wrought aluminum alloy |
| Material Piston Rod | High-alloy steel |
| Material of cylinder barrel | Smooth-anodized wrought aluminum alloy |
| Ambient temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097461 |
| Weight | 0,10 |
