Festo 536250 Compact Cylinder
New
In stock2 unitsReady to ship
Compact Air Cylinder
The Festo ADN-25-120-I-P-A is a double-acting compact air cylinder with a 25 mm piston diameter and 120 mm stroke. Designed for reliable performance in a range of industrial applications, it features anodized aluminum alloy construction and high-alloy steel piston rod.25ADN-25-120-I-P-AAirCompactCylinderdiameterdouble-actingFestoHigh-AlloyIndustrialmmPistonPneumaticRODSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

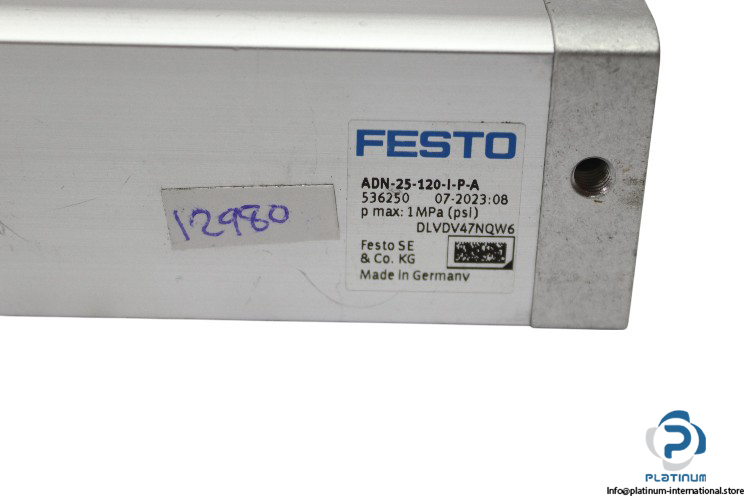

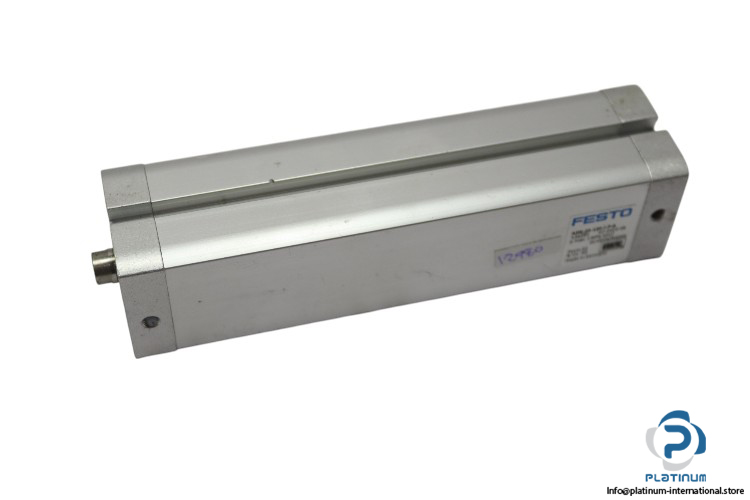

Festo ADN-25-120-I-P-A “ Compact Air Cylinder
The Festo ADN-25-120-I-P-A compact air cylinder is designed for efficient operation in industrial automation systems. This double-acting cylinder with extended external thread piston rod provides reliable performance under a wide range of operating conditions, making it ideal for high-performance applications.
Manufacturer: Festo
Type: Compact Air Cylinder
Model: ADN-25-120-I-P-A
Part No.: 536250
| Operating Medium | Compressed air |
| Design of Cylinder | Piston |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Piston Rod End | Extended external thread piston rod, Female internal thread |
| Mode of Operation | Double-acting |
| Operating Pressure | 0.6 to 10 bar |
| Piston Diameter | 25 mm |
| Stroke | 120 mm |
| Pneumatic Connection | 5 mm |
| Cover Material | Wrought aluminum alloy, anodized |
| Flange Screws Material | Steel |
| Piston Rod Material | High-alloy steel |
| Ambient Temperature Range | -40 to 120°C |
