Festo 536265 Compact Cylinder

In stock1 unitReady to ship

compact cylinder

The Festo Compact Cylinder ADN-25-40-I-P-A (Part No. 536265) provides reliable pneumatic operation with a 40 mm stroke length, 25 mm piston diameter, and 10 bar max. operating pressure for space-efficient applications.

SKU
1059397
Condition
Used
New In stock
This product is also available brand new
View New Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

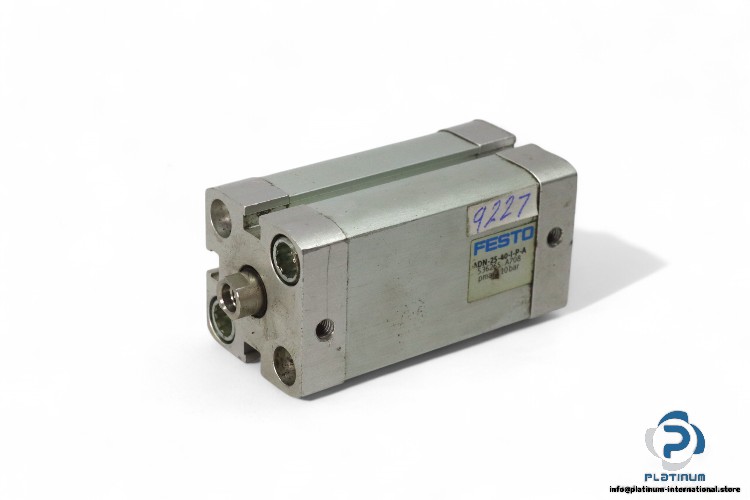

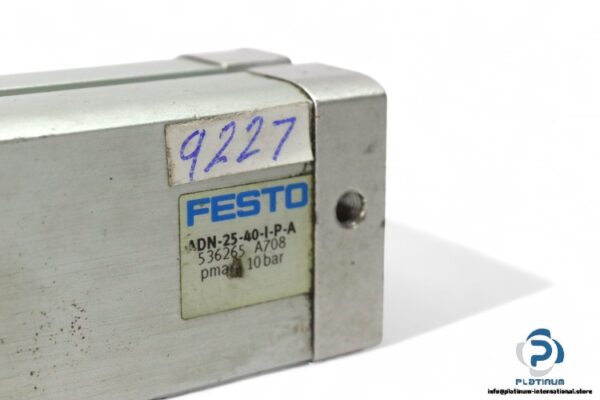

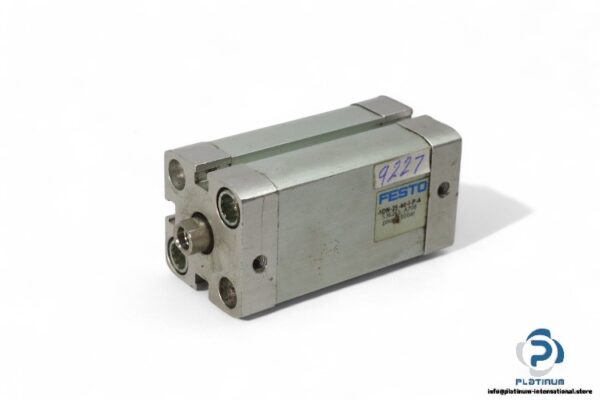

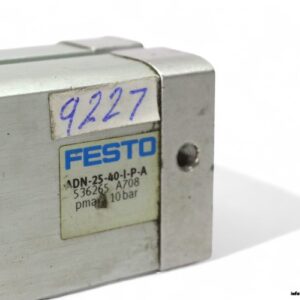

FESTO COMPACT CYLINDER

The Festo Compact Cylinder (Model: ADN-25-40-I-P-A, Part No. 536265) is designed for efficient pneumatic applications, providing reliable and high-performance operation in a compact design. With a 40 mm stroke length and 25 mm piston diameter, this cylinder is ideal for applications that require precise motion and space-saving solutions.

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADN-25-40-I-P-A

Part No.: 536265

Technical Specifications

  • Stroke Length: 40 mm
  • Piston Diameter: 25 mm
  • Piston Rod Thread: Female
  • Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
  • Max. Operating Pressure: 10 bar
  • Mode of Operation: Double acting
  • Cushioning: Elastic cushioning rings/pads at both ends
  • Position Sensing: For proximity sensing
  • Variant: Piston rod at one end
  • Pneumatic Connection: 5 mm
  • Temperature: -20 … 80 °C
