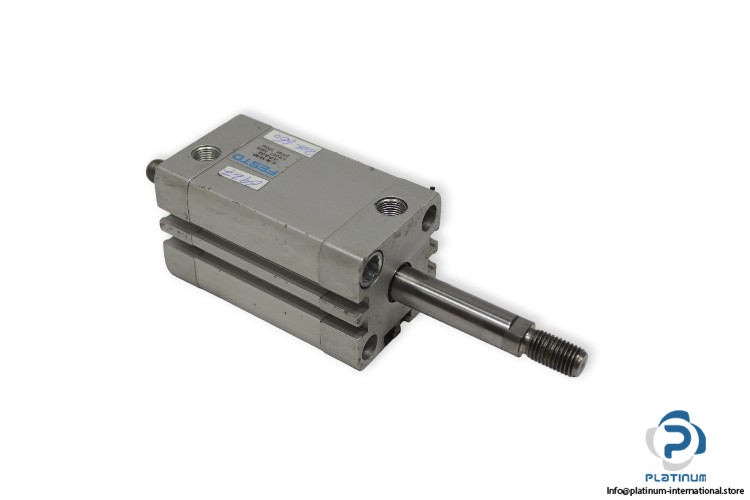

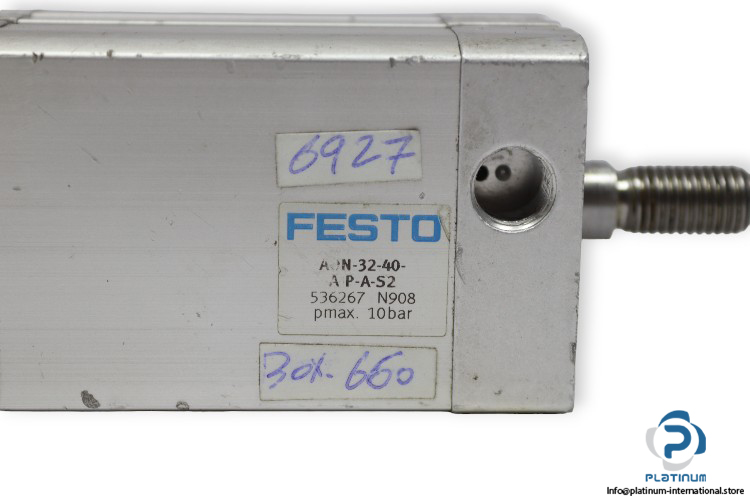

Festo 536267 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-32-40-A-P-A-S2
Part No.: 536267

Stroke Length: 40 mm
Piston Diameter: 32 mm
Operating medium: Compressed air
Piston rod thread: Male
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Pneumatic Connection: G1/8
Ambient temperature: -40 °C … 120 °C
Theoretical force at 6 bar, retracting: 415 N
