Festo 536267 Compact Cylinder
New
In stock2 unitsReady to ship

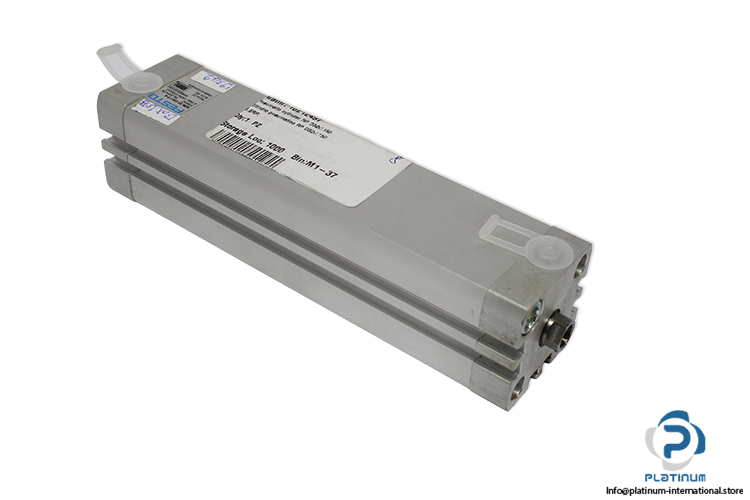

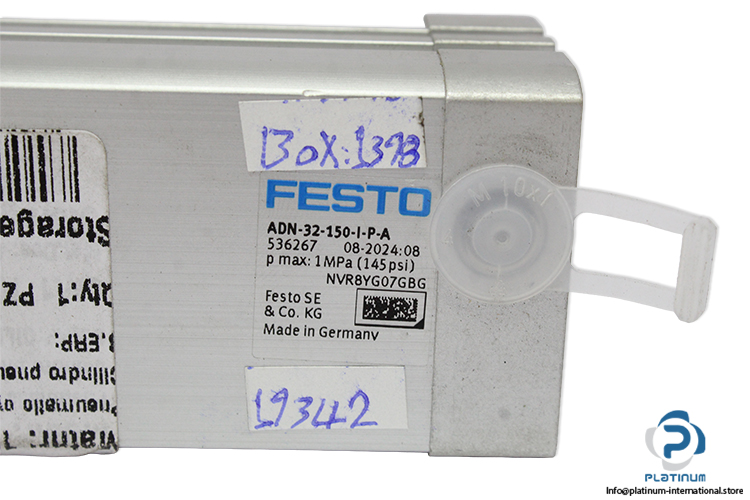

Compact Cylinder FESTO ADN-32-150-I-P-A compact cylinder with 150 mm stroke, double-acting operation, and durable aluminium construction for reliable pneumatic performance.
150150mm3232mm5362678573ActingActuatorADNAirAluminiumBodycompCompactCylinderDoubleFestoIndustrialISOPistonPneumaticSeriesStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 536267 |
| Stroke | 150 mm |
| Piston Diameter | 32 mm |
| Cushioning | Flexible cushioning rings/pads at both ends |
| Mode of Operation | Double acting |
| Piston Rod End | Female thread |
| Position Detection | Via proximity switch |
| MAX Operating Pressure | 1 Mpa |
| Operating Medium | Compressed air to ISO 8573-1:2010 |
| Ambient Temperature | minus 20 to 80 degree Celsius |
| Material Cover | Wrought aluminium alloy |
| Connection | G1/8 |
| Condition | New |
| SKU | 1096680 |
| Weight | 0,6 |
