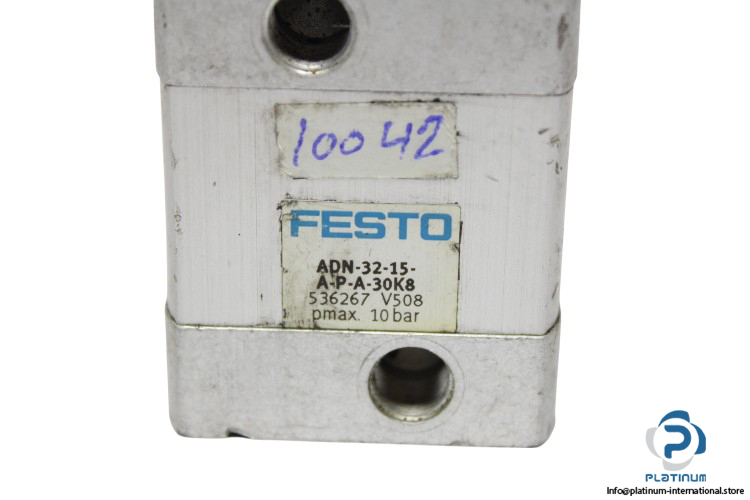

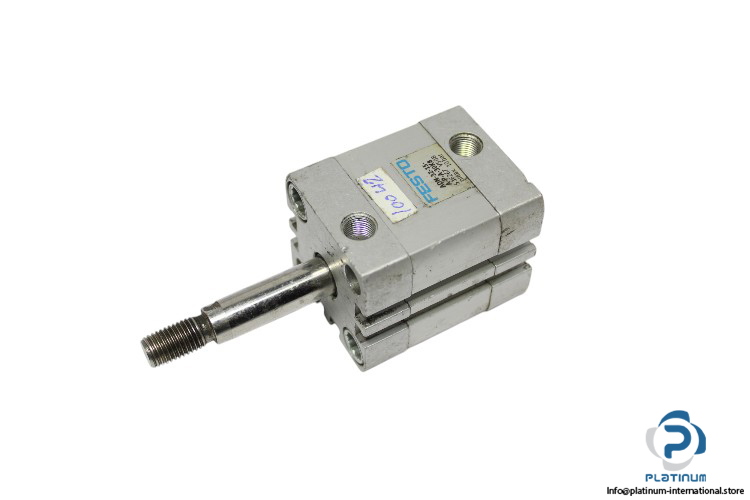

Festo ADN-32-15-A-P-A-30K8 Compact Cylinder
The Festo ADN-32-15-A-P-A-30K8 Compact Cylinder is engineered for precision motion control in pneumatic systems. Featuring a robust aluminum alloy cover and a high-alloy steel piston rod, this double-acting cylinder delivers durability and reliable performance across a wide temperature range.
Manufacturer: Festo
Type: COMPACT CYLINDER
Model: ADN-32-15-A-P-A-30K8
Part No.: 536267
This compact cylinder is ideal for space-constrained applications, offering excellent efficiency and reliability in pneumatic automation systems.
| Material Cover | Anodized wrought aluminum alloy |
| Piston Rod | High-alloy steel |
| Stroke Length | 15 mm |
| Piston Diameter | 32 mm |
| Cushioning | Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning |
| Position Sensing | Via proximity switch |
| Pneumatic Connection | G 1/8 |
| Operating Pressure | 0.6 bar to 10 bar |
| Mode of Operation | Double-acting |
| Temperature Range | -40 °C to 120 °C |
| Operating Medium | Compressed air |
