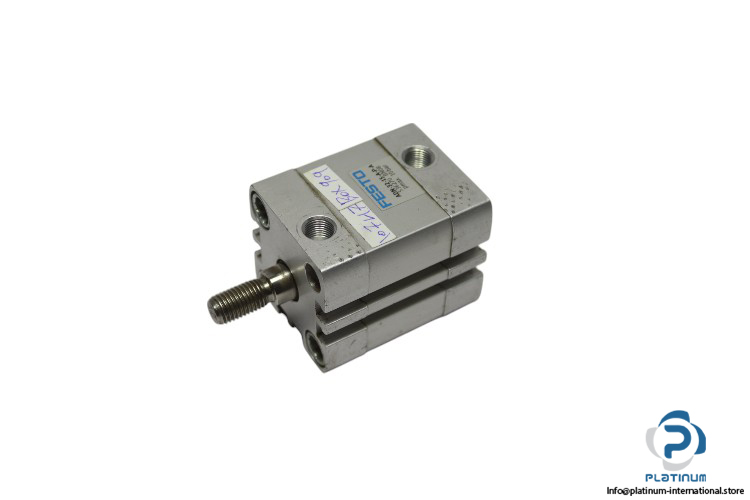

Festo 536270 Compact Cylinder
Used
In stock2 unitsReady to ship
39,99$
compact cylinder
The Festo Compact Cylinder ADN-32-15-A-P-A (Part No. 536270) features a 15 mm stroke, 32 mm piston diameter, and elastic cushioning for smooth operation in industrial pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO COMPACT CYLINDER
The Festo Compact Cylinder (Model: ADN-32-15-A-P-A, Part No. 536270) is designed for efficient and reliable actuation in various industrial automation applications. With a stroke length of 15 mm and a piston diameter of 32 mm, this double-acting cylinder operates with compressed air and features elastic cushioning rings for smooth operation. The cylinder is optimized for proximity sensing and offers a wide temperature range for diverse operating conditions.
Manufacturer: FESTO
Type: Compact Cylinder

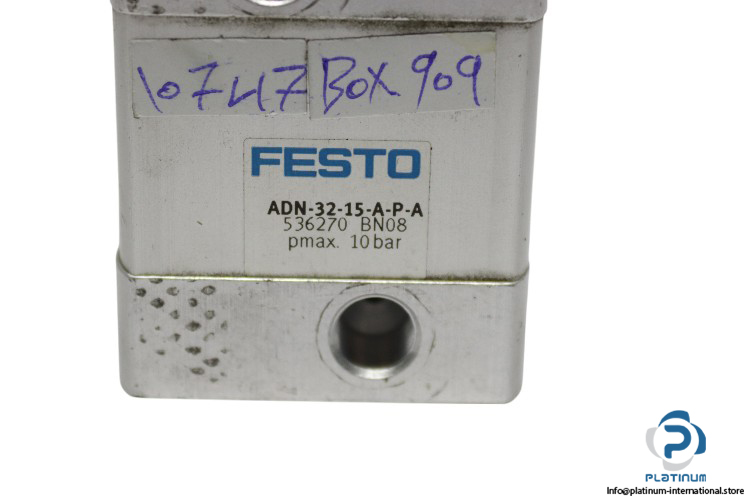

Model: ADN-32-15-A-P-A
Part No.: 536270
Technical Specifications
- Stroke Length: 15 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: M10x1.25
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Operating Medium: Compressed air
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Cover Material: Wrought aluminum alloy, anodized
- Temperature: -20 to 80 °C
