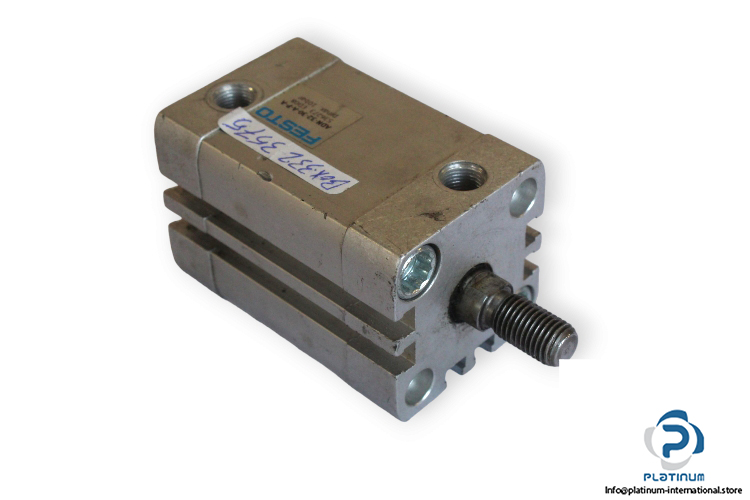

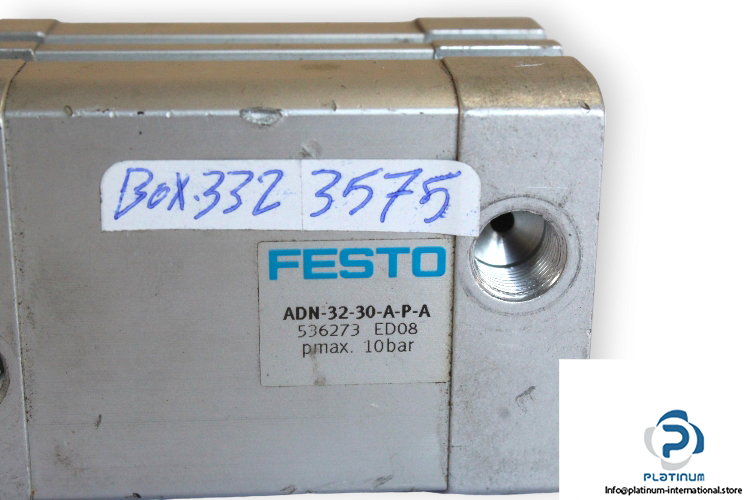

Festo 536273 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-32-30-A-P-A
Part No.: 536273

Media: Air
Stroke Length: 30 mm
Piston Diameter: 32 mm
Piston Rod Thread: M10x1.25
Cushioning: Elastic cushioning rings/plates at both ends
Piston-rod end: Male Thread
Operating Pressure: 0.6 … 10 bar
Mode of operation: Double acting
Position Detection: Via proximity switch
Pneumatic Connection: G 1/8
Temperature: –20 … 80 °C
