Festo 536274 Compact Cylinder
New
In stock1 unitReady to ship
Compact Cylinder
FESTO ADN-32-40-A-P-A Compact Cylinder is a precision-engineered pneumatic actuator featuring a 40 mm stroke length, 32 mm piston diameter, and double-acting functionality. With a smooth-anodized aluminum barrel and elastic cushioning rings, it ensures efficient performance in automation applications.40536274ActuatorADN-32-40-A-P-AAirAutomationCompactCylinderdouble-actingFestohigh-performanceIndustrialmmPneumaticProximitySensingStrokeWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

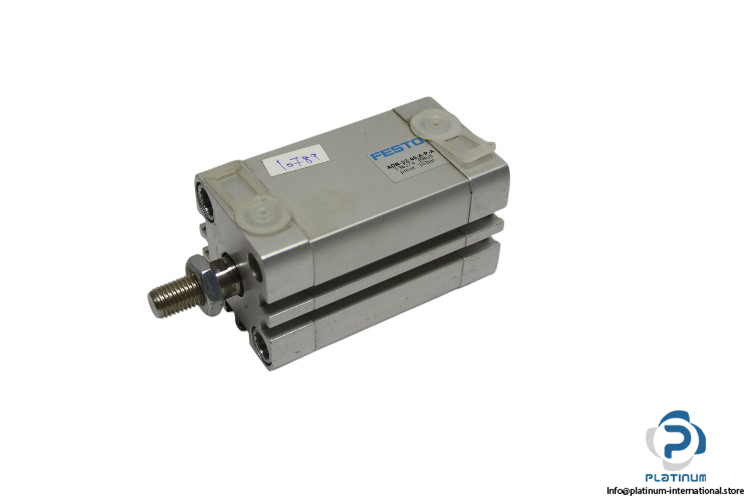

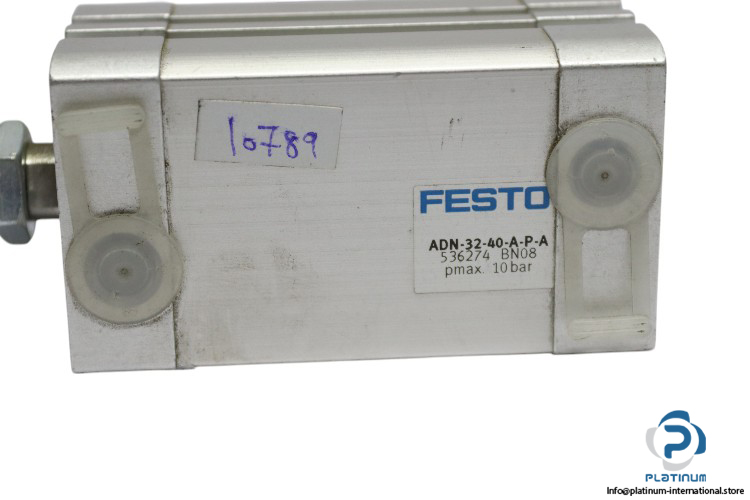

FESTO ADN-32-40-A-P-A Compact Cylinder
The FESTO ADN-32-40-A-P-A Compact Cylinder is a high-performance pneumatic actuator designed for applications requiring compactness, precision, and reliability. Built with a smooth-anodized wrought aluminum alloy cylinder barrel, this double-acting cylinder ensures optimal functionality with elastic cushioning rings for smooth operation. Ideal for industrial automation, this cylinder supports proximity sensing and operates at a maximum pressure of 10 bar.
- Manufacturer: FESTO
- Type: Compact Cylinder
- Model: ADN-32-40-A-P-A
- Part No.: 536274
Technical Specifications
- Stroke Length: 40 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: M10x1.25
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double Acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Temperature Range: -20 … 80 °C
