Festo 536292 Compact Cylinder
Compact Cylinder

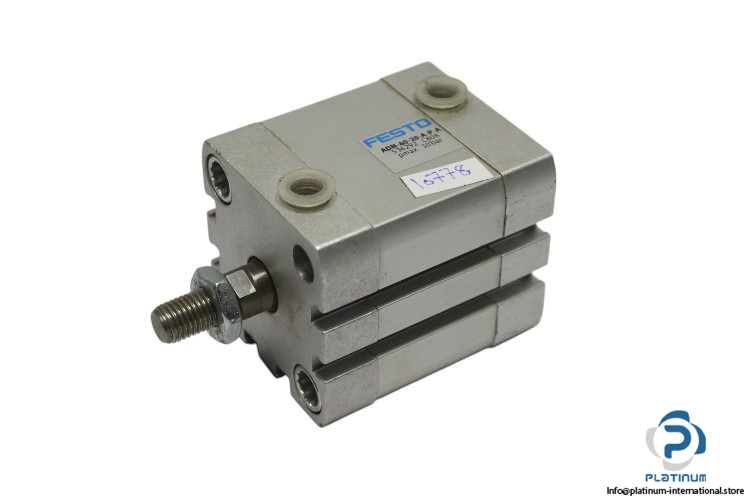

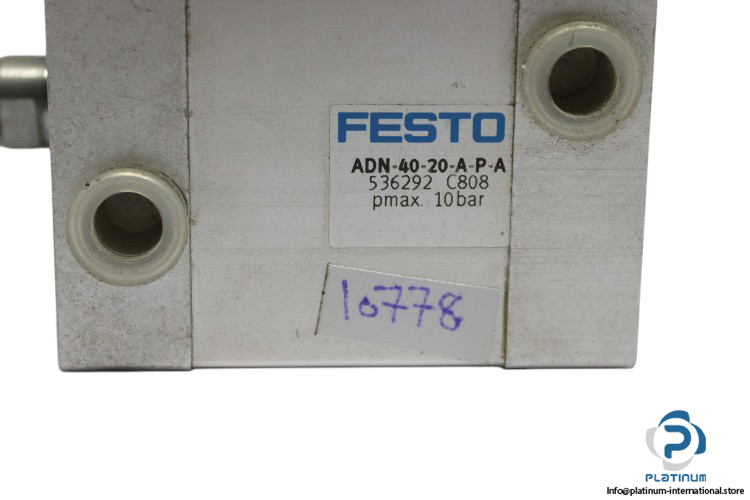

FESTO Compact Cylinder AND-40-20-A-P-A with 20 mm stroke, 40 mm piston diameter, and 10 bar maximum operating pressure. Features elastic cushioning rings at both ends, G1/8 pneumatic connection, and proximity sensing for reliable position detection.FESTO Compact Cylinder AND-40-20-A-P-A
The FESTO Compact Cylinder AND-40-20-A-P-A is a high-performance pneumatic actuator designed for space-saving solutions. With a stroke length of 20 mm and a piston diameter of 40 mm, this double-acting cylinder is ideal for applications requiring precise control and efficient performance. The cylinder barrel is made of smooth-anodized wrought aluminum alloy for enhanced durability and corrosion resistance. The cylinder features elastic cushioning rings/pads at both ends for smooth operation and has a pneumatic connection of G1/8. It also includes proximity sensing for position detection, ensuring reliable performance in automated systems.
Manufacturer: FESTO
Type: Compact Cylinder
Model: AND-40-20-A-P-A
Part No.: 536292
Technical Specifications
- Stroke Length: 20 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: Male
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 / 80 °C
