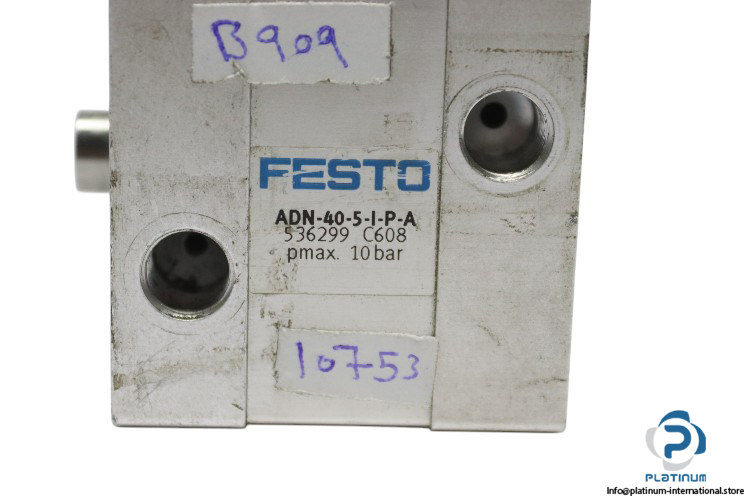

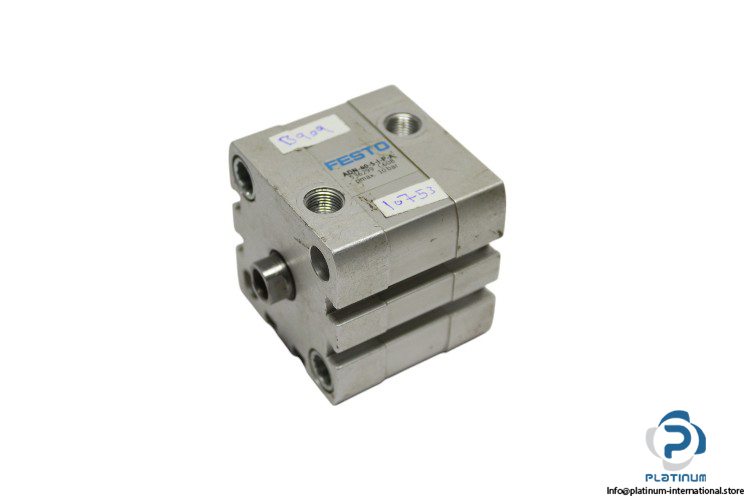

Festo 536299 Compact Cylinder
Compact Cylinder
FESTO Compact Cylinder ADN-40-5-I-P-A with 5 mm stroke length, 40 mm piston diameter, and 0.6 to 10 bar operating pressure. Double-acting operation with internal thread piston-rod end and G 1/8 pneumatic connection for reliable actuation in industrial systems.FESTO Compact Cylinder ADN-40-5-I-P-A
The FESTO Compact Cylinder ADN-40-5-I-P-A is a high-performance pneumatic cylinder designed for space-saving applications in industrial systems. With a piston diameter of 40 mm and a stroke length of 5 mm, this cylinder offers reliable and efficient actuation. It operates within a pressure range of 0.6 to 10 bar and features double-acting operation for optimal performance. The internal thread piston-rod end and steel construction ensure durability, while the G 1/8 pneumatic connection makes it easy to integrate into existing systems. This cylinder operates in temperatures ranging from -20°C to 80°C, providing versatility for various environments.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-40-5-I-P-A
Part No.: 536299
Technical Specifications
- Fluid: Compressed Air
- Stroke Length: 5 mm
- Piston Diameter: 40 mm
- Operating Pressure: 0.6 … 10 bar
- Operation Mode: Double-Acting
- Piston-Rod End: Internal Thread
- Material: Steel
- Pneumatic Connection: G 1/8
- Temperature: -20 / 80 °C
