Festo 536305 Compact Cylinder
Used
In stock1 unitReady to ship
Compact Cylinder
FESTO ADN-40-40-I-P-A compact double-acting pneumatic cylinder with 40 mm stroke, ISO 21287 compliance, and proximity switch position detection for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

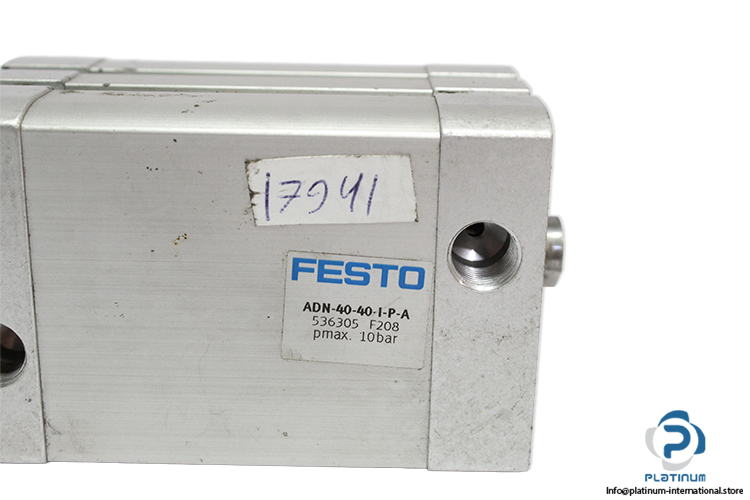

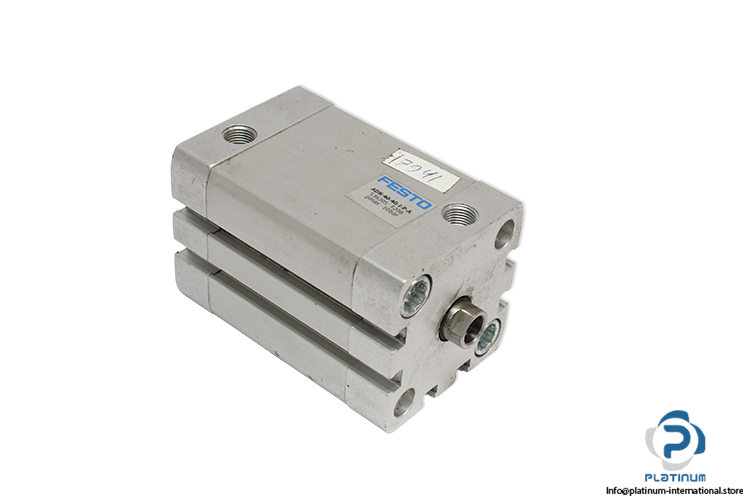

FESTO ADN-40-40-I-P-A Compact Cylinder
The FESTO ADN-40-40-I-P-A is a compact pneumatic cylinder engineered according to ISO 21287, offering reliable double-acting operation in a space-saving design. It is suitable for flexible mounting positions and supports precise position detection via proximity switches.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-40-40-I-P-A
Part Number: 536305
| Stroke | 40 mm |
| Piston Diameter | 40 mm |
| Piston Rod Thread | M8 |
| Piston-Rod End | Female Thread |
| Variants | Piston Rod At One End |
| Cushioning | Elastic Cushioning Rings / Plates At Both Ends |
| Mounting Position | Optional |
| Conforms To Standard | ISO 21287 |
| Position Detection | Via Proximity Switch |
| Mode Of Operation | Double-Acting |
| Operating Medium | Compressed Air |
| Operating Pressure | 0.6 Bar / 10 Bar |
| Ambient Temperature | -20 °C / 80 °C |
| Impact Energy In End Positions | 0.7 J |
| Theoretical Force At 0.6 MPa (6 Bar, 87 Psi), Return Stroke | 686 N |
| Theoretical Force At 0.6 MPa (6 Bar, 87 Psi), Advance Stroke | 754 N |
| Pneumatic Connection | G1/8 |
| Material, Cover | Anodised Wrought Aluminium Alloy |
