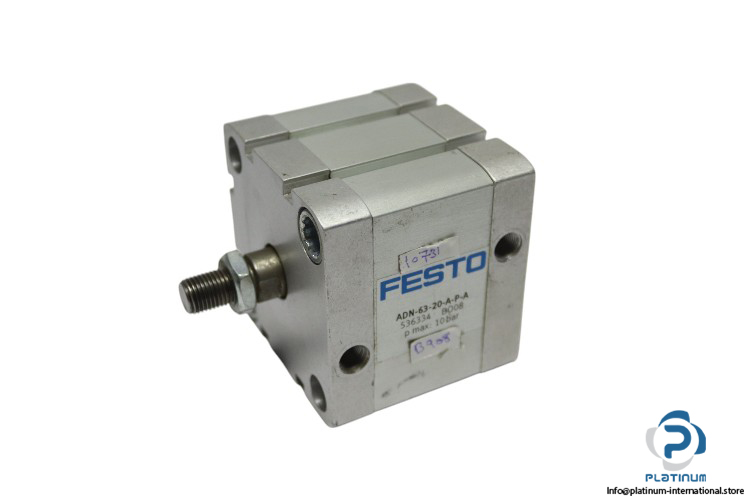

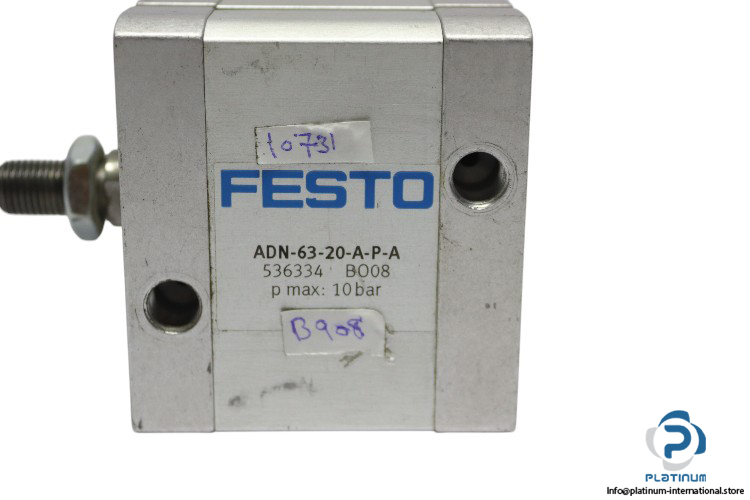

Festo 536334 Compact Cylinder
Used
In stock1 unitReady to ship
compact cylinder
The Festo Compact Cylinder ADN-63-20-A-P-A (Part No. 536334) features a 20 mm stroke length, 63 mm piston diameter, and operates at up to 10 bar, ideal for industrial motion control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO COMPACT CYLINDER
The Festo Compact Cylinder (Model: ADN-63-20-A-P-A, Part No.: 536334) is designed for high performance and durability in a wide range of industrial applications. It features a 20 mm stroke length, 63 mm piston diameter, and elastic cushioning rings for smooth operation. With a max. operating pressure of 10 bar and a pneumatic connection of G1/8, this cylinder is ideal for precise and reliable motion control.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADN-63-20-A-P-A
Part No.: 536334
Technical Specifications
- Stroke Length: 20 mm
- Piston Diameter: 63 mm
- Piston Rod Thread: Male
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 to 80 °C
