Festo 536343 Compact Cylinder
Used
In stock3 unitsReady to ship
Compact Cylinder
FESTO ADN-63-15-I-P-A Compact Cylinder is a high-performance pneumatic actuator with a 15 mm stroke length and 63 mm piston diameter. Designed for double-acting operation with elastic cushioning, it provides efficient motion control in compact industrial applications.1563ActingActuatorAutomationCompactconnectionCushioningCylinderdiameterDoubleElasticFestoforG1/8IndustrialmmPistonPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

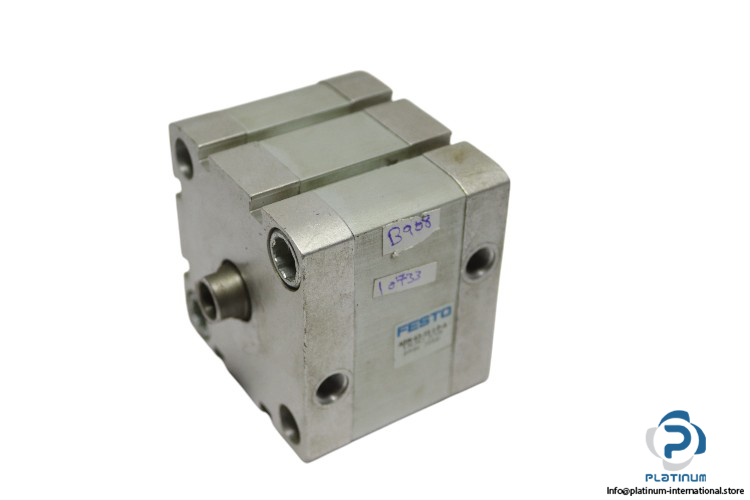

FESTO ADN-63-15-I-P-A Compact Cylinder
The FESTO ADN-63-15-I-P-A Compact Cylinder is a high-performance pneumatic actuator designed for space-saving applications. With a compact design and double-acting operation, it ensures efficient motion control with precise force distribution. Featuring elastic cushioning, proximity sensing compatibility, and a durable structure, it is ideal for industrial automation and motion control systems.
- Manufacturer: FESTO
- Type: Compact Cylinder
- Model: ADN-63-15-I-P-A
- Part No.: 536343
Technical Specifications
- Stroke Length: 15 mm
- Piston Diameter: 63 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double Acting
- Cushioning: Elastic Cushioning Rings/Pads at Both Ends
- Position Sensing: For Proximity Sensing
- Variant: Piston Rod at One End
- Pneumatic Connection: G1/8
- Temperature Range: -20 … 80 °C
