Festo 536357 Compact Cylinder
New
In stock1 unitReady to ship
compact cylinder
The Festo Compact Cylinder ADN-80-30-A-P-A (Part No. 536357) offers a 30 mm stroke length, 80 mm piston diameter, and 10 bar max pressure for reliable pneumatic control in industrial settings.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO COMPACT CYLINDER

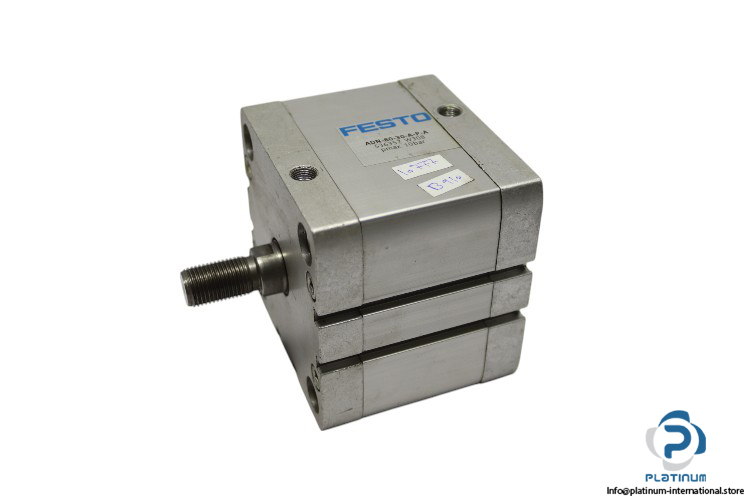

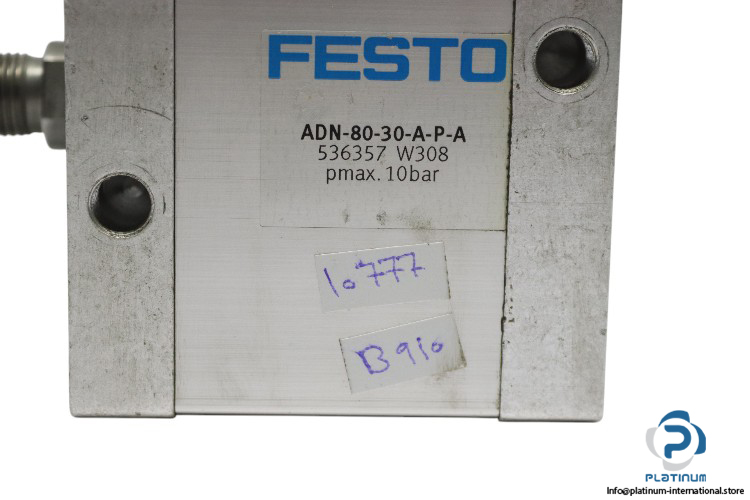

The Festo Compact Cylinder (Model: ADN-80-30-A-P-A, Part No. 536357) is designed for high-performance industrial applications, offering precise control and reliable movement. Featuring a stroke length of 30 mm, a piston diameter of 80 mm, and a maximum operating pressure of 10 bar, this compact cylinder ensures efficient pneumatic actuation with elastic cushioning and position sensing for enhanced functionality.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADN-80-30-A-P-A
Part No.: 536357
Technical Specifications
- Stroke Length: 30 mm
- Piston Diameter: 80 mm
- Piston Rod Thread: Male
- Material of Cylinder Barrel: Wrought aluminum alloy
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 to 80 °C
