Festo 536368 Compact Cylinder

FESTO COMPACT CYLINDER

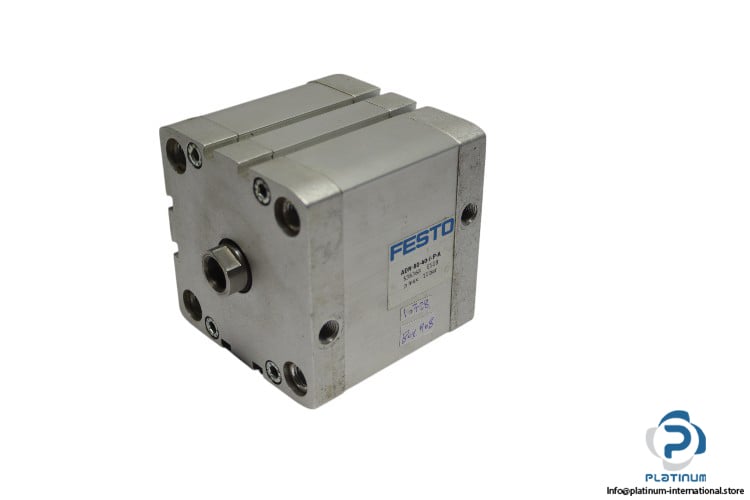

The FESTO Compact Cylinder (Model: ADN-80-40-I-P-A, Part No. 536368) is designed for high-performance industrial applications. With an 80 mm piston diameter and a 40 mm stroke length, this double-acting cylinder ensures efficient operation in a wide range of environments. It features elastic cushioning rings for shock absorption and is suitable for proximity sensing.

Manufacturer: FESTO

Type: Compact Cylinder

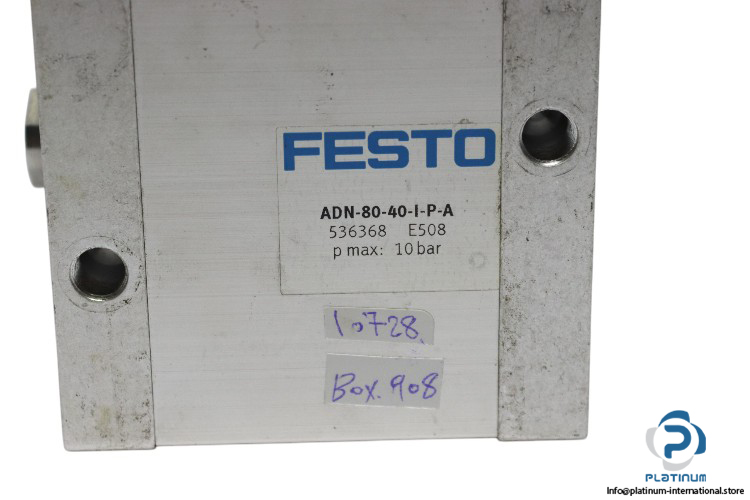

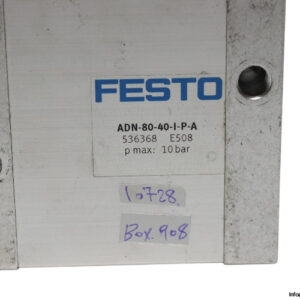

Model: ADN-80-40-I-P-A

Part No.: 536368

Technical Specifications

• Stroke Length: 40 mm
• Piston Diameter: 80 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Pneumatic Connection: G1/8
• Temperature: -20 … 80 °C
