Festo 538183 Hand Lever Valve
Used
In stock1 unitReady to ship
HAND LEVER VALVE
FESTO VHER-AH-M04C-G12-UD rotary slide valve with manual actuation, 4/3 function, and 4300 l/min flow rate for robust pneumatic control.4/3AirAluminiumCastControlDieFestoflowg1/2HandIndustrialLeverManualPneumaticRotarySlideValveVHER-AH-M04C-G12-UD
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

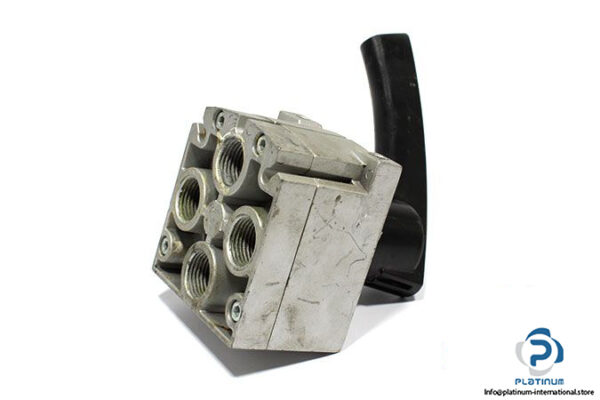

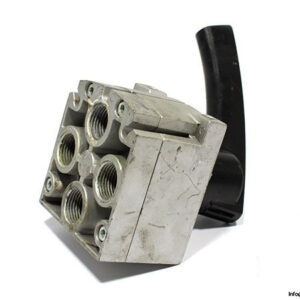

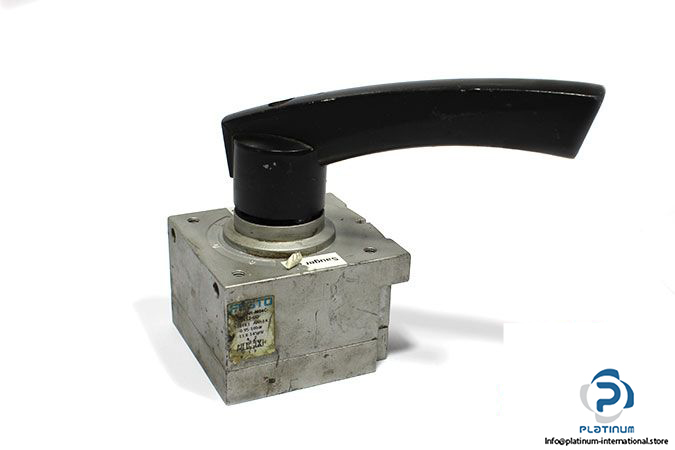

FESTO VHER-AH-M04C-G12-UD HAND LEVER VALVE
The FESTO VHER-AH-M04C-G12-UD is a manually actuated 4/3 rotary slide valve designed for high-efficiency pneumatic control. With robust aluminium die-cast construction, it ensures reliable operation across demanding environments.
Manufacturer: FESTO
Type: Hand Lever Valve
Model: VHER-AH-M04C-G12-UD
Part No.: 538183
| Fluid | Air |
| Design | Rotary Slide Valve |
| Function | 4/3 Closed |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 to 10 bar |
| Nominal Flow Rate | 4300 l/min |
| Pneumatic Connection | G1/2 |
| Material | Aluminium Die Cast |
| Ambient Temperature | -20 to 80 °C |
