Festo 539159 Single Solenoid Valve
New
In stock1 unitReady to ship

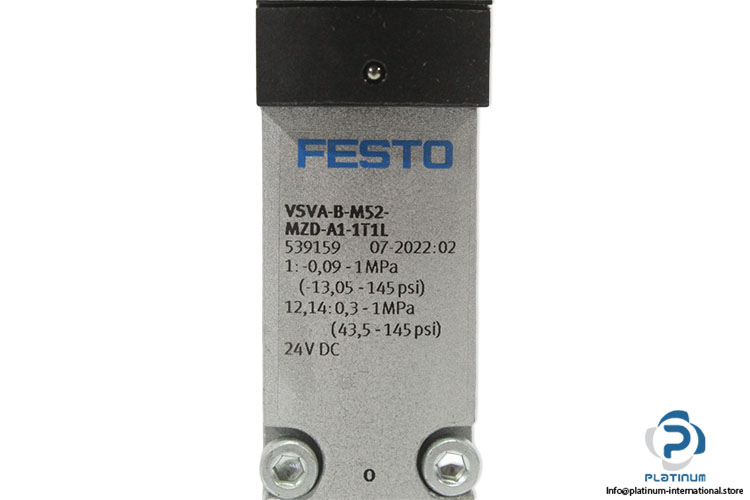

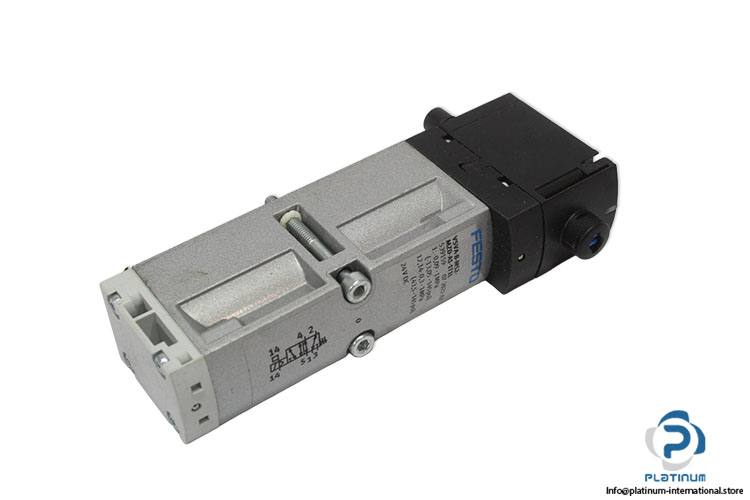

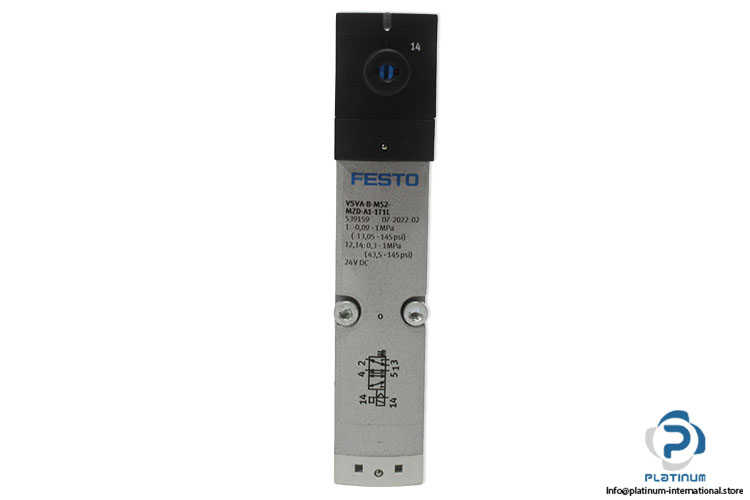

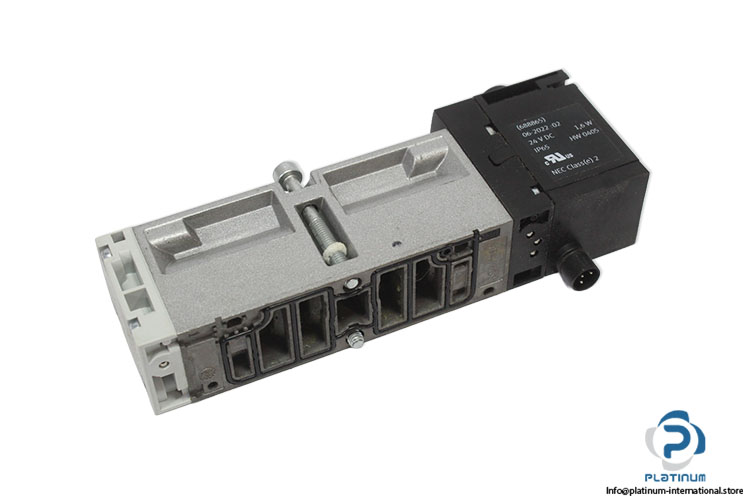

Single Solenoid Valve FESTO VSVA-B-M52-MZD-A1-1T1L 5/2-way single solenoid valve with 1100 l/min flow rate, electrically actuated piston gate design, and IP65 protection. Supplied with FESTO 688865 24 V DC solenoid coil.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 539159 |
| Fluid | Air |
| Function | 5/2-Way, Single Solenoid |
| Construction Width | 26 mm |
| Design | Piston Gate Valve |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 ... 10 bar/ -0.09 ... 1 MPa |
| Nominal Flow Rate | 1100 l/min |
| Electrical Connection | Plug-In |
| Pneumatic Connection | Sub-Base Size 26 mm |
| Material | Die-Cast Aluminium |
| Protection Class | IP65 |
| Ambient Temperature | -5 … 60 °C |

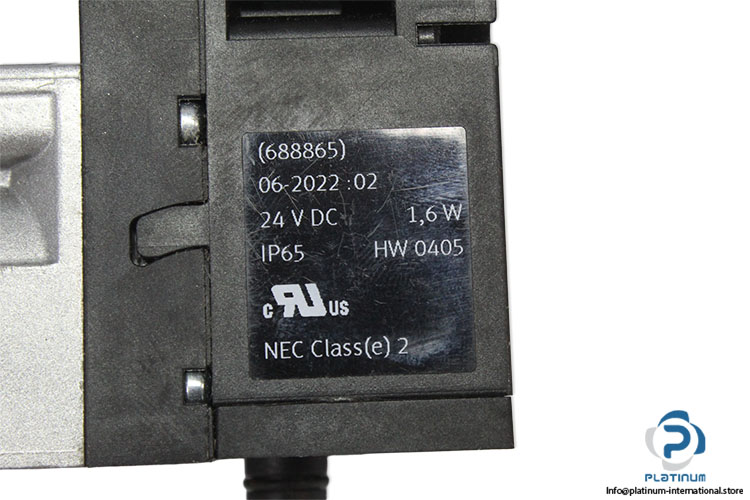

| Attachment | FESTO 688865 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment Type | Solenoid Coil |
| Solenoid Coil Part No. | 688865 |
| Solenoid Coil Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 1.6 W |
| Solenoid Coil Protection Class | IP65 |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102323 |
| Weight | 0,26 |
