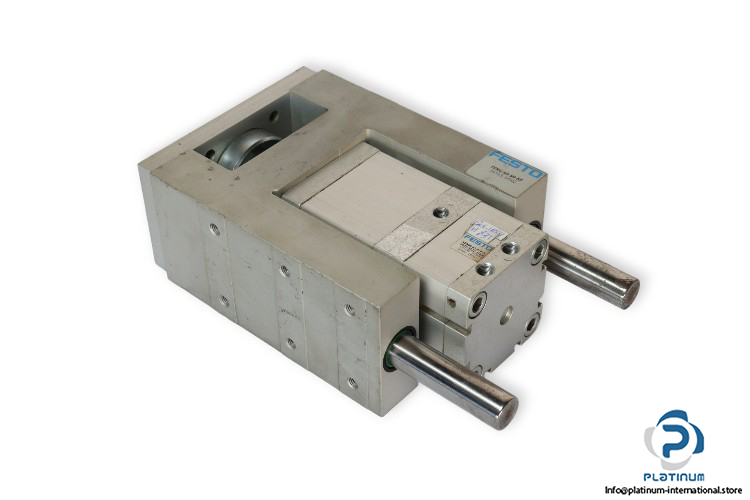

Festo 539697 Multi Stage Pneumatic Cylinder

Manufacturer: FESTO
Type: Multi stage pneumatic cylinder

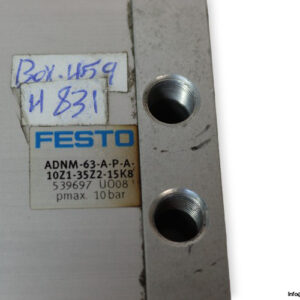

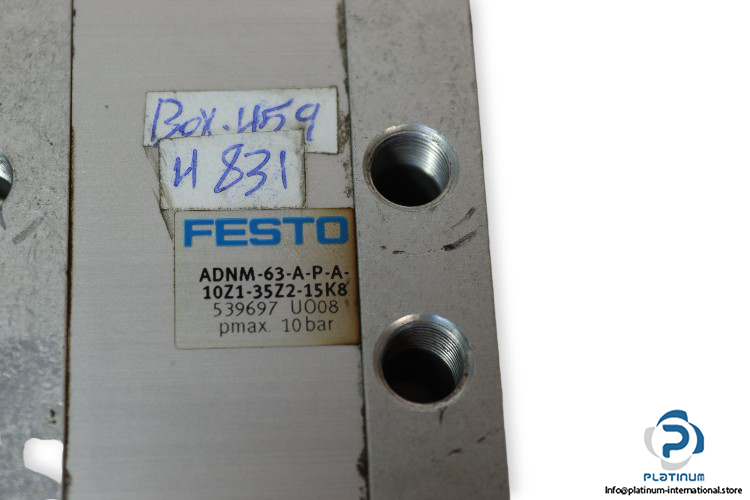

Model: ADNM-63-A-P-A-10Z1-35Z2-15K8
Part No.: 539697

Stroke Length ( 1 ): 10 mm
Stroke Length ( 2 ): 35 mm
Piston Diameter: 63 mm
Cushioning: Elastic cushioning rings/pads at both ends
Structural design: Piston,Piston rod, Profile barrel
Max. number of intermediate positions: 5
Max. total of all individual strokes: 2000 mm
Position sensing: For proximity sensor
Mode of operation: Double-acting
Pneumatic connection: G1/8

Attachment: FESTO 34513 GUIDE UNIT
Manufacturer: FESTO
Type: Guide unit

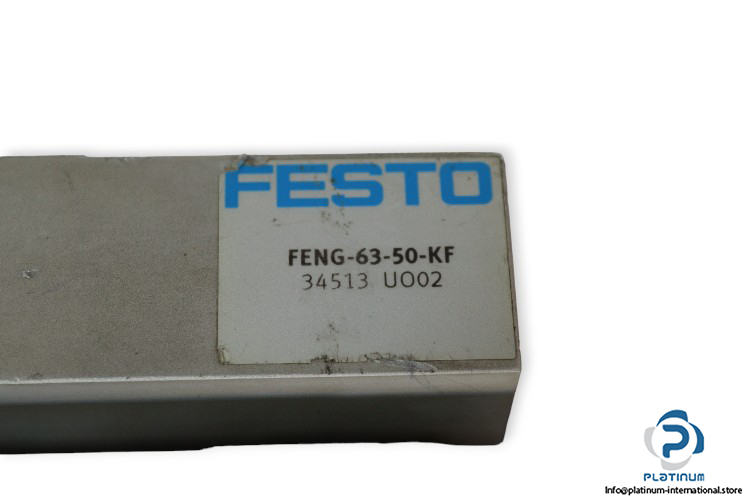

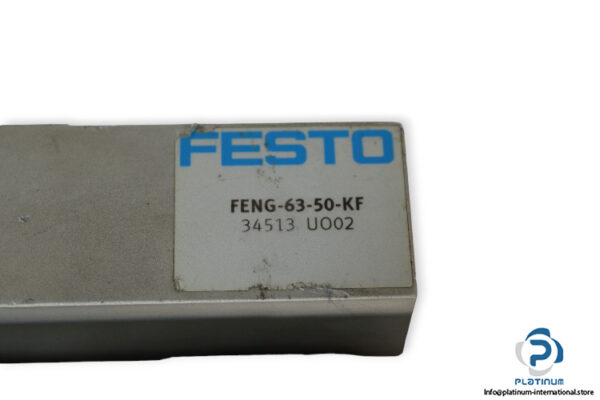

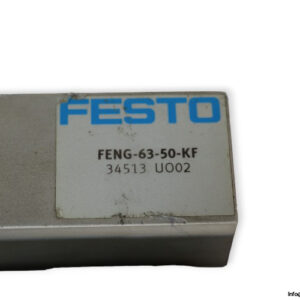

Model: FENG-63-50-KF
Part No.: 34513

Size: 63
Stroke: 50 mm
Guide: Recirculating ball bearing guide
Structural design: Guide
Ambient temperature: –20 °C … 80 °C
Max. force Fy: 1260 N
