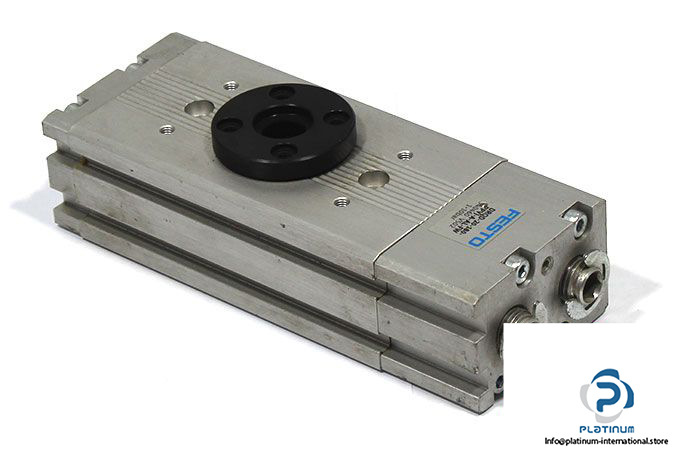

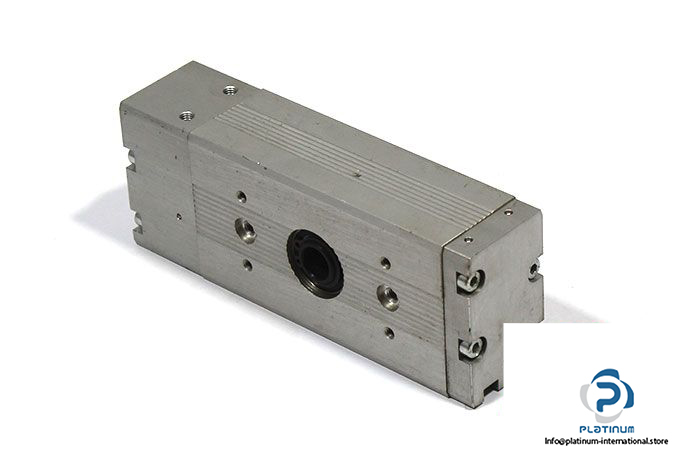

Festo 540460 Semi-Rotary Drive

Manufacturer: Festo

Type: Semi-Rotary Drive

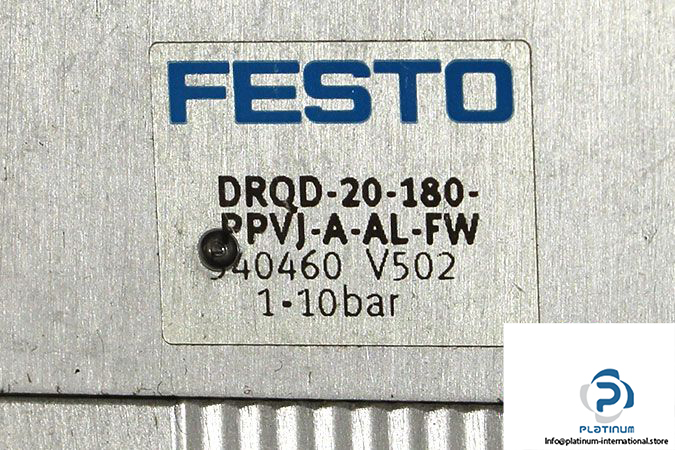

Model: DRQD-20-180-PPVJ-A-AL-FW

Alternative Model: DRQD-B-20-180-PPVJ-A-AL-FW

Part No.: 540460

Alternative Part No: 563342

Size: 20

Rotation Angle Adjustment Range: -20…6 deg

Swivel Angle: 180 deg

Operating Pressure: 1…10 bar

Fluid: Air

Design: Rotary and Pinion

Torque At 6 bar: 1.6…1.7 Nm

Pneumatic Connection: M5

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 0.85 kg
