Festo 540869 Three-Point Gripper
Used
In stock1 unitReady to ship
Three-Point Gripper
The Festo HGDT-50-A-G1 gripper features three jaws, an 8 mm stroke per jaw, and a high gripping force of 1500 N, providing reliable precision for automation applications.Automationdouble-actingFestoGripperhandlingHGDT-50-A-G1high-forceIndustrialPneumaticPrecisionstainlessSteelthree-point
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

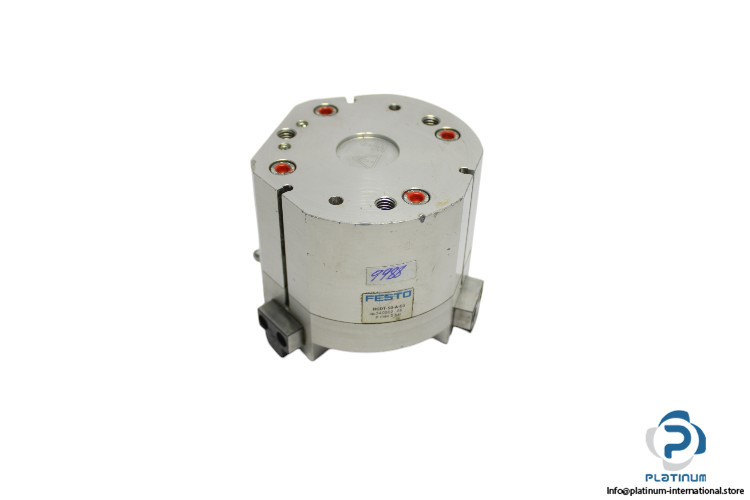

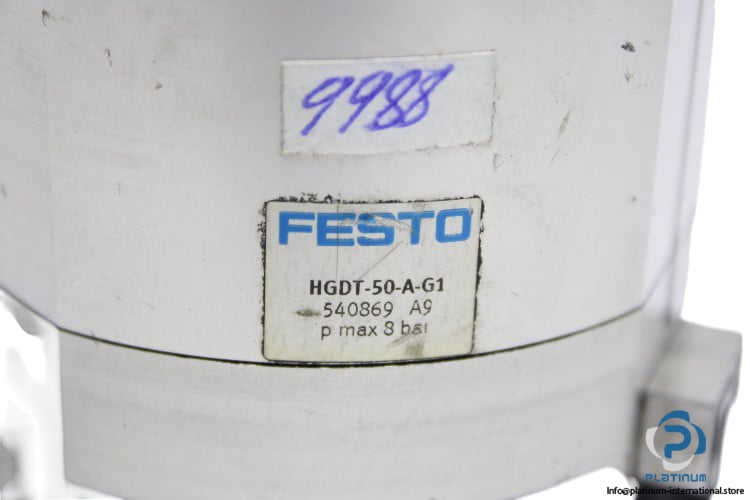

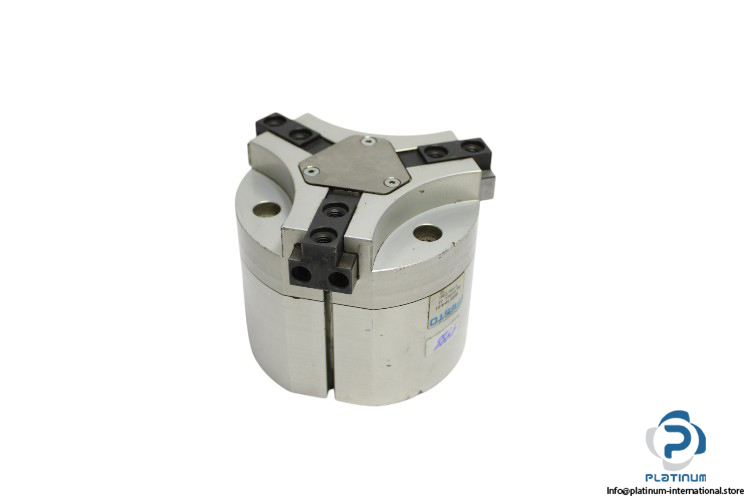

Festo HGDT-50-A-G1 Three-Point Gripper
The Festo HGDT-50-A-G1 Three-Point Gripper is designed for precision gripping applications, ensuring reliable and secure handling of components. With a robust stainless-steel construction and double-acting operation, this gripper delivers high performance in industrial automation.
Manufacturer: Festo
Type: THREE-POINT GRIPPER
Model: HGDT-50-A-G1
Part No.: 540869
This three-point gripper is built for high precision and durability, ensuring effective gripping solutions for various automation and industrial handling applications.
| Size | 50 |
| Operating Pressure Range | 4 to 8 bar |
| Ambient Temperature Range | 5 to 60 °C |
| Stroke per Gripper Jaw | 8 mm |
| Number of Gripper Jaws | 3 |
| Mode of Operation | Double-acting |
| Maximum Force on Gripper Jaw Fz (Static) | 1500 N |
| Sealing Air Pneumatic Connection | M5 |
| Pneumatic Connection | G1/8 |
| Cover Cap Material | High-alloy stainless steel |
| Maximum Pressure | 8 bar |
