Festo 542221 Pressure Regulator
New
Available on request
Proportional Pressure Regulator
The FESTO VPPM-6TA-L-1-F-0L6H is an electric 3-way proportional pressure regulator with LED display, 24 V AC/DC operation, 0.006 to 0.6 MPa pressure range, and IP65 protection for precise air control.243900Ac/DcComponentElectricFestoIndustrialIP65LMinperPneumaticPressureProportionalregulatorSeriesVVppmVPPM-6TA-L-1-F-0L6HWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

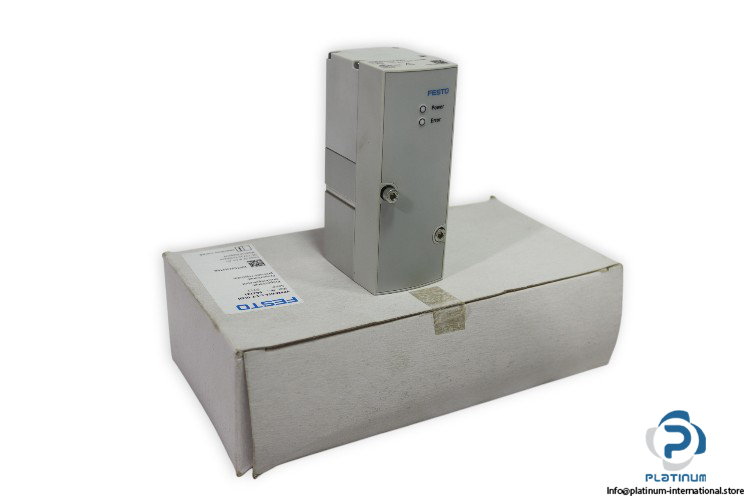

FESTO VPPM-6TA-L-1-F-0L6H Proportional Pressure Regulator
The FESTO VPPM-6TA-L-1-F-0L6H Proportional Pressure Regulator is an advanced piloted diaphragm regulator designed for precise and dynamic pressure control in pneumatic systems. With an electric actuation design and integrated LED display, it provides highly accurate regulation and stable performance under varying load conditions.
Manufacturer: FESTO
Type: Proportional Pressure Regulator

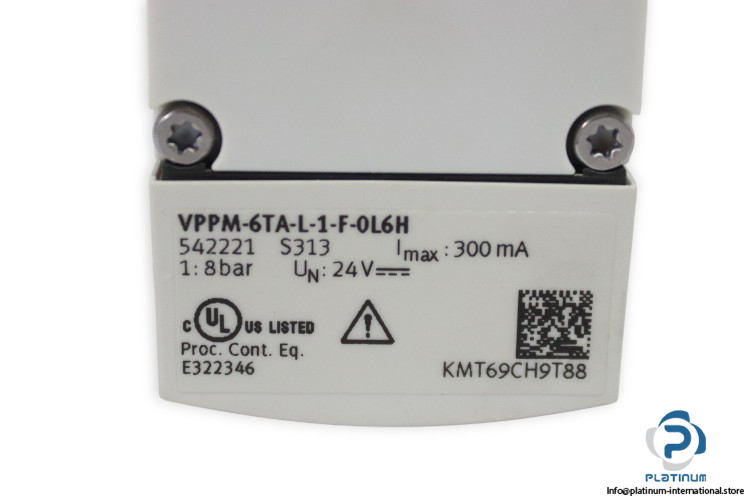

Model: VPPM-6TA-L-1-F-0L6H

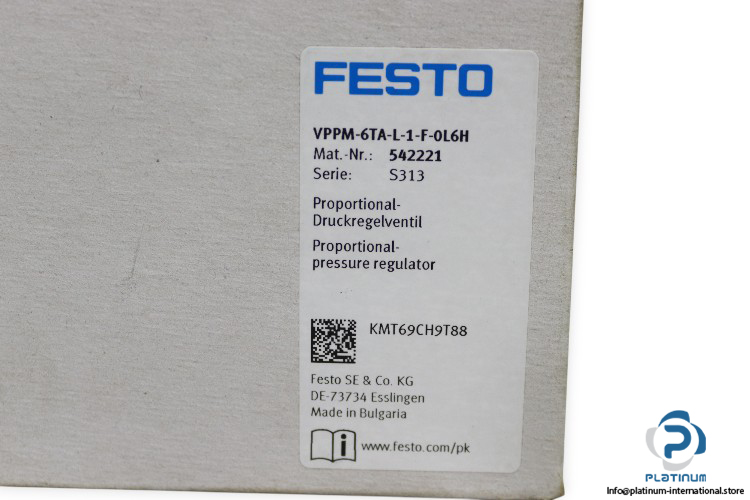

Part No.: 542221
Series: S313
| Nominal Size, Supply | 6 mm |
| Nominal Size, Exhaust | 4.5 mm |
| Type of Actuation | Electric |
| Sealing Principle | Soft |
| Mounting Position | Optional |
| Design | Piloted diaphragm regulator |
| Short Circuit Current Rating | For all electrical connections |
| Safety Instructions | Safety position VPPM “ if the power supply cable is interrupted, output pressure is maintained unregulated |
| Symbol | 00995303 |
| Reverse Polarity Protection | For all electrical connections |
| Type of Reset | Mechanical spring |
| Type of Piloting | Pilot actuated |
| Valve Function | 3-way proportional pressure regulator |

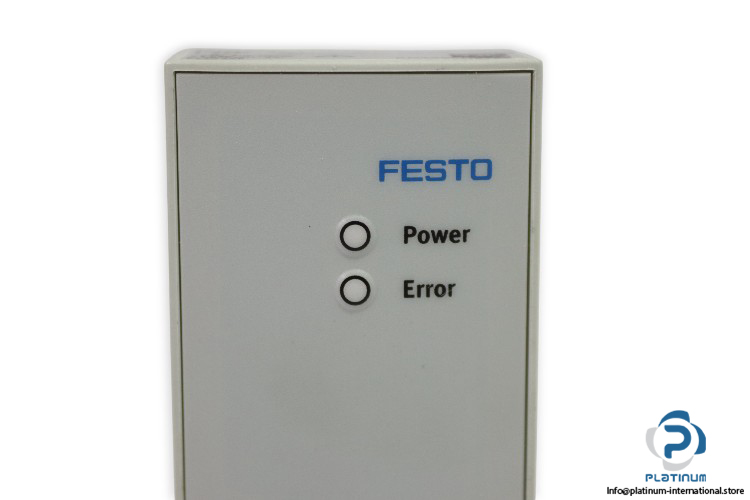

| Display Type | LED |
| Pressure Regulation Range | 0.006 MPa to 0.6 MPa |
| Pressure Regulation Range | 0.06 bar to 6 bar |
| Inlet Pressure 1 | 0 bar to 8 bar |
| Inlet Pressure 1 | 0 MPa to 0.8 MPa |
| Maximum Pressure Hysteresis | 0.03 bar |
| Standard Nominal Flow Rate | 900 liters per minute (DIN 1343) |
| Operational Voltage Range DC | 24 V AC/DC |
| Maximum Current Consumption | 300 mA |
| Duty Cycle | 100 percent |
| Maximum Electrical Power Consumption | 7 W |
| Residual Ripple | 10 percent |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Degree of Protection | IP65 |
| Ambient Temperature | 0 to 60 degree Celsius |

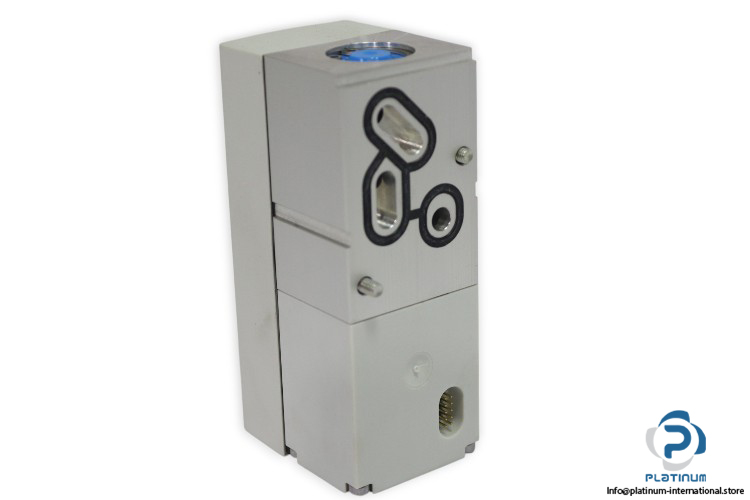

| Pneumatic Connection | Sub base |
| Material Housing | Wrought aluminium alloy anodised |
