Pneumatic System Air Preparation Equipment

Festo 542578 Shut OFF Valve

Name: FESTO 542578 SHUT OFF VALVE
SKU: 1041512
Availability: LimitedAvailability

New

In stock2 unitsReady to ship

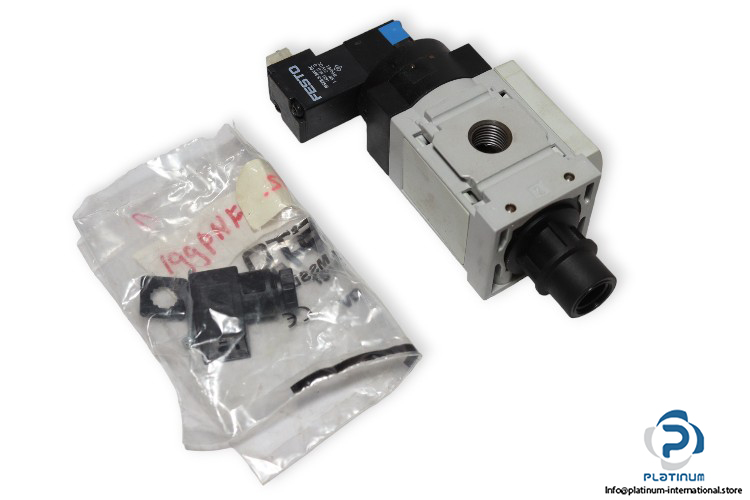

ON/OFF VALVE WITH SOLENOID COIL

FESTO MS4-EE-1/4-10V24 ON/OFF Valve provides 3/2-way control of compressed air with electric actuation and 2000 l/min flow rate. Includes MSCH-3/2-24V DC solenoid coil for responsive and reliable operation.

SKU

1041512

FESTO MS4-EE-1/4-10V24 ON/OFF VALVE WITH SOLENOID COIL

The FESTO MS4EE1410V24 ON/OFF Valve is designed for precise control of compressed air and inert gases in pneumatic systems. With a 3/2-way closed, monostable function and electrical actuation, it provides reliable operation across a wide pressure range. This valve is constructed from durable die-cast aluminum and includes a FESTO solenoid coil for efficient and responsive performance.

Manufacturer: FESTO

Type: ON/OFF Valve

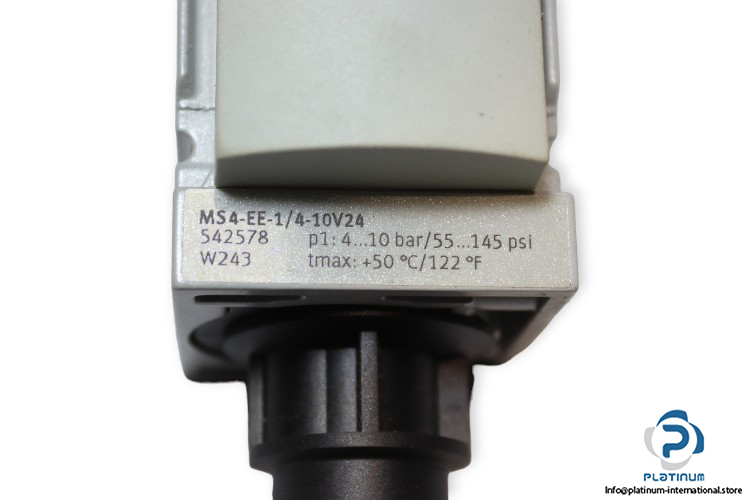

Model: MS4-EE-1/4-10V24

Part No.: 542578

Fluid: Compressed Air, Inert Gas

Valve Function: 3/2 Way, Closed, Monostable

Type of Actuation: Electrically

Operating Pressure: 4 / 10 bar / 55 / 145 PSI

Flow Rate: 2000 l/min

Material: Die-Cast Aluminum

Pneumatic Connection: G 1/4

Attachment:

Manufacturer: FESTO

Type: Solenoid Coil

Model: MSCH-3/2-24V DC

Part No.: 690 892

Supply Voltage: 24 V DC

Power Consumption: 2.5 W

Protection Class: IP00/65
