Festo 543701 AIR Solenoid Valve
Used
In stock1 unitReady to ship
AIR SOLENOID VALVE
FESTO VSVA-B-P53E-ZD-D1-1T1L 5/3 exhausted solenoid valve with 24V DC electrical actuation, designed for high flow pneumatic systems up to 1200 l/min.24v5/3AirAutomationdcExhaustedFestoflowGateHighPistonPneumaticsolenoidSub-BaseValveVSVA-B-P53E-ZD-D1-1T1L
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

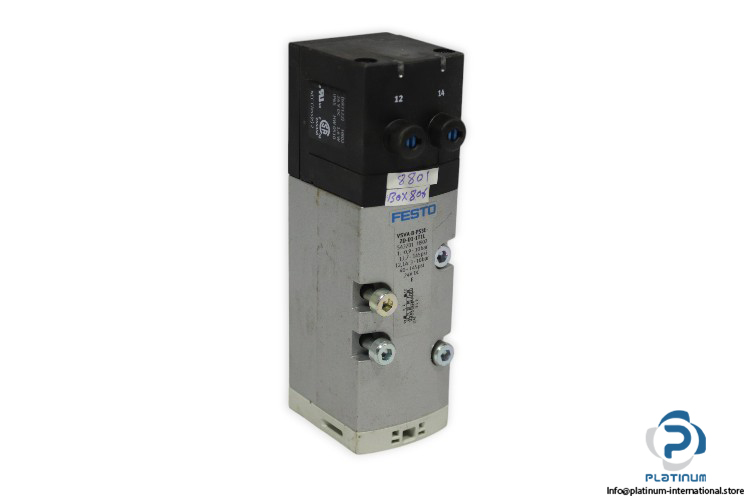

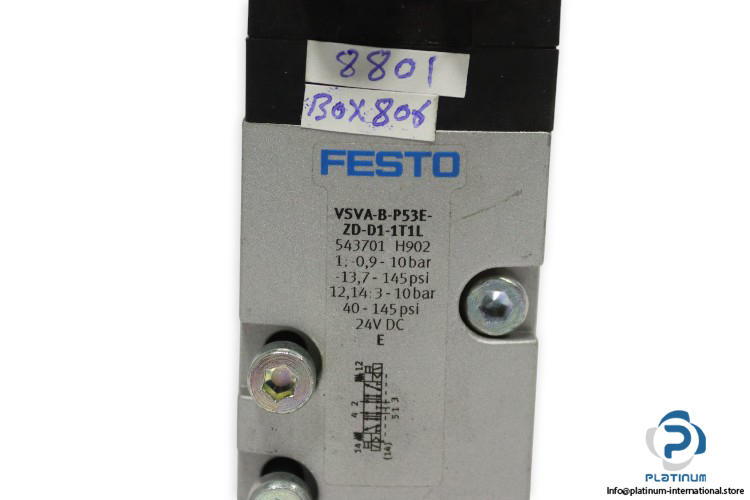

FESTO VSVA-B-P53E-ZD-D1-1T1L AIR SOLENOID VALVE
The FESTO VSVA-B-P53E-ZD-D1-1T1L is a high-performance air solenoid valve designed for precise pneumatic control in automated systems. Built with durable materials and optimized for flow and reliability, it features a 5/3 exhausted function and electrically actuated operation, making it ideal for complex pneumatic applications.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-P53E-ZD-D1-1T1L
Part No.: 543701
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/3 exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 3 to 10 bar |
| Nominal Flow Rate | 1200 l/min |
| Supply Voltage | 24 V DC |
| Pneumatic Connection | Sub-base size 1 |
| Material | Die-cast aluminum / PA |
| Ambient Temperature | -5 to 50 °C |
