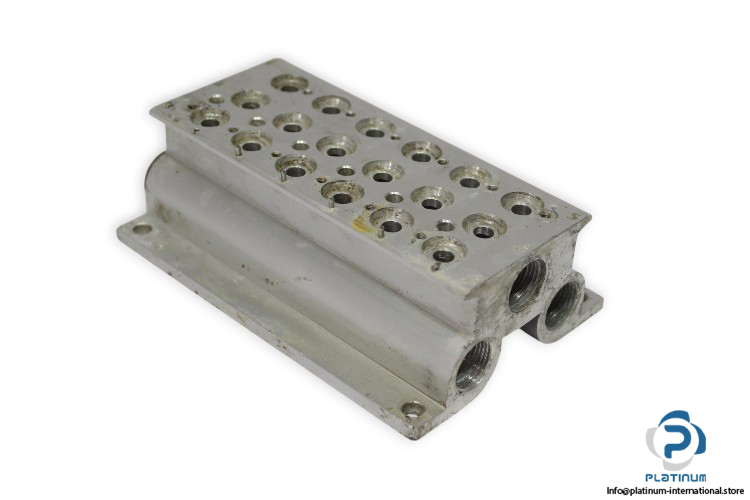

Festo 543834 Manifold Block
Used
In stock1 unitReady to ship
MANIFOLD BLOCK
Durable Festo manifold block with 6 valve positions and 2 pressure zones. Built from aluminum alloy, designed for efficient pneumatic distribution under up to 50 bar burst pressure.5438346AluminumAutomationBaseBlockCPE14-PRS-3/8-6DistributionFestoG3/8IndustrialManifoldpartsPneumaticPneumaticsPositionPressureValvewroughtZone
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

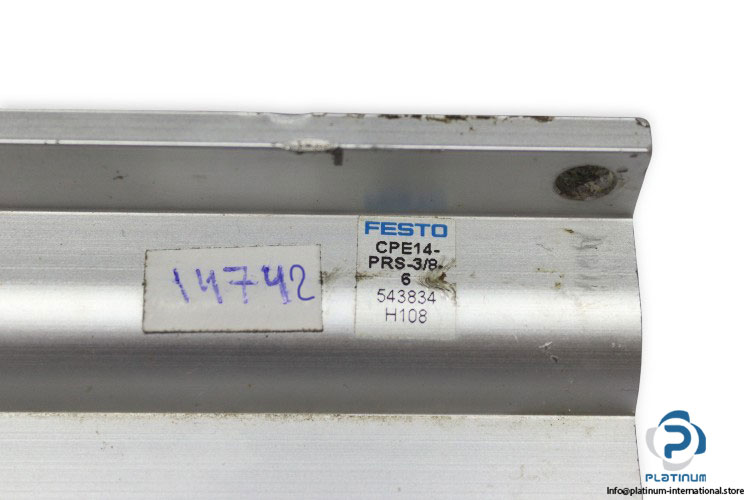

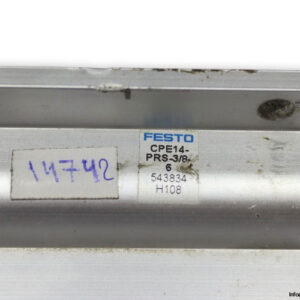

FESTO CPE14-PRS-3/8-6 MANIFOLD BLOCK
High-performance manifold block from Festo, designed to optimize pneumatic valve systems with multiple positions and pressure zones. Built with a robust wrought aluminum alloy body, it provides durability, high burst resistance, and efficient air distribution in automation systems.
Manufacturer: Festo
Type: Manifold Block
Model: CPE14-PRS-3/8-6
Part No.: 543834
Series: H108
| Width | 20 mm |
| Valve Positions (Max.) | 6 |
| Pressure Zones (Max.) | 2 |
| Operating Pressure | -0.9 to 10 bar |
| Burst Pressure | 50 bar |
| Pneumatic Connection | G3/8 |
| Media & Ambient Temperature | -5 to 50 °C |
| Material (Manifold Rail) | Wrought Aluminum Alloy |
| Max. Tightening Torque (Valve Mounting) | 1.2 Nm |
