Festo 543973 Mini Slide
Used
In stock1 unitReady to ship
Mini Slide
The Festo DGSL-12-50-P1A mini slide features a 16mm piston diameter, 50mm stroke, and 121N force at 6 bar. Designed for precision movement with elastic cushioning, it operates with compressed air and has a maximum speed of 0.8 m/s.ActuatorActuatorsAdjustableAirBallbearingCageCompresseddouble-actingFestoGuideMiniPneumaticPositioningSlideStrokeSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

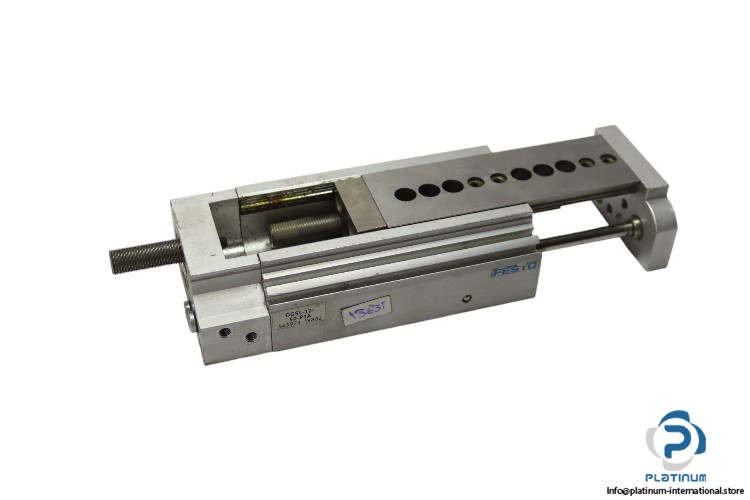

Festo DGSL-12-50-P1A Mini Slide
The Festo DGSL-12-50-P1A mini slide is a compact and versatile actuator designed for precise movement and positioning. Equipped with ball bearing cage guides and elastic cushioning, it provides smooth and reliable performance, ideal for applications requiring adjustable stroke lengths and high-speed operation.
Manufacturer: FESTO
Type: Mini Slide

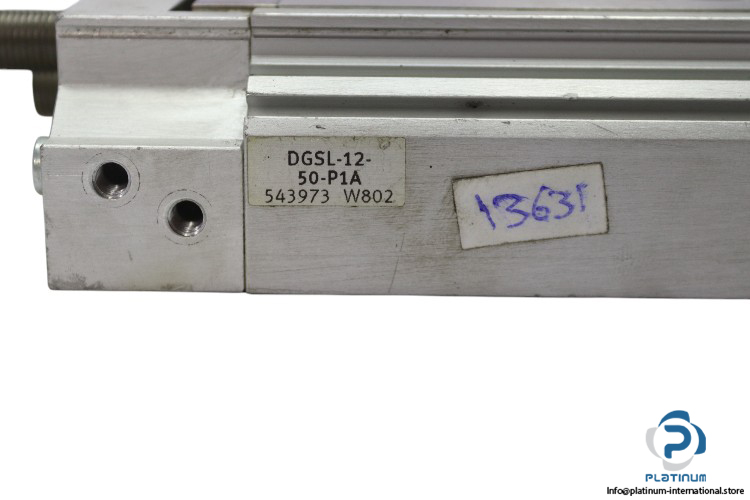

Model: DGSL-12-50-P1A
Part No.: 543973
Technical Data:
- Piston Diameter: 16 mm
- Theoretical Force at 6 bar, Advancing: 121 N
- Stroke: 50 mm
- Cushioning: Elastic cushioning rings/pads at both ends with fixed stop
- Position Sensing: For proximity sensor
- Adjustable End-Position Range/Front Length: 29 mm
- Adjustable End-Position Range/Rear Length: 25.5 mm
- Guide: Ball bearing cage guide
- Operating Pressure: 1 bar … 8 bar
- Max. Speed: 0.8 m/s
- Mode of Operation: Double-acting
- Operating Medium: Compressed air
- Housing Material: Wrought aluminum alloy
- Pneumatic Connection: M5
