In stock1 unitReady to ship
Manufacturer:
FESTO
Type:
Mini slide
Model:
DGSL-12-150-P1A
Part No.:
543976
SKU
1040302
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

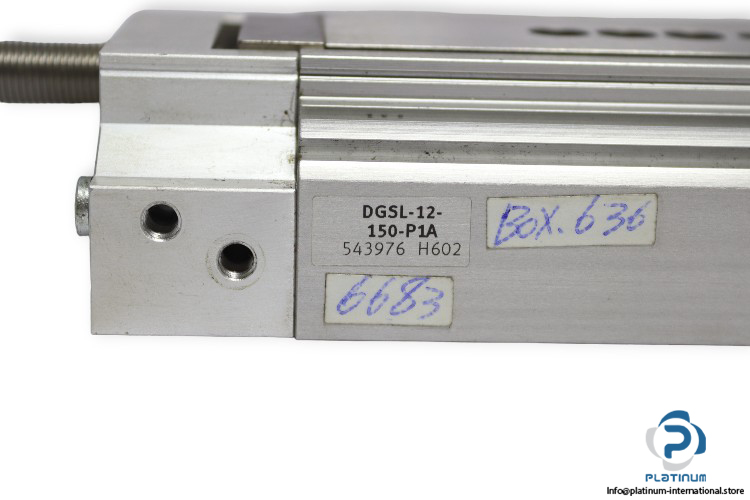

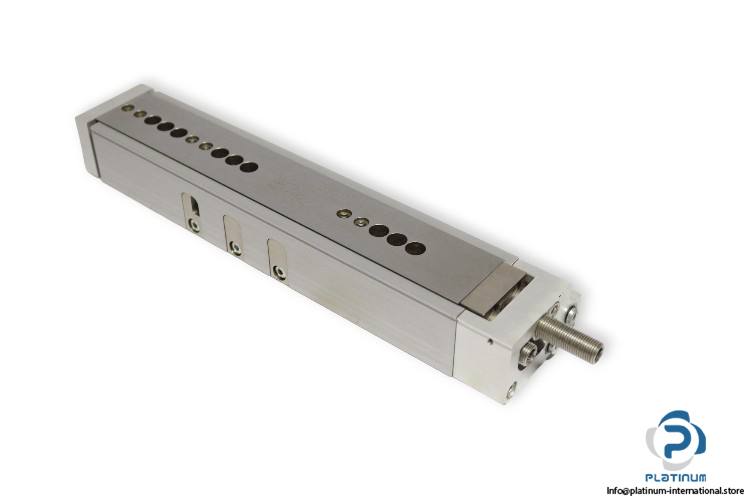

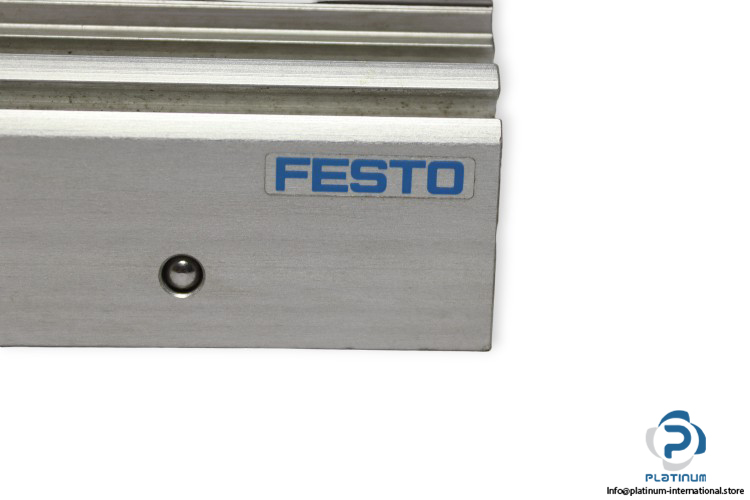

Manufacturer: FESTO
Type:
Mini slide
Model:
DGSL-12-150-P1A
Part No.: 543976

Stroke:
150 mm
Adjustable end-position range/front length: 87 mm
Adjustable end-position range/rear length; 25.5 mm
Piston diameter: 16 mm
Cushioning: Elastic cushioning rings/pads at both ends with fixed stop
Guide: Ball bearing cage guide
Position sensing: For proximity sensor
Operating pressure: 1 bar … 8 bar
Max. speed: 0.8 m/s
Repetition accuracy: ±0.01 mm
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic connection: M5
Cover material: Wrought aluminum alloy
