Festo 544007 Mini Slide
Used
In stock1 unitReady to ship
Mini Slide
The Festo DGSL-20-30-PA Mini Slide features a 20 mm size, 25 mm piston diameter, and 30 mm stroke with double-acting operation and ball bearing cage guide for precise motion control in pneumatic systems.20ActingActuatorAlloyAluminumBallbearingCageconnectionsDGSL-20-30-PADoubleFestoGuideLinearMinimmPneumaticPrecisionSizeSlidewrought
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

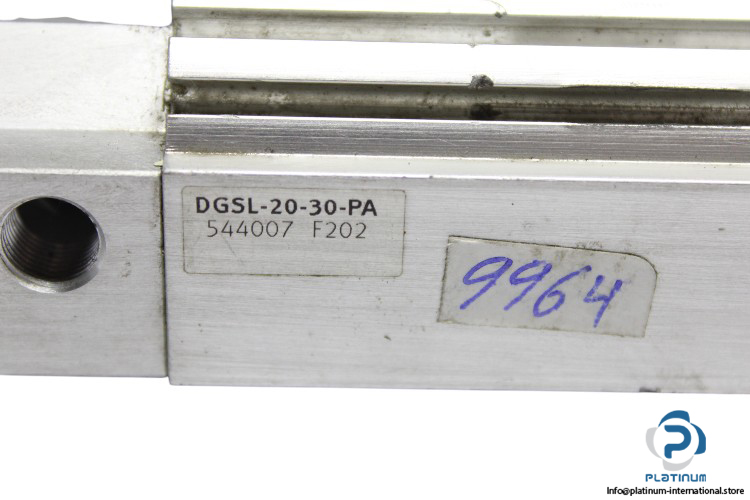

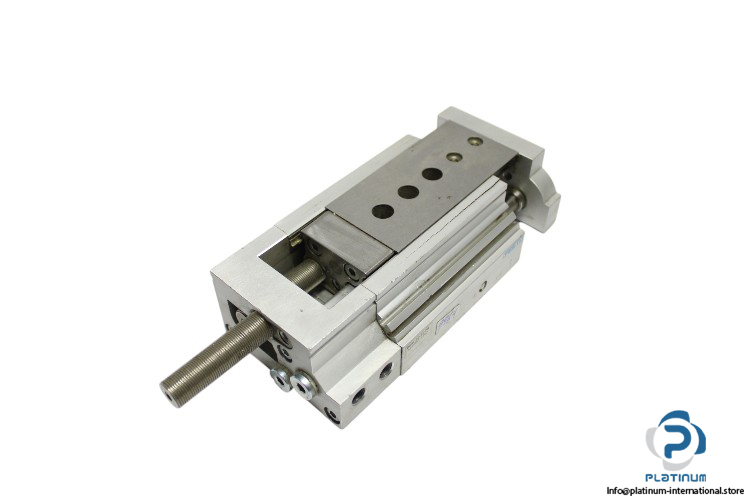

Festo DGSL-20-30-PA Mini Slide
The Festo DGSL-20-30-PA Mini Slide is a high-performance linear actuator designed for precision motion control. With its compact size and reliable ball bearing cage guide, this mini slide offers smooth operation in various industrial applications.
Manufacturer: Festo
Type: MINI SLIDE
Model: DGSL-20-30-PA
Part No.: 544007
This mini slide is designed for use in tight spaces, providing excellent stability and precision. It is ideal for applications requiring smooth motion and durability in various pneumatic systems.
| Operating Pressure | 1 to 8 bar |
| Size | 20 mm |
| Piston Diameter | 25 mm |
| Stroke | 30 mm |
| Fluid | Air |
| Guide | Ball Bearing Cage Guide |
| Design | Yoke, Piston, Piston Rod, Slide |
| Position Sensing | For Proximity Sensor |
| Mode of Operation | Double Acting |
| Ambient Temperature | 0 to 60 °C |
| Pneumatic Connections | G1/8 |
| Cover Material | Wrought aluminum alloy |
