Festo 546425 Basic Valve
Used
In stock1 unitReady to ship
BASIC VALVE WITH AIR LINE LUBRICATOR
FESTO LFR-D-MIDI basic valve with LOE-D-MIDI lubricator delivers efficient air flow regulation and lubrication in pneumatic systems.AirBasicComponentsCompressedFestofilterG1/4IndustrialLFR-D-MidiLineLOE-D-MidiLubricatorMidiPneumaticregulatorSizeValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

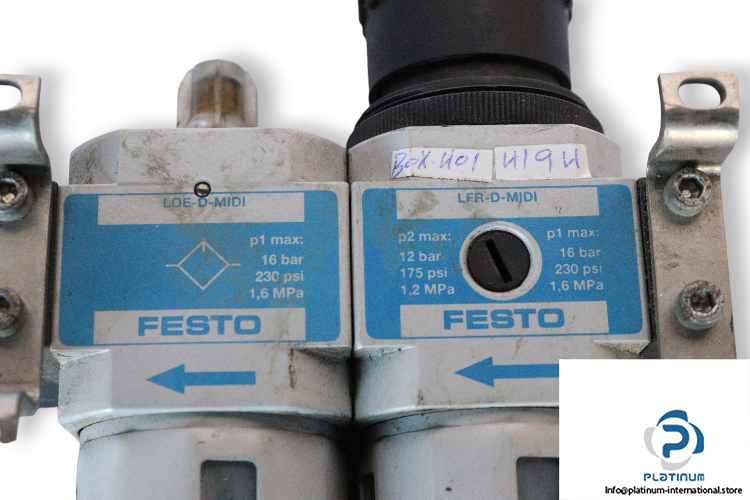

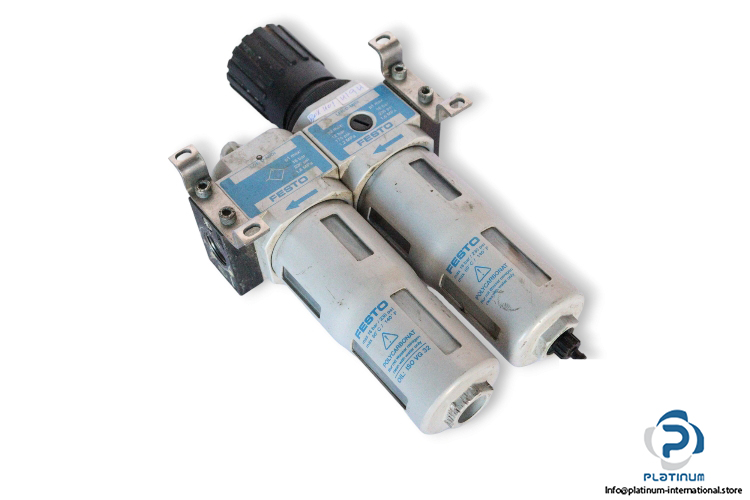

FESTO LFR-D-MIDI BASIC VALVE WITH AIR LINE LUBRICATOR
The FESTO LFR-D-MIDI is a compact and efficient basic valve designed for compressed air systems. Featuring a filter regulator without a pressure gauge, this unit offers precise control, long service life, and reliable performance. It is paired with the FESTO LOE-D-MIDI air line lubricator to ensure consistent lubrication and smooth operation in pneumatic applications.
Manufacturer: FESTO
Type: Basic Valve
Model: LFR-D-MIDI
Part No.: 546425
Lubricator Technical Information
| Size | Midi |
| Operating Medium | Compressed air |
| Structural Design | Filter regulator without pressure gauge |
| Actuator Lock | Rotary knob with detent |
| Pressure Regulation Range | 0.5 ... 12 bar |
| Operating Pressure | 1 / 16 bar |
| Standard Nominal Flow Rate | 487 cfm |
| Grade of Filtration | 40 micron |
| Port Size | G1/4 |
| Housing Material | Die-cast zinc |
| Attachment | FESTO 192576 AIR LINE LUBRICATOR |
| Part No. | 192576 |
| Size | Midi |
| Operating Pressure | 0 / 16 bar |
| Minimum Flow Rate for Lubricator Function | 8 l/min |
| Ambient Temperature | -10 ... 60 °C |
