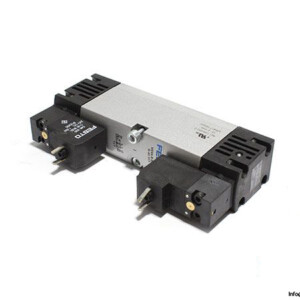

Festo 546696 Double Solenoid Valve

FESTO VSVA-B-B52-H-A1-1C1 DOUBLE SOLENOID VALVE WITH COIL

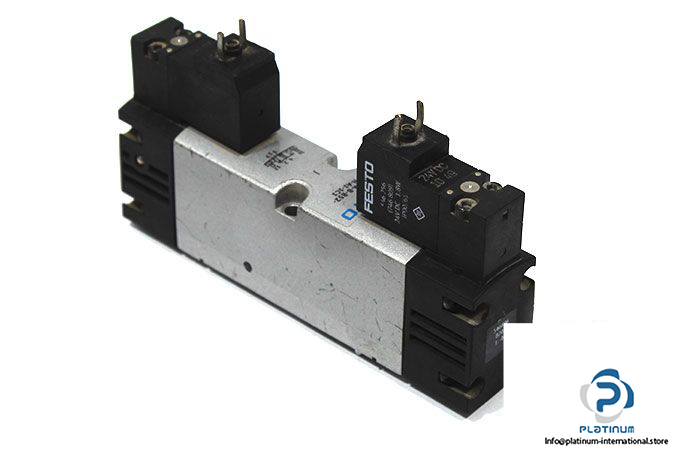

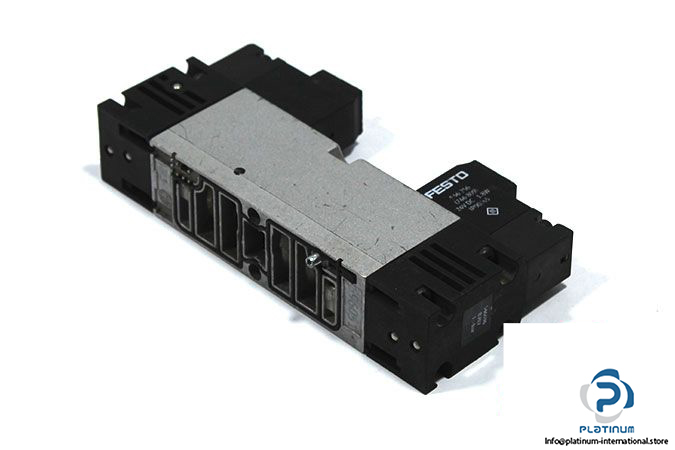

The FESTO VSVA-B-B52-H-A1-1C1 is a high-performance 5/2 double solenoid valve, engineered for advanced pneumatic control in industrial environments. With a rugged piston gate design and sub-base mounting, it offers high reliability and a nominal flow rate of 1100 l/min. This valve comes equipped with the FESTO 546256 solenoid coil for precise electrical actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve

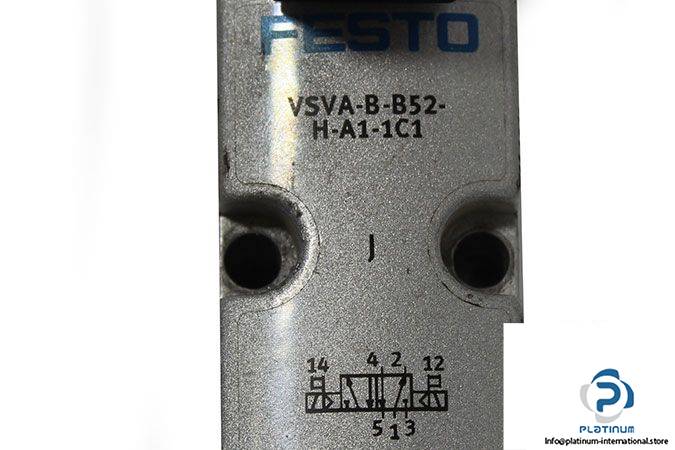

Model: VSVA-B-B52-H-A1-1C1
Part No.: 546696

Valve Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2 double solenoid
• Type of Actuation: Electrically
• Operating Pressure: 2 … 10 bar
• Pilot Pressure: 3 … 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: Sub-base size 26 mm
• Material: Die-cast aluminum
• Ambient Temperature: -5 / 50 °C

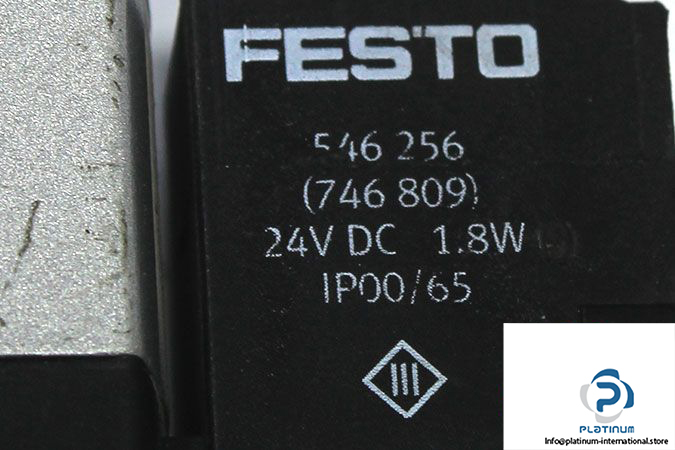

Solenoid Coil Attachment: FESTO 546256

Manufacturer: FESTO
Type: Solenoid Coil
Model: 546256 / 746809

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.8 W
• Protection Class: IP65
