Festo 547582 Semi Rotary Drive
Used
In stock1 unitReady to ship
Semi-Rotary Drive
The Festo DSM-32-270-P-A-B Semi Rotary Drive offers 0“270° adjustable rotation, double-acting operation, and reliable performance for compressed air systems with G 1/8 connection.1/41/810270°ActuatorAirAngleAutomationbarComponentCompressedCushioningdouble-actingDriveDSM-32-270-P-A-BFestoGPneumaticPortRotaryrotationSemi-Rotary
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

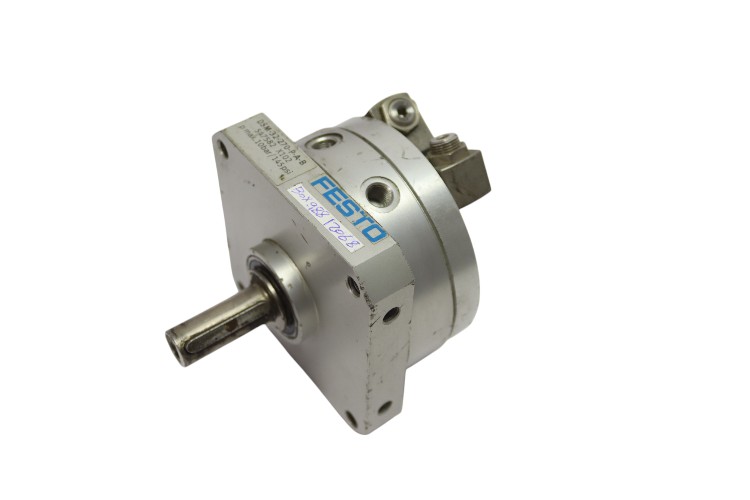

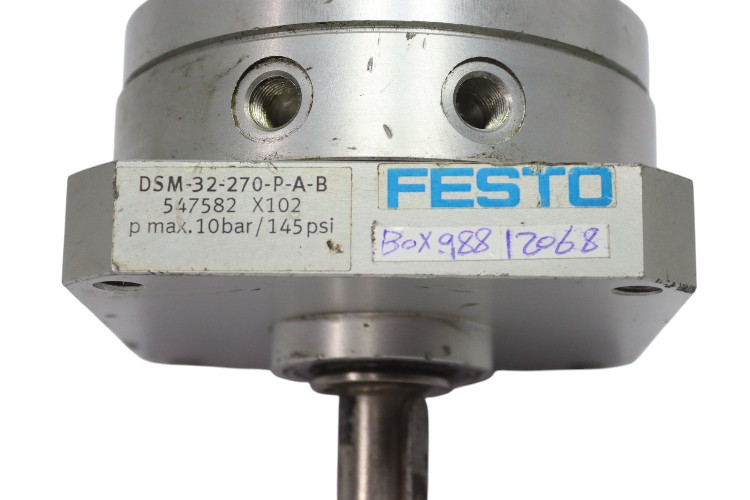

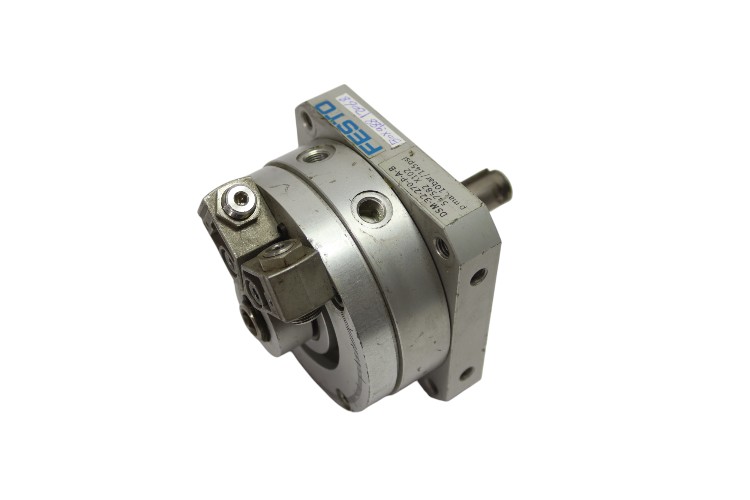

Festo DSM-32-270-P-A-B Semi Rotary Drive
The Festo DSM32270PAB Semi-Rotary Drive is designed for precise rotary motion in pneumatic systems. With a robust double-acting operation and a wide rotation angle adjustment range, it delivers reliable performance across various automation applications.
Manufacturer: FESTO
Type: Semi-Rotary Drive
Model: DSM-32-270-P-A-B
Part No.: 547582
| Size | 32 |
| Fluid | Compressed Air |
| Rotation Angle Adjustment Range | 0 ... 270° |
| Cushioning Angle | 1.4° |
| Operating Pressure | 1.5 ... 10 bar |
| Operation Mode | Double-Acting |
| Pneumatic Connection | G 1/8 |
| Temperature | -10 / 60 °C |
