Festo 548713 Soft Start/Quick Exhaust Valve
Used
In stock1 unitReady to ship
SOFT START / QUICK EXHAUST VALVE
FESTO MS6-SV-1/2-E-10V24-SO-AD1-MP1 valve for safe pneumatic system start-up and fast exhaust, with high flow and electrical actuation.3/2-wayAluminiumControldie-castElectricalExhaustFestoflowHighMS6-SV-1/2-E-10V24PneumaticPneumaticsQuickSoftStartValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

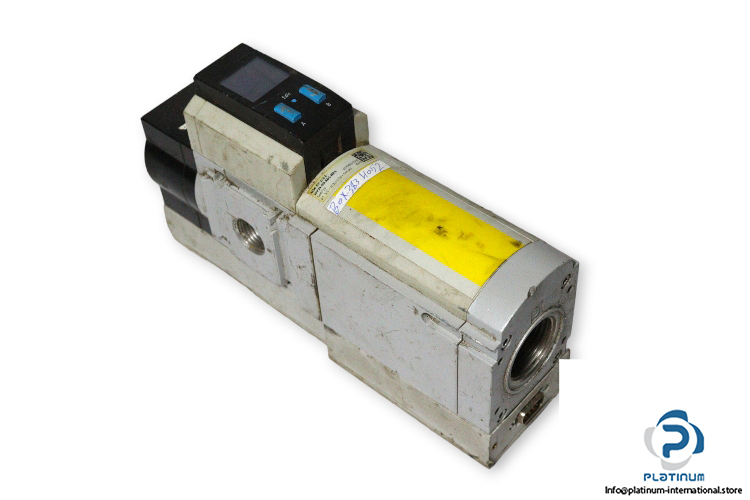

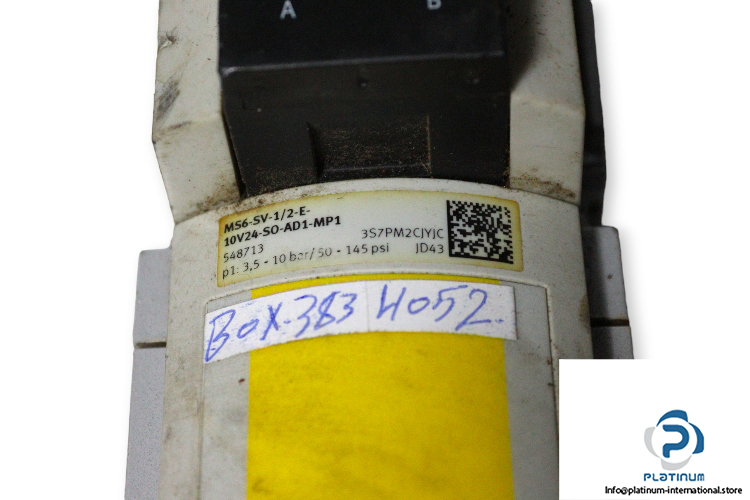

FESTO MS6-SV-1/2-E-10V24-SO-AD1-MP1 SOFT START / QUICK EXHAUST VALVE
The FESTO MS6-SV-1/2-E-10V24-SO-AD1-MP1 is a high-performance soft start and quick exhaust valve designed to optimize air flow in pneumatic systems. Engineered with a durable die-cast aluminium body and piston gate/seat design, it offers precise control for safe and efficient startup operations.
Manufacturer: FESTO
Type: Soft Start / Quick Exhaust Valve
Model: MS6-SV-1/2-E-10V24-SO-AD1-MP1
Part No.: 548713
| Fluid | Air |
| Design | Piston gate valve / Piston seat |
| Function | 3/2-way, closed, monostable / Soft-start |
| Type of Actuation | Electrically |
| Operating Pressure | 3 to 10 bar |
| Nominal Flow Rate | 4300 to 5700 l/min |
| Pneumatic Connection | G1/8 / G1/4 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 to 60 °C |
