Festo 548713 Soft Start/Quick Exhaust Valve
New
In stock2 unitsReady to ship
449,99$

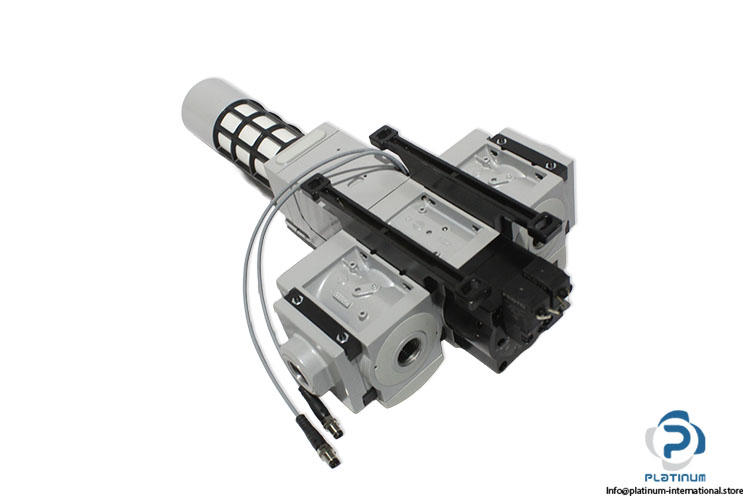

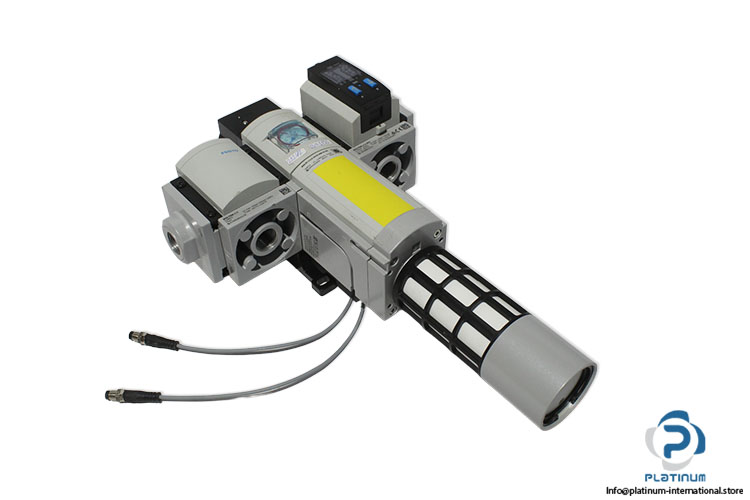

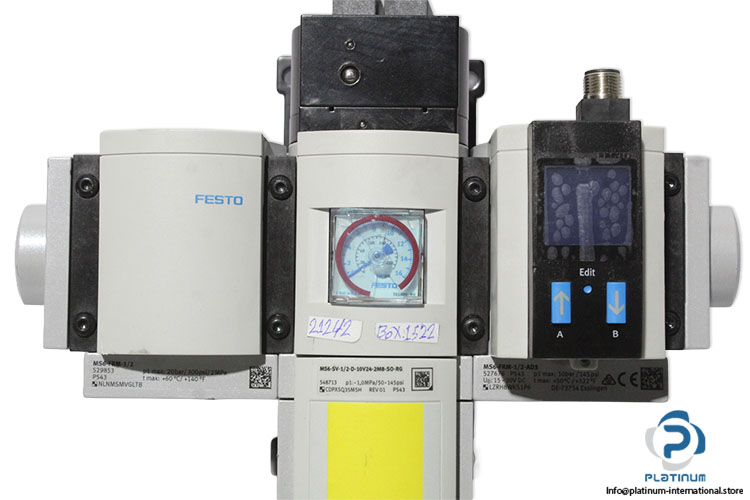

Soft Start/Quick Exhaust Valve Set Complete FESTO pneumatic valve assembly with branching modules and solenoid coil, designed for controlled air pressurization, quick exhaust, and efficient pneumatic automation.
AirAutomationBranchingcoilControlExhaustFestoIndustrialModulemsMS6PneumaticPneumaticsPreparationQuickSeriesSoftsolenoidStartUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

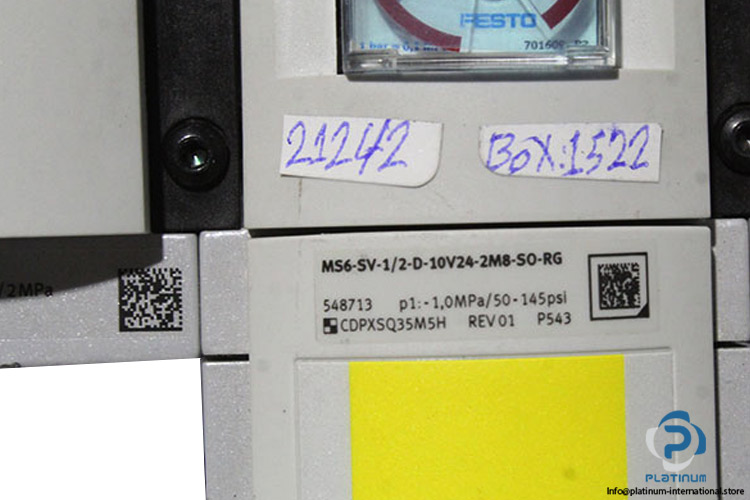

| Part No. | 548713 |
| Series | MS |
| Size | 6 |
| Valve Fluid | Air |
| Function | 3/2, Closed, Monostable |
| Structural Design | Piston Seat |
| Valve Lap | Underlap |
| Actuation Type | Electrical |
| Pilot Air Supply Port | Internal |
| Operating Pressure | 3.5 ... 10 bar / 0.35 ... 1 MPa |
| Nominal Flow Rate | 4300 l/min |
| Supply Voltage | 24 V DC |
| Pneumatic Connection | G1/2, G1 |
| Electrical Connection | 4-Pin |

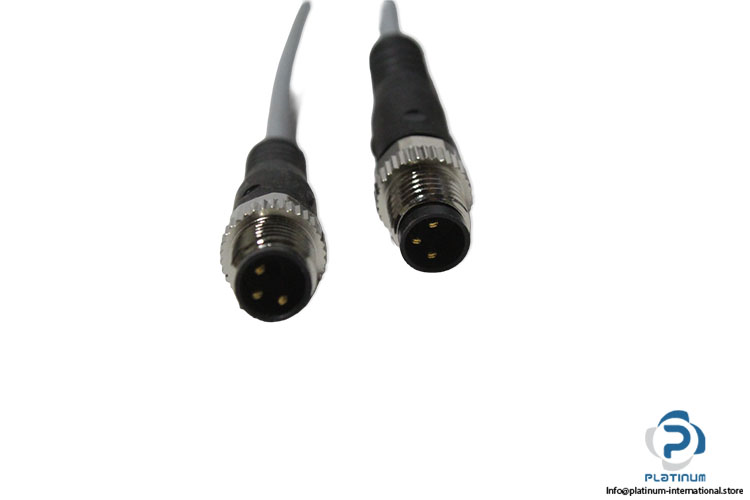

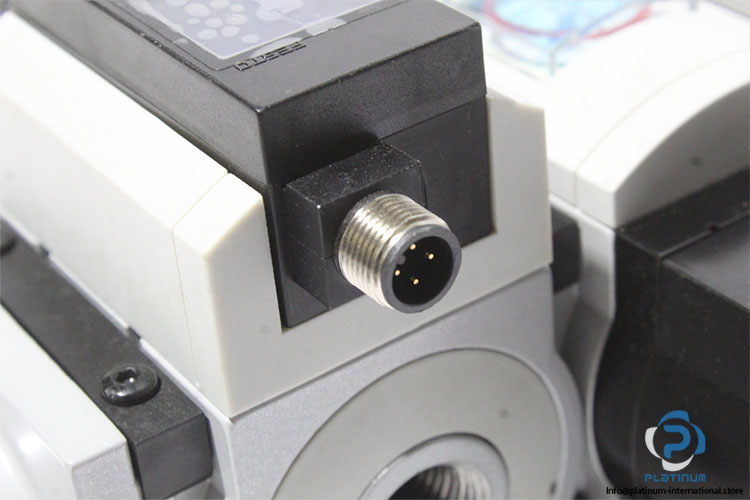

| Electrical Connection Proximity Sensor | 2x Cables with Plugs 3-Pin M12 |
| Cable Length | 0.3 m |
| Material | Die-Cast Aluminum |
| Seals Material | NBR |
| Ambient Temperature | -10 … 50 °C |

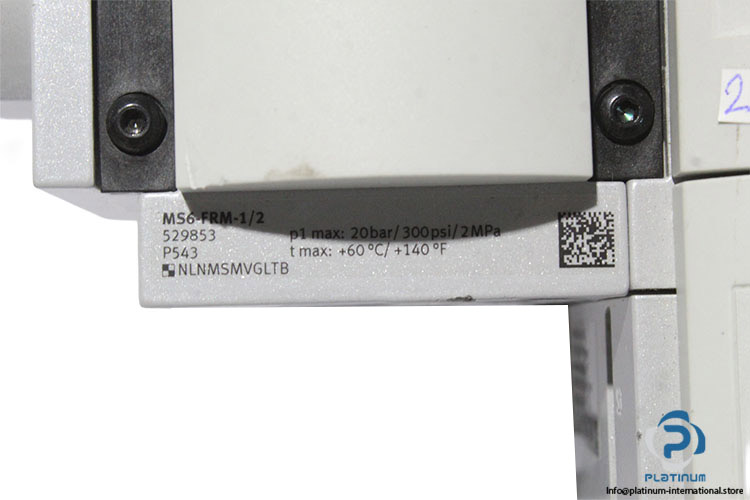

| Attachment 1 | FESTO 529853 BRANCHING MODULE |
| Branching Module 1 Manufacturer | FESTO |
| Attachment 1 Type | Branching Module |
| Branching Module 1 Model | MS6-FRM-1/2 |
| Branching Module 1 Part No. | 529853 |
| Branching Module 1 Fluid | Air |
| Branching Module 1 Working Pressure Max. | 2 MPa / 20 bar / 300 PSI |
| Branching Module 1 Standard Nominal Flow Rate In Main Flow Branching Module 1 Direction | 14,700 l/min |
| Branching Module 1 Standard Nominal Flow Rate Outlet at Top | 4,400 l/min |
| Branching Module 1 Standard Nominal Flow Rate Outlet Down | 4,600 l/min |
| Branching Module 1 Pneumatic Connection | G1/2 , Threaded |
| Branching Module 1 Supply Voltage | 250 V AC, 125 V DC |
| Branching Module 1 Fluid Temperature Range | -10 … 60°C |
| Attachment 2 | FESTO 527676 BRANCHING MODULE |
| Branching Module 2 Manufacturer | FESTO |
| Attachment 2 Type | Branching Module 2 |
| Branching Module 2 Model | MS6-FRM-1/2-AD7 |
| Branching Module 2 MRN | 527676 |
| Branching Module 2 Fluid | Air |
| Branching Module 2 Working Pressure Max. | 1 MPa / 145 psi |
| Branching Module 2 Flow Rate in Main Flow Direction 1 – 2 | 3200 ... 14700 l/min |
| Branching Module 2 Flow Rate Outlet at Top | 2700 ... 6000 l/min |
| Branching Module 2 Flow Rate Outlet Down | 2800 ... 6400 l/min |
| Branching Module 2 Pneumatic Connection | G1/4, G1/8 |
| Branching Module 2 Supply Voltage | 250 V AC, 125 V DC |
| Branching Module 2 Fluid Temperature Range | -10 … 60°C |

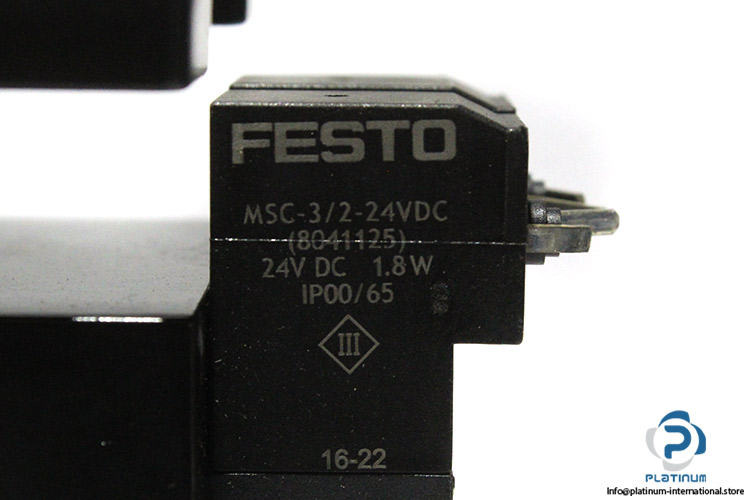

| Attachment 3 | FESTO 8041425 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment 3 Type | Solenoid Coil 1 |
| Solenoid Coil Model | MSC-3/2-24VDC |
| Solenoid Coil Part No. | 8041425 |
| Solenoid Coil Supply Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 1.8 W |
| Solenoid Coil Protection Class | IP00/ IP65 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102000 |
| Weight | 3,82 |
