Festo 549980 Pressure Sensor
New
In stock1 unitReady to ship
Pressure Sensor
FESTO Pressure Sensor SDE5-D10-03-Q6E-P-M8 is designed for reliable pressure measurement in compressed air systems. It features a 0 / 10 bar pressure range, PNP Normally Open switching output, and an M8 3-pin electrical connection.0-10AirbarCompressedConnectorFestoIndustrialIP40M8NormallyOpenPneumaticPNPPressureRangeSDE5-D10-03-Q6E-P-M8Sensor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

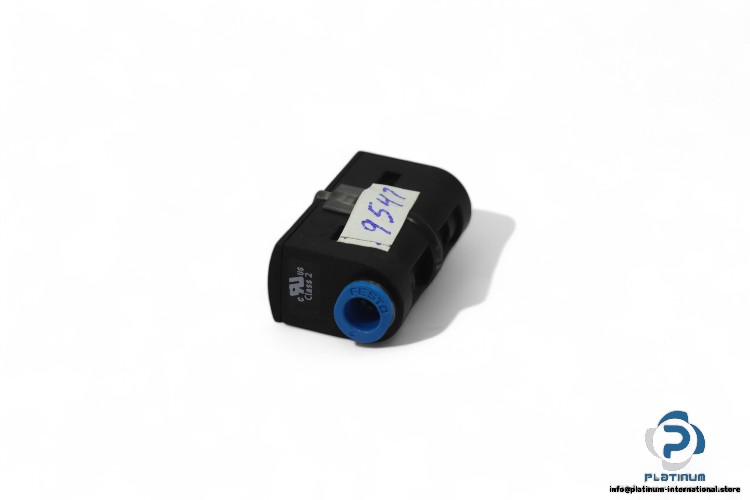

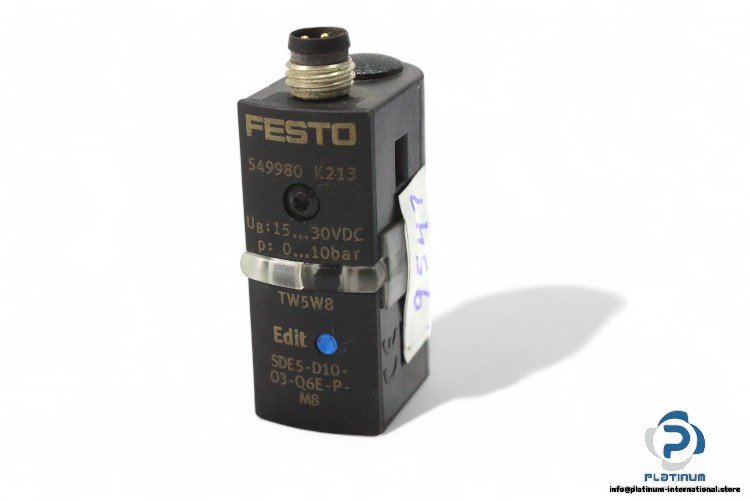

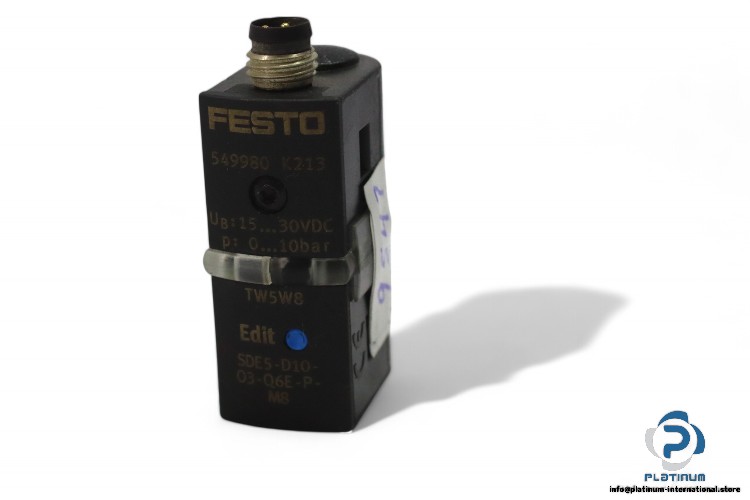

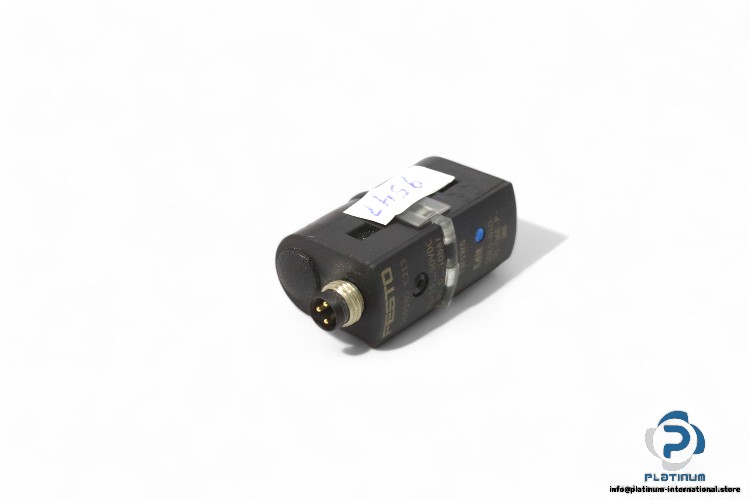

FESTO Pressure Sensor SDE5-D10-03-Q6E-P-M8
The FESTO Pressure Sensor SDE5-D10-03-Q6E-P-M8 is a high-precision sensor designed for reliable pressure measurement in compressed air systems. Offering a wide pressure range and robust performance, it is an ideal solution for industrial applications requiring accurate monitoring of pressure levels.
Manufacturer: FESTO
Model: SDE5D1003Q6EPM8
Part No.: 549980
Technical Specifications
- Pressure Measuring Range: 0 / 10 bar
- Medium: Compressed Air
- Switching Output: PNP Normally Open (NO)
- Output Current Max.: 100 mA
- Operating Voltage Range: 15 / 30 V DC
- Pneumatic Connection: QS-6
- Electrical Connection: M8 Connector 3-Pin
- Material: PA
- Protection Class: IP40
- Medium and Ambient Temperature: 0 / 50 °C
