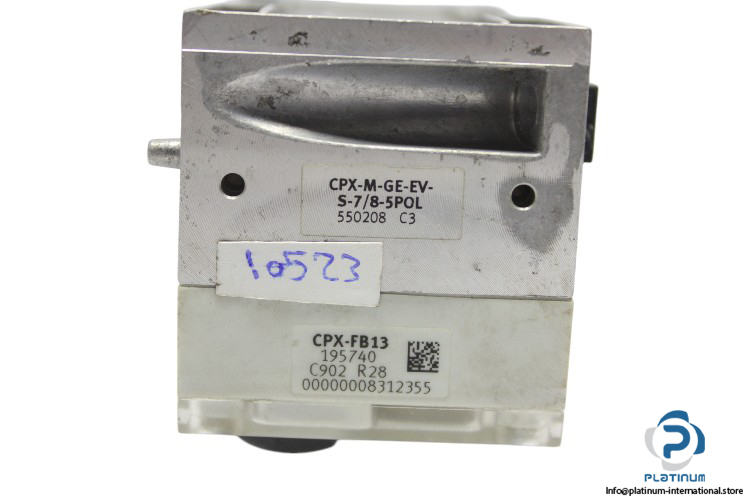

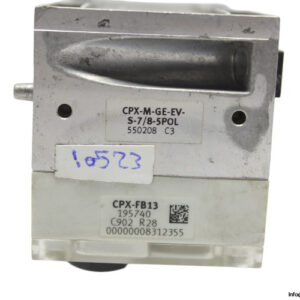

Festo 550208 Interlinking Block

FESTO Interlinking Block CPX-M-GE-EV-S-7/8-5POL

The FESTO CPX-M-GE-EV-S-7/8-5POL Interlinking Block is designed for seamless integration in industrial control systems. This angled fitting block features a 5-pin G 7/8 round plug male connector for electrical connection and is made from durable die-cast aluminum. It is ideal for managing various components in automation setups, providing robust functionality and reliability.

Manufacturer: FESTO

Type: Interlinking Block

Model: CPX-M-GE-EV-S-7/8-5POL

Part No.: 550208

Technical Specifications

• Mounting Type: Angled Fitting
• Electrical Connection: 5-Pin G 7/8 Round Plug Male Connector
• Material: Die-Cast Aluminum

Attachment: FESTO 195740 BUS NODE

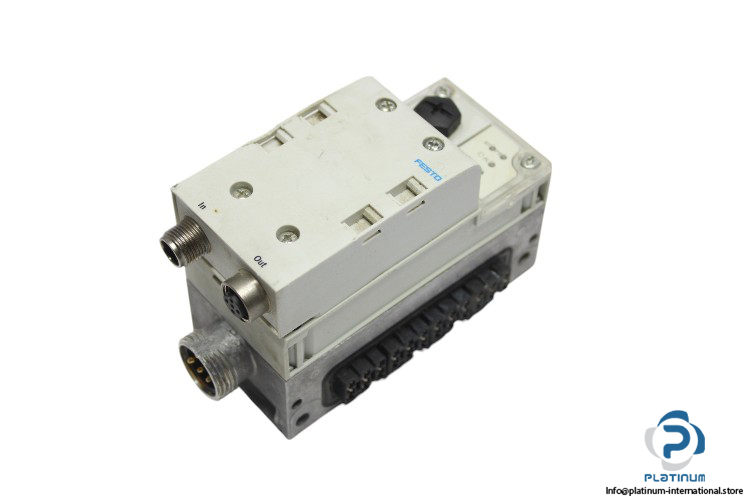

FESTO Bus Node CPX-FB13

The FESTO CPX-FB13 Bus Node supports Profibus DP protocol and features an angled fitting mounting type. It operates with a voltage range of 18 … 30 V DC and has a maximum internal power consumption of 200 mA. It supports a baud rate of 96 … 12000 kbit/s and includes multiple field bus interfaces, ensuring compatibility with a wide range of systems.

Manufacturer: FESTO

Type: Bus Node

Model: CPX-FB13

Part No.: 195740

Technical Specifications

• Protocol: Profibus DP
• Mounting Type: Angled Fitting
• Operational Voltage: 18 … 30 V DC
• Internal Power Consumption: 200 mA
• Address Volume Inputs/Outputs Max.: 64 Byte
• Baud Rate: 96 … 12000 kbit/s
• Field Bus Interface:
  • 2x M12x1, 5-Pin
  • B-Coded Sub-D Socket
  • 9-Pin Sub-D Plug Connector, For Self-Assembly
• Electrical Connection: 5-Pin G 7/8 Round Plug Connector
• Material: PA-reinforced PC
• Protection Class: IP65/IP67
• Dimensions: 50 x 50 x 107 mm

Attachment: FESTO 541519 MANIFOLD BLOCK

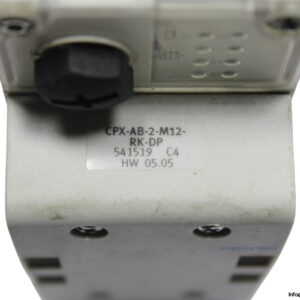

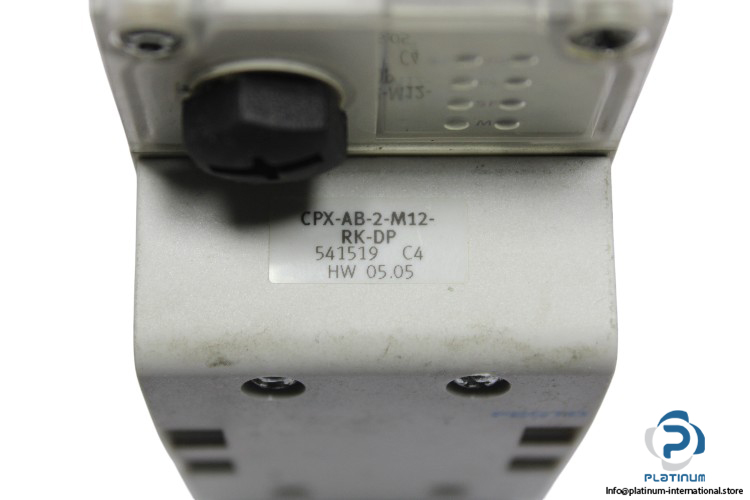

FESTO Manifold Block CPX-AB-2-M12-RK-DP

The FESTO CPX-AB-2-M12-RK-DP Manifold Block is designed for seamless integration with pneumatic and electrical systems. With a 2x M12 Socket 5-Pin B-Coded electrical connection, it provides reliable power and signal distribution in industrial applications. Constructed with PA PC material, it offers IP65/IP67 protection for durability in harsh environments.

Manufacturer: FESTO

Type: Manifold Block

Model: CPX-AB-2-M12-RK-DP

Part No.: 541519

Technical Specifications

• Electrical Connection: 2x M12 Socket 5-Pin B-Coded
• Material: PA PC
• Protection Class: IP65/IP67
