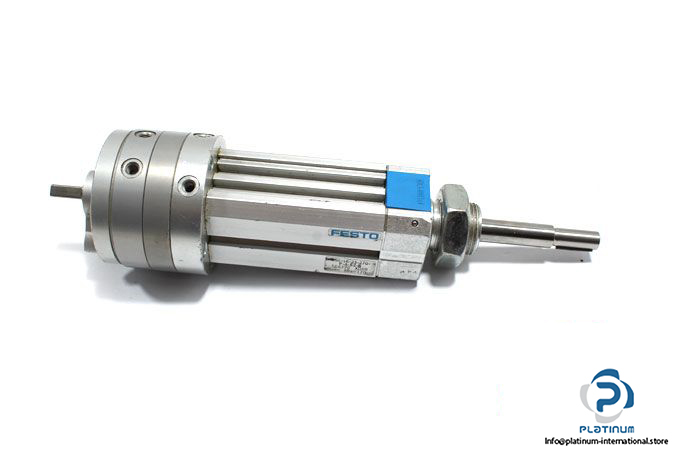

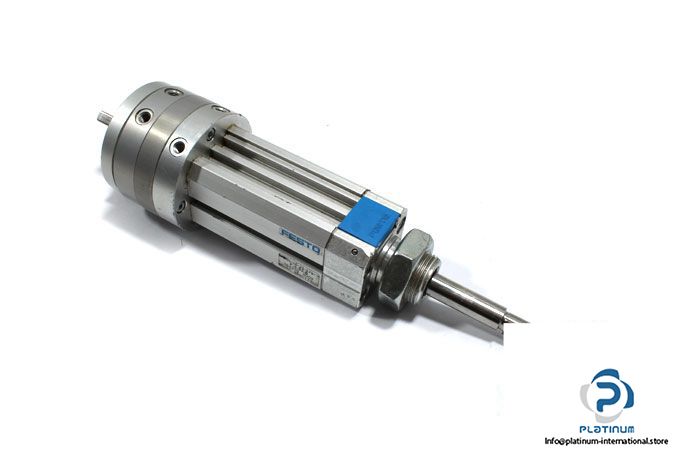

Festo 556390 Swivel Actuator

Manufacturer: FESTO

Type: Swivel Actuator

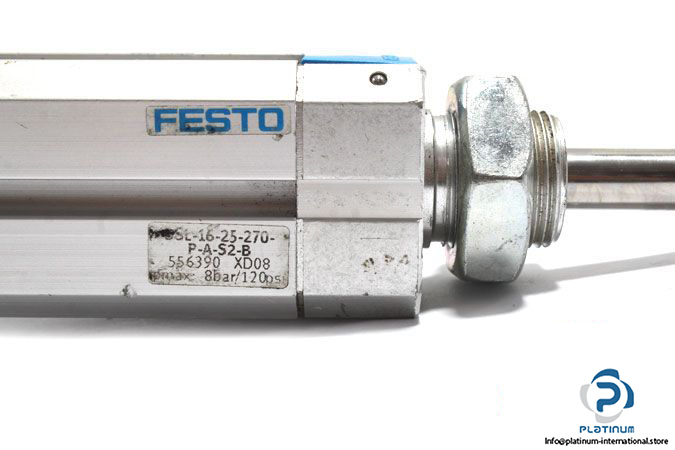

Model: DSL-16-25-270-P-A-S2-B

Part No.: 556390

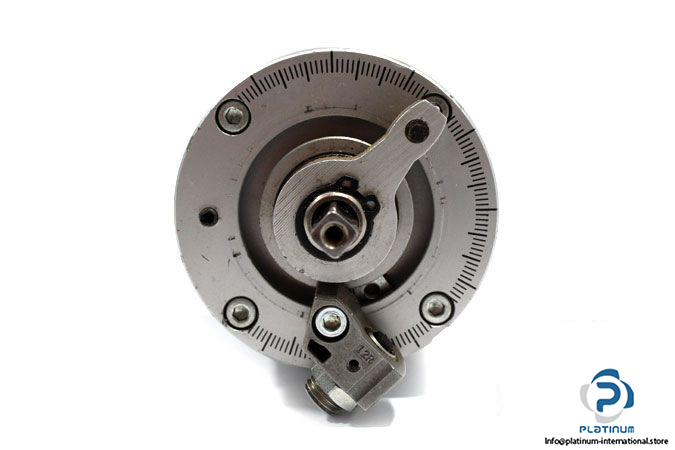

Adjustment Range of Swivel Angle: 0 deg … 270 deg

Stroke Length: 25 mm

Piston Diameter: 16 mm

Max. Operating Pressure: 2.5 … 8 bar

Cushioning: Elastic cushioning rings/pads at both ends

Mode of Operation: Double acting

Pneumatic Connection: M5

Temperature: -10 … 60 °C

Materials: Wrought aluminum alloy Smooth anodized

Weight: 0.650 kg
