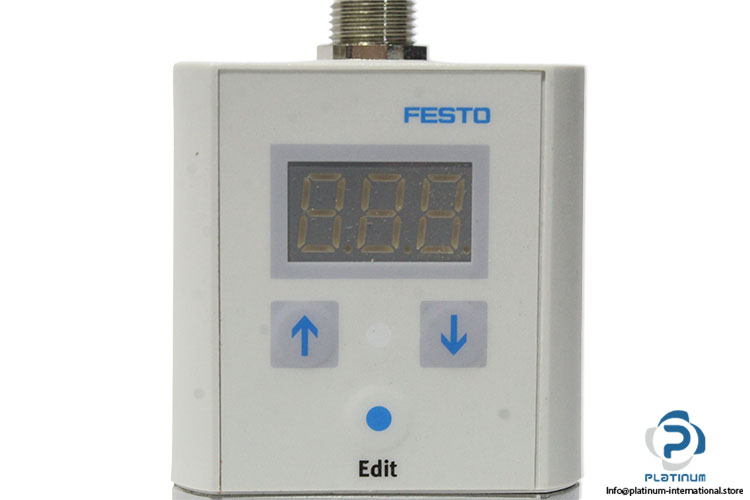

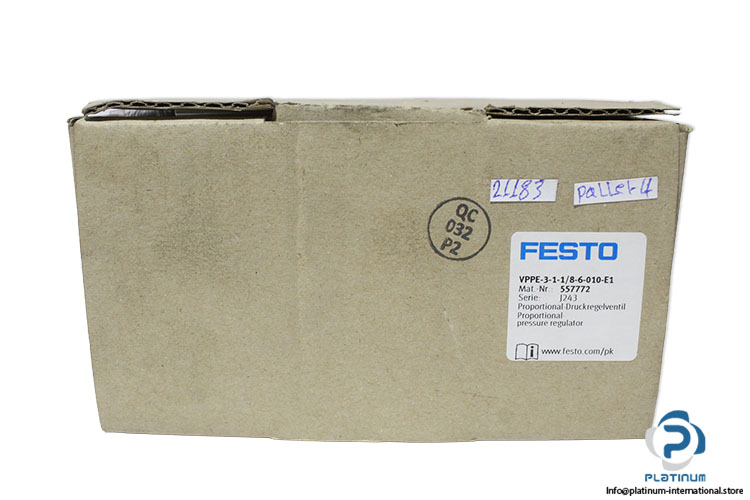

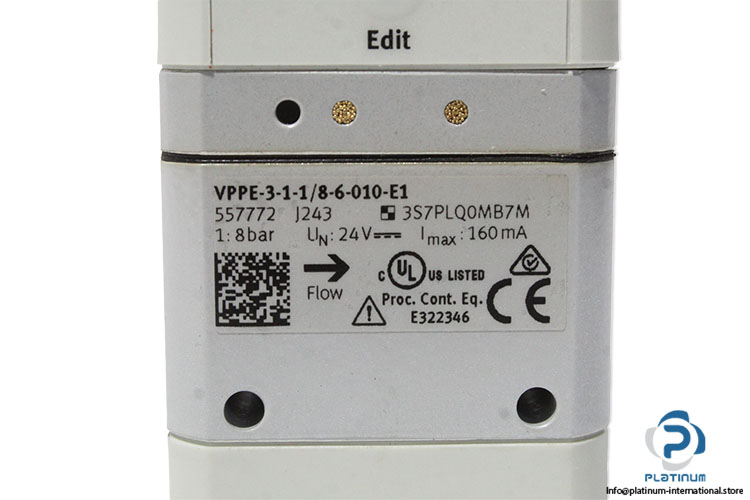

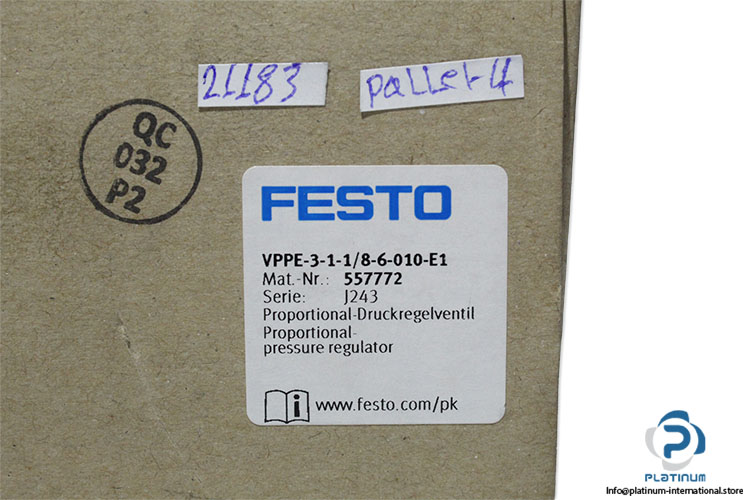

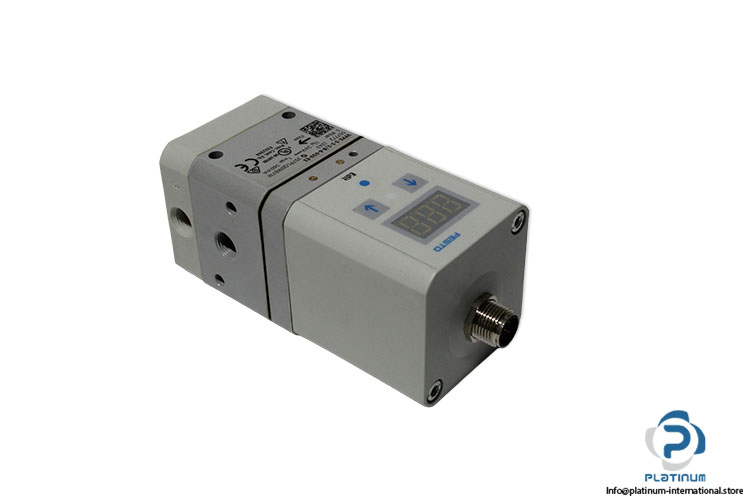

Festo 557772 Proportional Pressure Control Valve
New
In stock1 unitReady to ship
333,33$
Proportional Pressure Control Valve Festo VPPE-3-1-1/8-6-010-E1 proportional pressure control valve with 0–6 bar regulation range, 24 V DC operation, 0–10 V signal control, and 800 l/min flow rate.
0-1024ControldcFestoG1/8IndustrialIP65OutputPilotPneumaticPNPPressureProportionalregulatorVValveVppeVPPE-3-1-1/8-6-010-E1
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Art. No. | 557772 |
| Fluid | Compressed Air |
| Actuation Type | Electrically |
| Structural Design | Pilot-Controlled Diaphragm Regulator |
| Sealing Principle | Soft |
| Type Of Control | Pilot-Controlled |
| Pressure Regulation Range | 0.06 ... 6 bar / 0.006 ... 0.6 MPa |
| Inlet Pressure | 6 ... 8 bar / 0.6 ... 0.8 MPa |
| Nominal Flow Rate | 800 l/min |
| Nominal Operating Voltage | 24 V DC |
| Current Consumption Max. | 160 mA |
| Power Consumption | 4.2 W |
| Switching Output | PNP |
| Analog Input/Output Signal Range | 0 … 10 V |

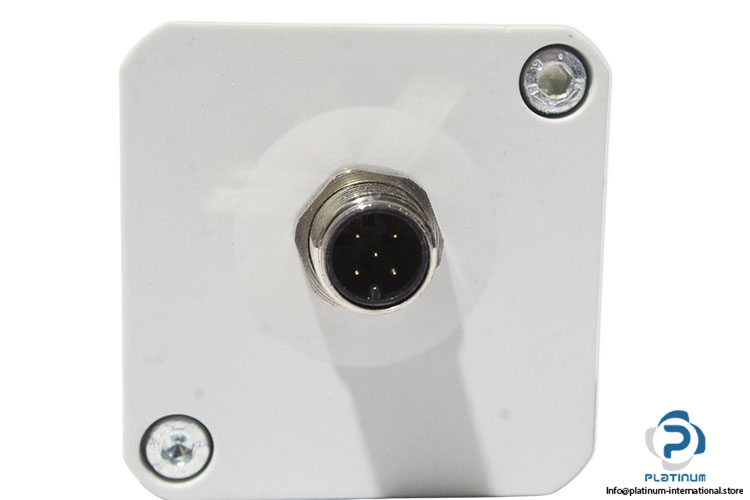

| Electrical Connection | Plug M12 |
| Port Size | G1/8 |
| Material | Wrought Aluminum Alloy, Anodized |
| Protection Class | IP65 |
| Ambient Temperature | 0 ... 60 °C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1092944 |
| Weight | 0,50 |
