Festo 559246 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO DSNU-20-160-PPS ISO Cylinder is a high-performance pneumatic component featuring a double-acting design with self-adjusting pneumatic end position damping. With a 20 mm cylinder diameter, 160 mm stroke, and a maximum pressure of 10 bar, this cylinder ensures precision and reliability in industrial applications.1016020aanANDbarComponentCylinderdamping.Designdiameterdouble-actingEndensuresfeaturinghigh-performanceisISOmaximummmOfPneumaticPositionPrecisionPressureSelf-AdjustingStrokethisWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

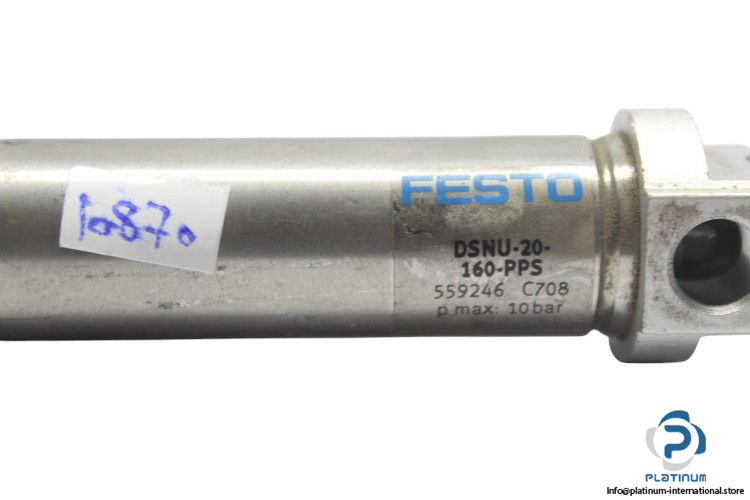

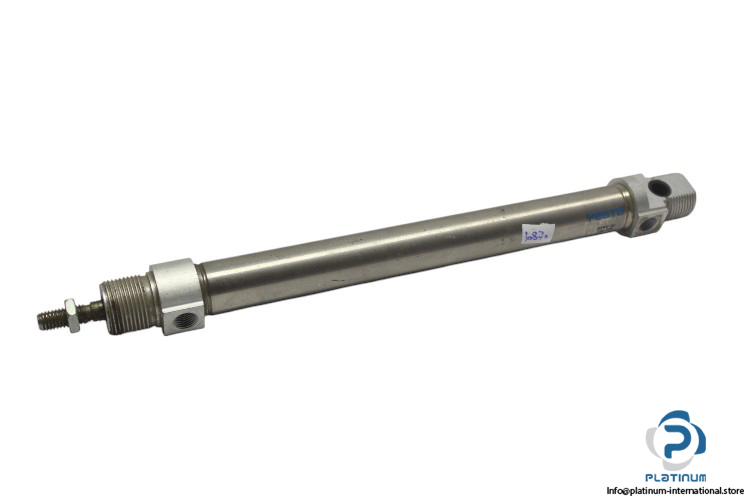

FESTO DSNU-20-160-PPS ISO Cylinder
The FESTO DSNU-20-160-PPS ISO Cylinder is a high-quality pneumatic cylinder designed for precision and reliability in industrial applications. With its double-acting mode of operation and self-adjusting pneumatic end position damping, this cylinder offers optimal performance in automation and motion control systems. Engineered for durability, it is capable of withstanding challenging environments with a wide ambient temperature range.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-20-160-PPS
- Part No.: 559246
Technical Specifications
- Cylinder Diameter: 20 mm
- Stroke: 160 mm
- Rod Diameter: 8 mm
- Max Pressure: 10 bar
- Cushioning: Self-adjusting pneumatic end position damping
- Mode of Operation: Double acting
- Ambient Temperature: -20 to 80 °C
- Port Size: G1/8
