Festo 561366 Double Solenoid Valve
Used
In stock1 unitReady to ship
125,00$
DOUBLE SOLENOID VALVE
FESTO VSVA-B-P53C-D-D1-1R5L 5/3 valve with 726519 coil, providing precise control in pneumatic applications with 1300 l/min flow and sub-base connection.13005/3726519AirClosedcoilControlDoubleFestoIndustriall/minPneumaticPneumaticssolenoidSub-BaseValveVSVA-B-P53C-D-D1-1R5L
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

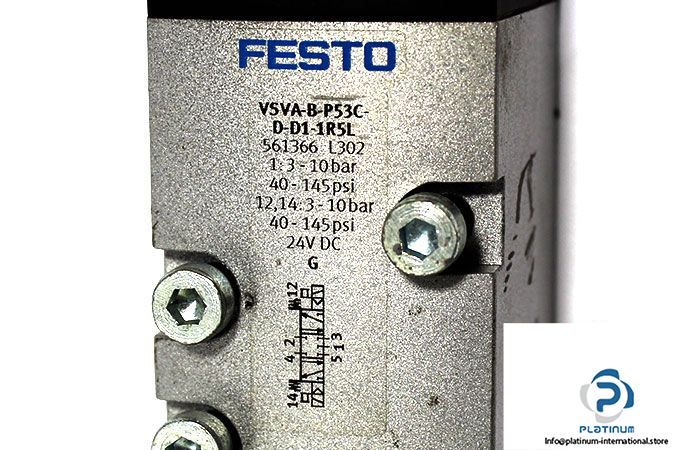

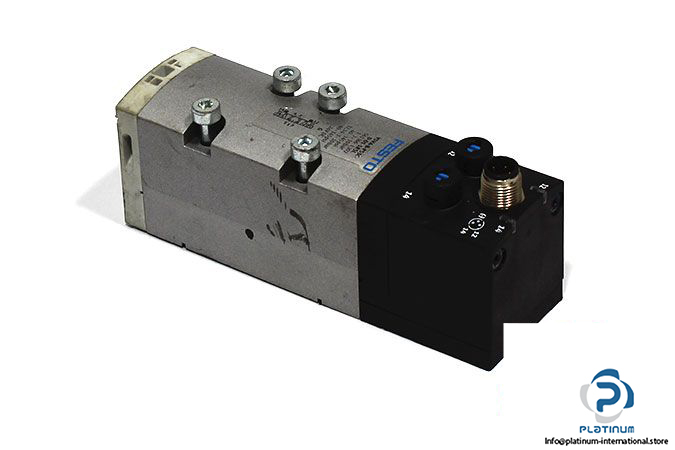

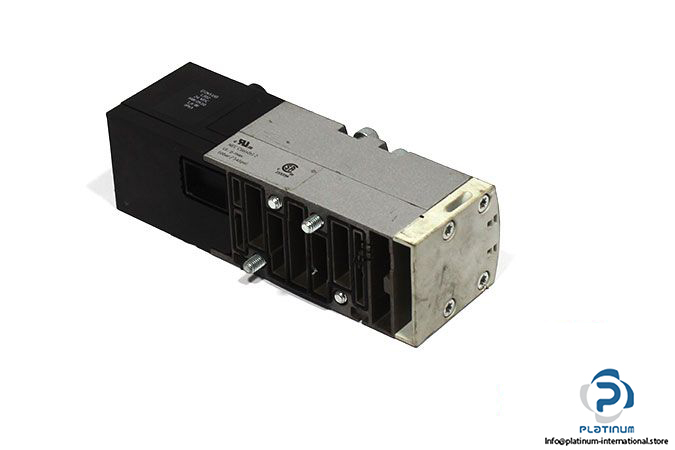

FESTO VSVA-B-P53C-D-D1-1R5L DOUBLE SOLENOID VALVE WITH SOLENOID COIL
The FESTO VSVA-B-P53C-D-D1-1R5L is a high-performance double solenoid valve engineered for advanced pneumatic control systems. Featuring a 5/3 closed function, sub-base mounting, and robust materials, this valve ensures reliable air flow regulation under varying industrial conditions. It comes equipped with a FESTO 726519 solenoid coil for efficient electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VSVA-B-P53C-D-D1-1R5L
Part No.: 561366
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston gate valve |
| Valve Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 10 bar |
| Nominal Flow Rate | 1300 l/min |
| Pneumatic Connection | Sub-base / G1/4 |
| Material | Die-cast aluminium / PA |
| Ambient Temperature | -5 / 50 °C |

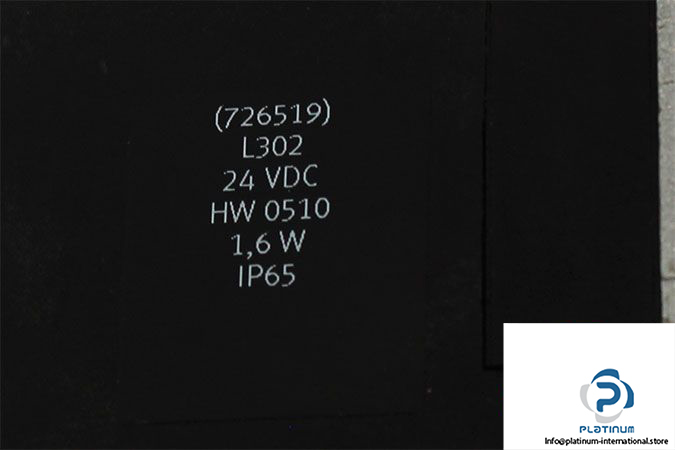

| Attachment | FESTO 726519 Solenoid Coil |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.6 W |
| Protection Class | IP65 |
