Festo 562221 Guided Drive
Used
In stock1 unitReady to ship
Guided Drive
Festo DGRF-C-GF-63-400-PPVA-R guided drive with 400 mm stroke, 63 mm piston, and double-acting operation. Includes SMT-C1 proximity sensor for 24V DC input and precise switching in industrial automation.400mm63mmActingActuatorAutomationCylinderDGRF-C-GF-63-400-PPVA-RDoubleDriveFestoGuidedIndustrialPistonPneumaticPneumaticsProximitySensorSMT-C1Stroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

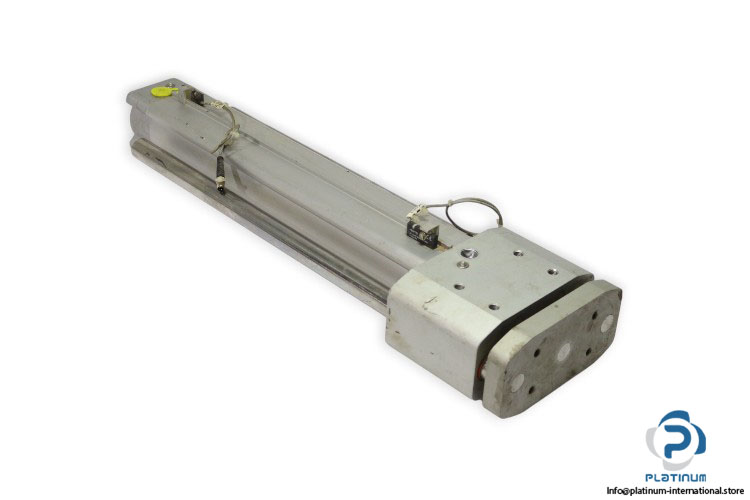

Festo DGRF-C-GF-63-400-PPVA-R Guided Drive
The Festo DGRF-C-GF-63-400-PPVA-R is a robust, double-acting guided drive engineered for high-precision pneumatic actuation. Designed for dynamic industrial applications, it offers exceptional stability and guidance with high-quality construction materials including stainless steel and wrought aluminum. This model comes equipped with a proximity sensor for precise position feedback.
Manufacturer: Festo
Type: Guided Drive

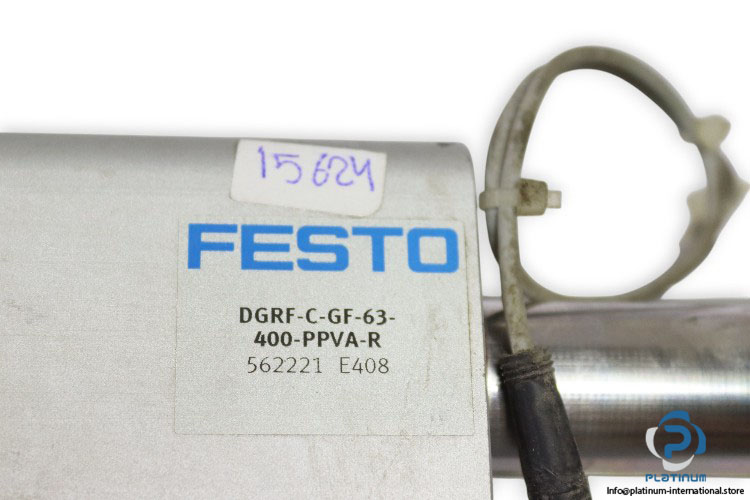

Model: DGRF-C-GF-63-400-PPVA-R
Part No.: 562221
Ref. code: E408
Attachment “ Proximity Sensor
| Operating Pressure | 1.5 to 12 bar |
| Piston Diameter | 63 mm |
| Stroke | 400 mm |
| Design | Guidance |
| Mode of Operation | Double-Acting |
| Ambient Temperature | -20 to 80°C |
| Pneumatic Connections | G3/8 |
| Cover Material | Die-cast Aluminum |
| Material Guide Rod | High-Alloy Stainless Steel |
| Material Housing | Wrought Aluminum Alloy |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | Wrought Aluminum Alloy |

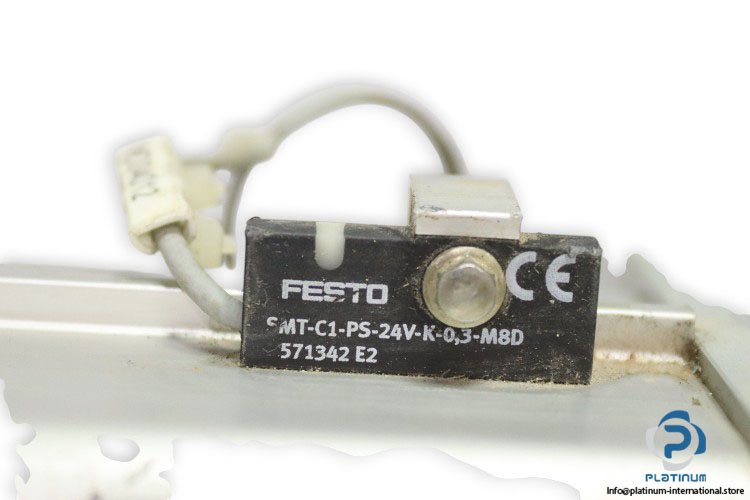

| Part No. | 571342 E2 |
| Ref. code | E2 |
| Design | Block Design |
| Rated Operational Voltage | 24 V DC |
| Switching Output | PNP |
| Switching Element Function | N/O Contact |
| Max. Output Current | 200 mA |
| Max. Switching Capacity | 6 W |
| Voltage Drop | <1.8 V |

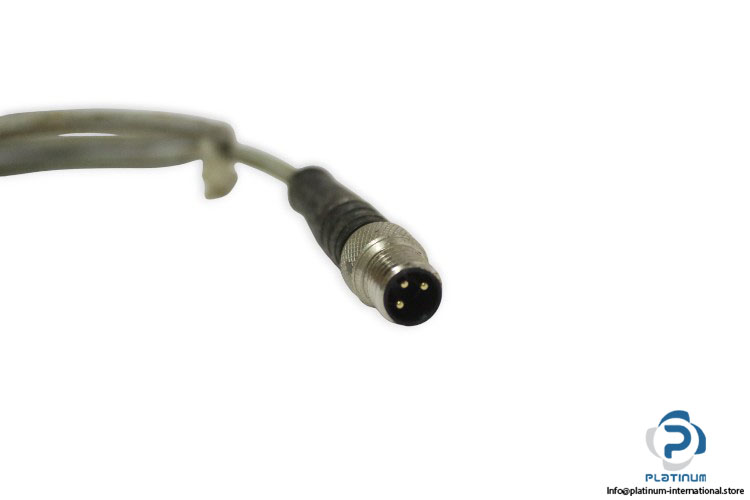

| Electrical Connection | Connector M8x1 |
| Ambient Temperature | -20 to 70°C |
