Festo 562531 Filter Regulator
New
In stock1 unitReady to ship

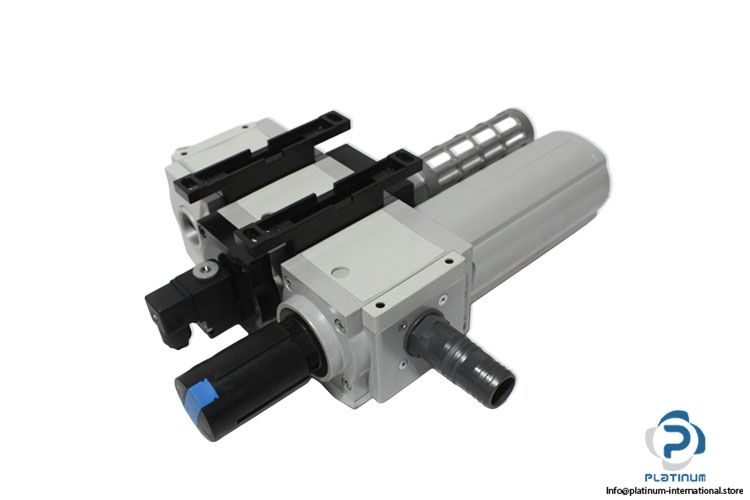

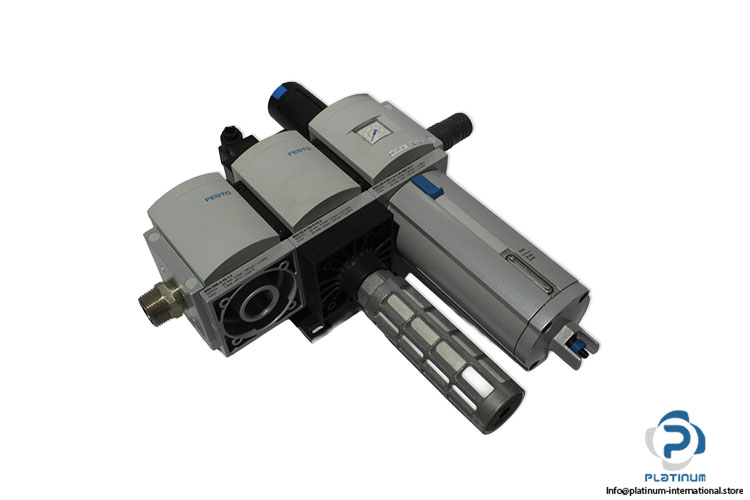

FESTO Filter Regulator Assembly Industrial FESTO filter regulator assembly with branching module, on/off valve, and solenoid coil designed for compressed air treatment, pressure regulation, and pneumatic automation systems.
AirAutomationcoilCompressedControlFestFestofilterIndustrialmsMS9OffOnPneumaticPneumaticsPreparationPressureregulatorSeriessolenoidSystemUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

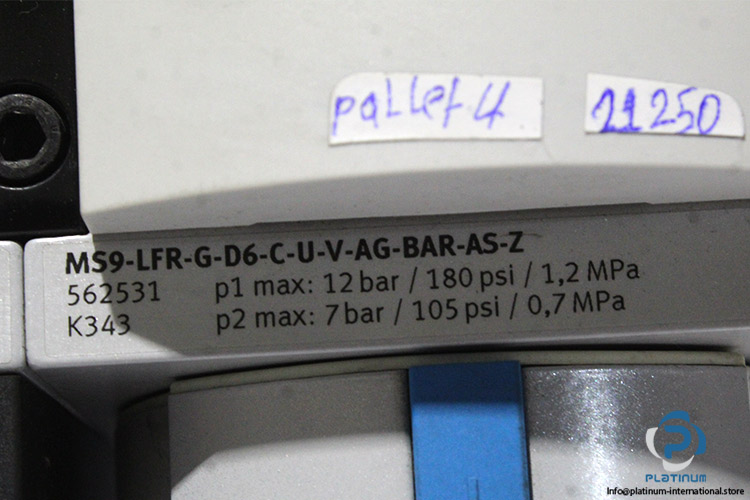

| Part No. | 562531 |
| Series | MS |
| Size | 9 |

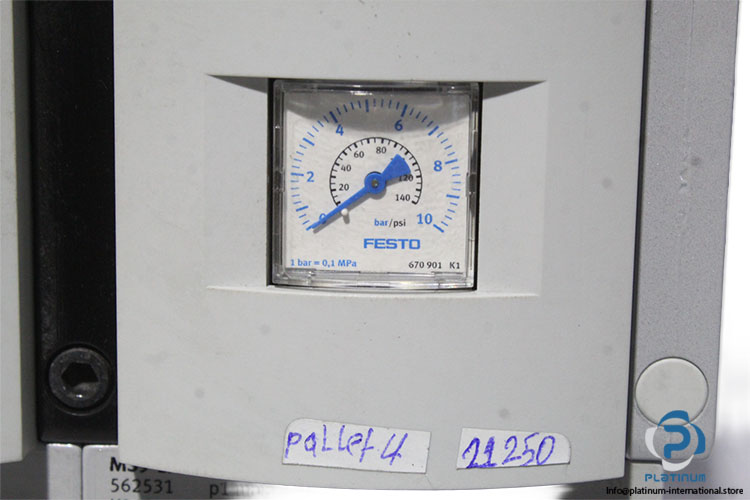

| Design | Filter Regulator with Pressure Gauge |
| Fluid | Compressed Air / Inert Gas |
| Operating Pressure | 0.2 ... 12 bar / 0.08 ... 1.4 MPa / 210 PSI |
| Pressure Regulation Range | 0.5 ... 7 bar |
| Grade of Filtration | 5 µm |
| Actuator Lock | Rotary Knob with Detent |
| Material | Die-Cast Aluminium |
| Ambient Temperature | -10 ... 60 °C |

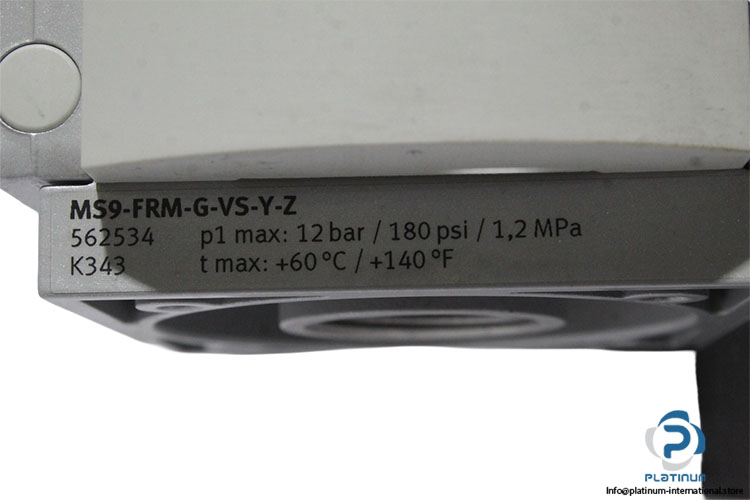

| Attachment 1 | FESTO 562534 BRANCHING MODULE |
| Branching Module Manufacturer | FESTO |
| Attachment 1 Type | Branching Module |
| Branching Module Model | MS9-FRM-G-VS-Y-Z |
| Branching Module Part No. | 562534 |
| Branching Module Size | 9 |
| Branching Module Fluid | Air |
| Branching Module Working Pressure Max. | 12 bar / 180 PSI / 1,2 MPa |
| Branching Module Fluid Temperature Range | -10 … 60°C |

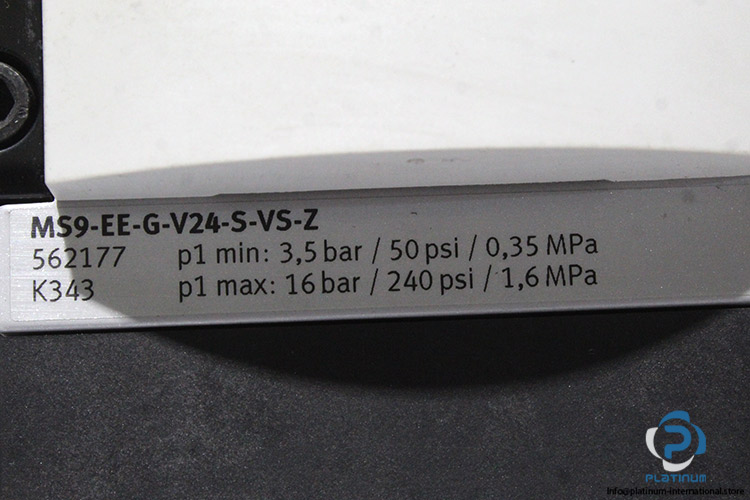

| Attachment 2 | FESTO 562177 ON/OFF VALVE |
| On/Off Valve Manufacturer | FESTO |
| Attachment 2 Type | On/Off Valve |
| On/Off Valve Model | MS9-EE-G-V24-S-VS-Z |
| On/Off Valve Part No. | 562177 |
| On/Off Valve Fluid | Air |
| On/Off Valve Design | Piston Gate Valve |
| On/Off Valve Function | 3/2-Way, Closed, Monostable |
| On/Off Valve Type of Actuation | Electrically |
| On/Off Valve Operating Pressure | 3.5 … 16 bar / 50 … 240 psi / 0,35 … 1,6 MPa |
| On/Off Valve Nominal Flow Rate | 8000 ... 18000 l/min |
| On/Off Valve Pneumatic Connection | G1/4 / G1/8 |
| On/Off Valve Material | Die-Cast Aluminum |
| On/Off Valve Seals Material | NBR |
| On/Off Valve Ambient Temperature | -10 … 60 °C |

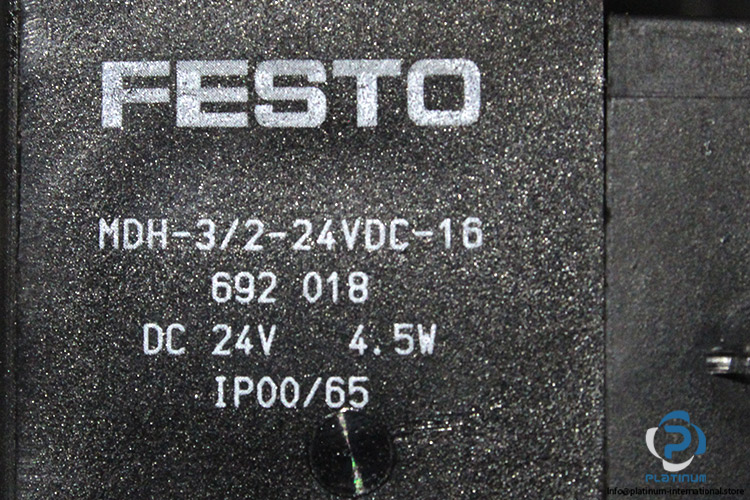

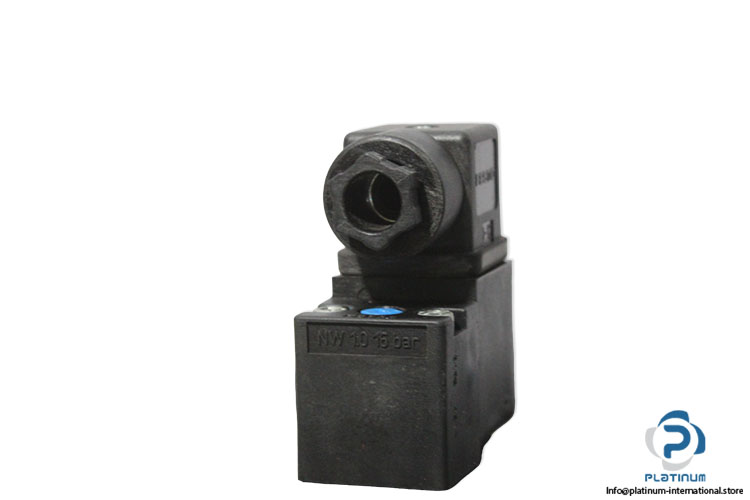

| Attachment 3 | FESTO 692018 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment 3 Type | Solenoid Coil |
| Solenoid Coil Model | MDH-3/2-24VDC-16 |
| Solenoid Coil Part No. | 692 018 |
| Solenoid Coil Supply Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 4.5 W |
| Solenoid Coil Protection Class | IP00/IP65 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102008 |
| Weight | 8,34 |
