Festo 570916 Soft Start Valve With Coil
Used
In stock2 unitsReady to ship
Soft Start Valve with Solenoid Coil and Proximity Sensor
The FESTO Soft Start Valve VABF-S6-1-P5A4-G12-4-1-P-SA, paired with the FESTO MSEB-3-24 V DC solenoid coil and SIEN-M12B-PS-S-L inductive proximity sensor, offers precise control for industrial automation systems with pneumatic connections and high switching frequencies.AutomationcoilControlFestoInductiveIndustrialM12BMSEB-3-24PneumaticProximitySensorSiensolenoidVABF-S6ValveVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

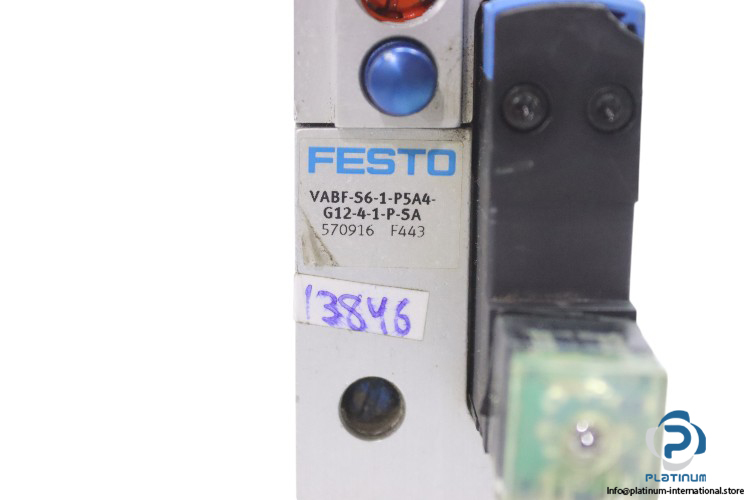

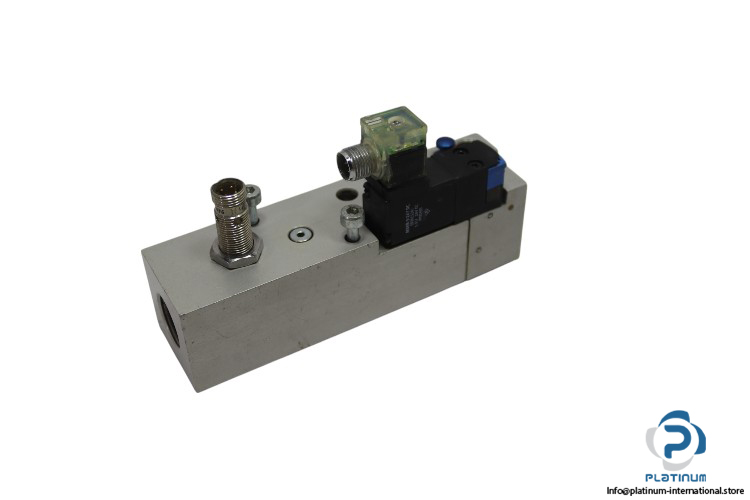

FESTO Soft Start Valve with Solenoid Coil and Inductive Proximity Sensor
The FESTO Soft Start Valve (VABF-S6-1-P5A4-G12-4-1-P-SA) is designed for smooth operation and efficient control of pneumatic systems. It is attached to the FESTO MSEB-3-24 V DC solenoid coil and SIEN-M12B-PS-S-L inductive proximity sensor, ensuring reliable performance in industrial automation applications.
Manufacturer: FESTO
Type: Soft Start Valve
Model: VABF-S6-1-P5A4-G12-4-1-P-SA
Part No.: 570916
Technical Data:
- Pneumatic Connection: G1/2
- Attached with: FESTO 8081524 SOLENOID COIL

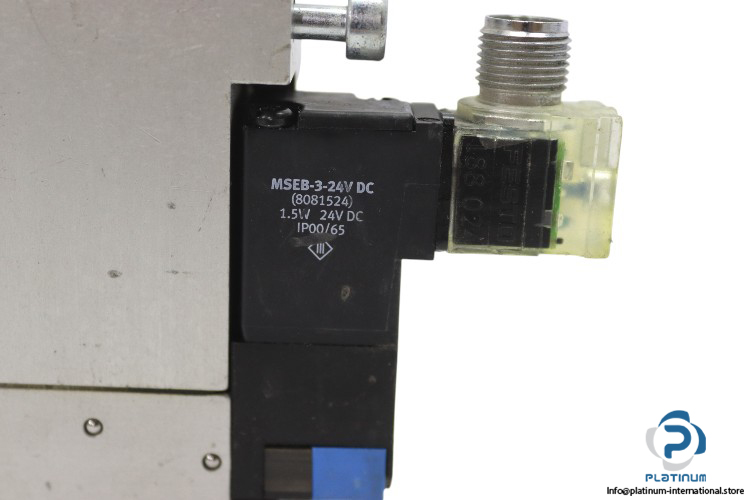

FESTO MSEB-3-24 V DC Solenoid Coil:
- Voltage: 24 VDC
- Power: 1.5 W
- Attached with: FESTO SIEN M12B-PS-S-SL INDUCTIVE PROXIMITY SENSOR

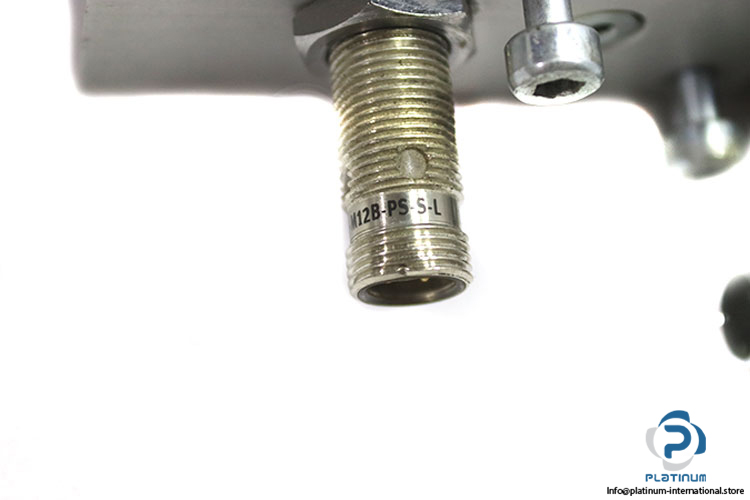

FESTO SIEN-M12B-PS-S-L Inductive Proximity Sensor:
- Rated Operating Distance: 2 mm
- Operating Voltage: 10 / 30 V DC
- Output Current: 200 mA
- Switching Frequency: 3000 Hz
- Electrical Design: PNP
- Switching Output: Normally open
- Connector Type: M12 Connector, 3-pin
- Enclosure Rating: IP65, IP67
- Ambient Operating Temperature: -5 / 70°C
- Diameter, Housing Length: 12 mm, 45 mm
- Housing Material: Brass, PBTP, Nickel Plated
- Mounting: Flush mountable
- Supplied Items: 2 lock nuts
