Festo 571298 Proportional Pressure Control Valve
New
In stock6 unitsReady to ship
Proportional Pressure Control Valve High-precision Festo proportional pressure control valve designed for electronic pressure regulation, stable pneumatic control, and reliable automation system performance.
AirAutomatioCompressedControlControlledDiaphragmElectronicFestoIndustrialPilotPneumaticPressureProportionalregulatorValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 571298 |
| Fluid | Compressed Air |
| Actuation Type | Electrically |
| Structural Design | Pilot-Controlled Diaphragm Regulator |
| Sealing Principle | Soft |
| Type Of Control | Pilot-Controlled |
| Pressure Regulation Range | 0.06 ... 6 bar / 0.006 ... 0.6 MPa |
| Inlet Pressure | 1 ... 8 bar / 0 ... 0.8 MPa |
| Nominal Flow Rate | 1750 l/min |
| Nominal Operating Voltage | 24 V DC |
| Current Consumption Max. | 300 mA |
| Power Consumption | 7 W |
| Switching Output | PNP |
| Analog Input/Output Signal Range | 0 … 10 V |

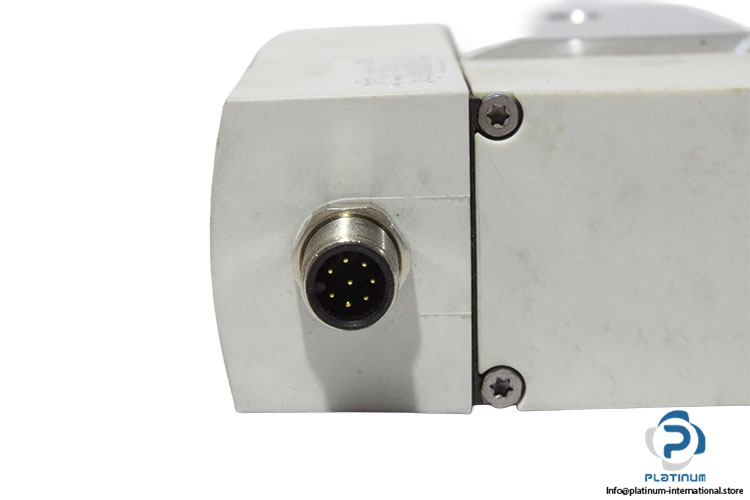

| Electrical Connection | Plug M12 |
| Port Size | G1/4 |
| Material | Wrought Aluminum Alloy, Anodized |
| Protection Class | IP65 |
| Ambient Temperature | 0 ... 50 °C |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1092949 |
| Weight | 0,56 |
