Festo 573479 Solenoid Valve
Used
In stock10 unitsReady to ship
Solenoid Valve
The FESTO VUVG-B14-T32C-MZT-F-1T1L is an electrically actuated 2 by 3 by 2 way valve with 24 V DC supply, 440 liters per minute flow rate, and IP65/IP67 protection, ensuring precise pneumatic control and long service life.2243573479AluminumAutomationbydcEVS7FestoIndustrialIP65IP67PneumaticSeriessolenoidVValveVUVG-B14-T32C-MZT-F-1T1LWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

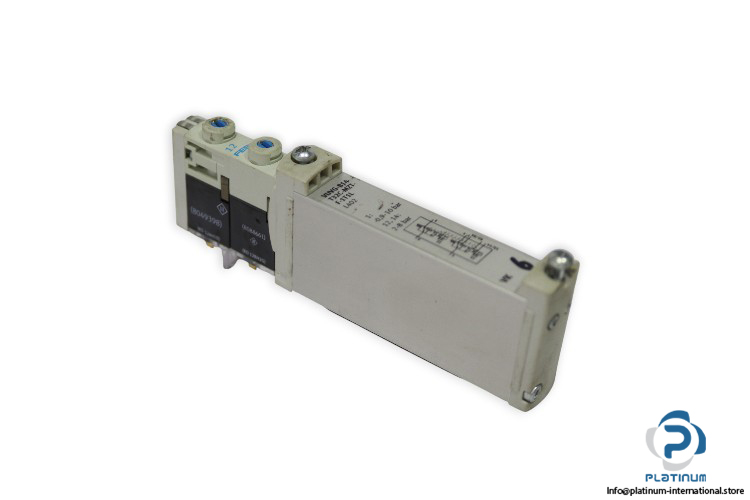

FESTO VUVG-B14-T32C-MZT-F-1T1L Solenoid Valve
The FESTO VUVG-B14-T32C-MZT-F-1T1L Solenoid Valve is a high-performance, compact pneumatic valve designed for precise and efficient control of compressed air systems. It provides reliable operation with excellent flow capacity, electrical actuation, and durable aluminum housing suitable for industrial automation environments.
Manufacturer: FESTO
Type: Solenoid Valve

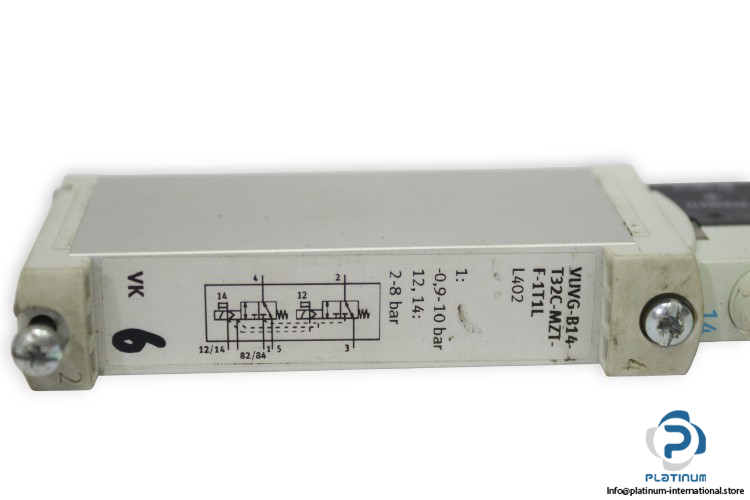

Model: VUVG-B14-T32C-MZT-F-1T1L
Part Number: 573479
| Valve Function | 2 by 3 by 2 way, monostable, closed |
| Type of Actuation | Electric |
| Valve Size | 14 millimeters |
| Standard Nominal Flow Rate | 440 liters per minute |
| Pneumatic Working Port | Flange |
| Operating Voltage | 24 V DC |
| Operating Pressure | minus 0.9 bar to 10 bar |
| Design | Piston gate valve |
| Type of Reset | Mechanical spring |
| Degree of Protection | IP65, IP67 |
| Exhaust Air Function | With flow control option |
| Type of Piloting | Pilot actuated |
| Pilot Air Supply | External |
| Flow Direction | Reversible |
| Lap | Overlap |
| Signal Status Display | LED |
| Pilot Pressure | 2 bar to 8 bar |
| Maximum Switching Frequency | 3 Hz |
| Switching Time Off | 21 milliseconds |
| Switching Time On | 13 milliseconds |
| Duty Cycle | 100 percent |
| Maximum Positive Test Pulse With 0 Signal | 1600 microseconds |
| Maximum Negative Test Pulse With 1 Signal | 3000 microseconds |
| Characteristic Coil Data | 22 V DC, 1.0 W |
| Permissible Voltage Fluctuations | plus or minus 10 percent |
| Operating Medium | Compressed air to ISO 8573-1:2010 (7:4:4) |
| Note on Operating and Pilot Medium | Lubricated operation possible |
| Vibration Resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class CRC | 2 - Moderate corrosion stress |
| Pilot Medium | Compressed air to ISO 8573-1:2010 (7:4:4) |
| Ambient Temperature | minus 5 to 60 degree Celsius |
| Electrical Connection | Via sub base |
| Type of Mounting | On manifold rail |
| Material Seals | HNBR, NBR |
| Material Housing | Wrought aluminum alloy |

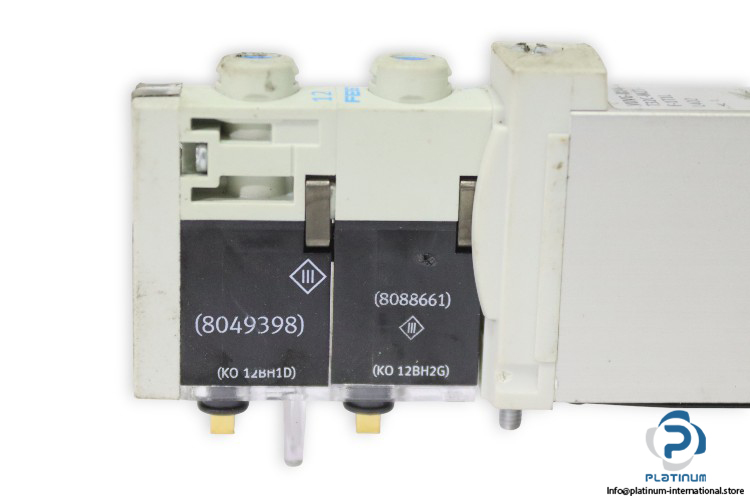

| Attached With Coil Model | 8049398 |
| Attached With Coil Model | 8088661 |
