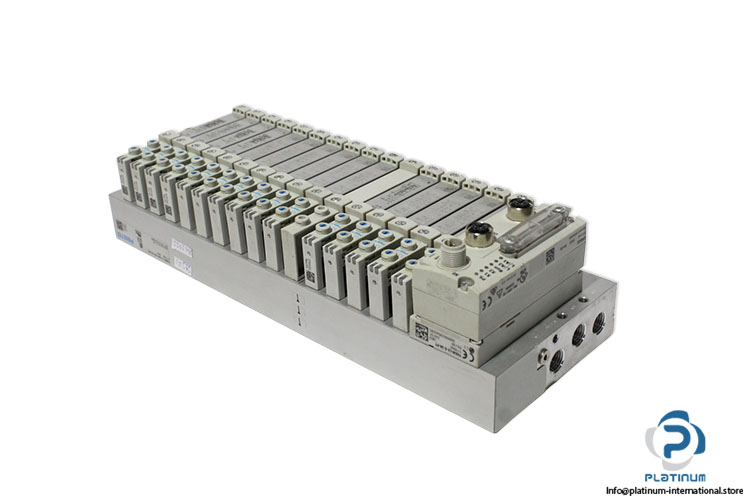

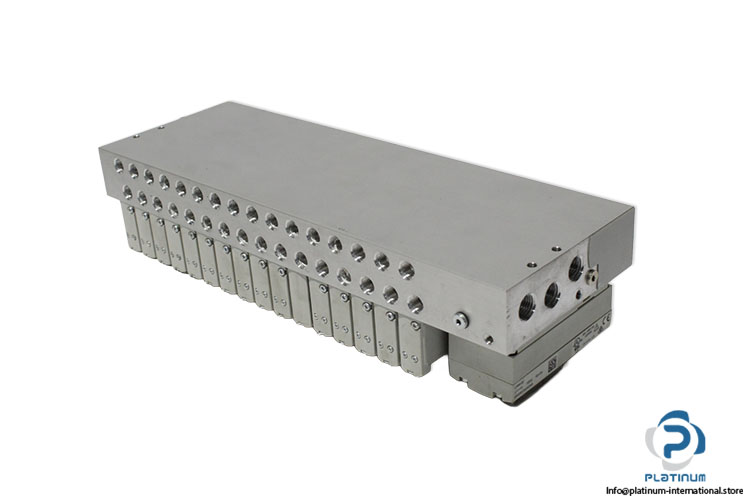

Festo 573508 16 Valve Manifold Rail
Used
In stock1 unitReady to ship
Manifold Rail Assembly Industrial FESTO manifold rail assembly with EtherCAT bus node, electrical interface, and double solenoid valve for pneumatic automation and fieldbus-controlled applications.
AirAutomationBUSCompressedCteu-ECDoubleElectricalEtherEtherCATFestoFieldbusIndustrialInterfaceManifoldModuleNodePneumaticrailsolenoidSystemVAEM-L1-S-24-PTValveVuvg
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

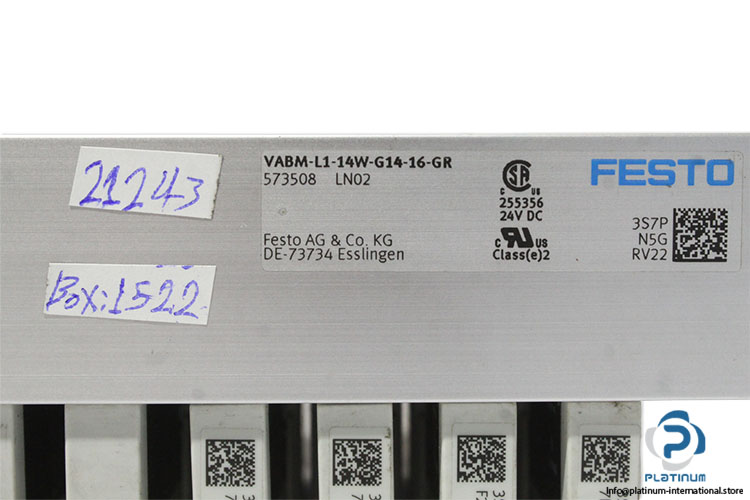

| Mat. No. | 573508 |
| Fluid | Compressed Air |
| Grid Dimension | 16 mm |
| Valve Positions No. | 16 |
| Pilot Air Ports 12/14 | M5 |
| Pilot Exhaust Ports 82/84 | M5 |
| Port Size | G1/8 & G1/4 |
| Material | Wrought Aluminum Alloy |
| Ambient Temperature | -20 ... 60 °C |

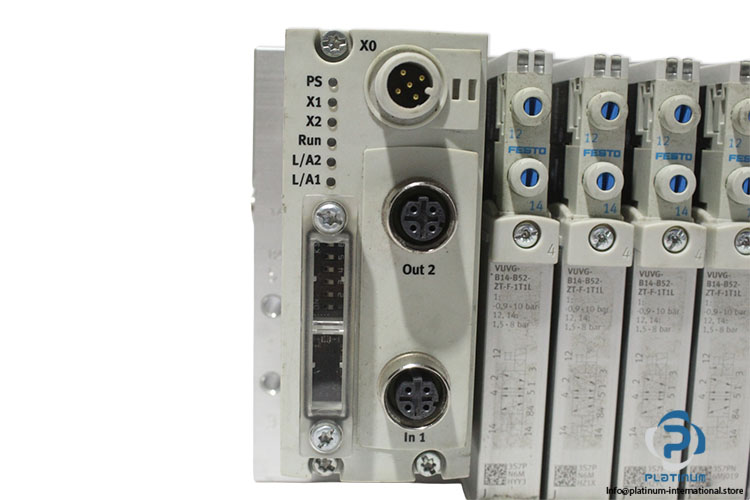

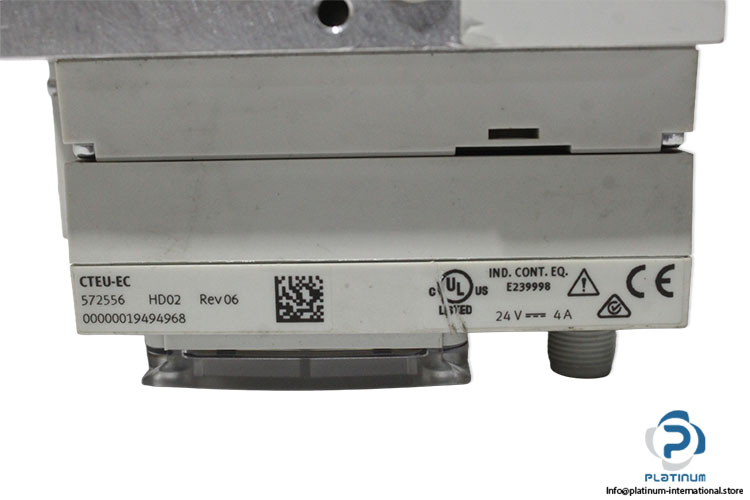

| Attachment 1 | FESTO 572556 BUS NODE |
| Bus Node Manufacturer | FESTO |
| Attachment 1 Type of Product | Bus Node |
| Bus Node Model | CTEU-EC |
| Bus Node Part No. | 572556 |
| Bus Node Rev. | 06 |
| Bus Node Ref. No. | 00000019494968 |
| Bus Node Protocol | EtherCAT |
| Bus Node Fieldbus Interface | Ethernet |
| Bus Node Field Bus, Protocol | EtherCAT® |
| Bus Node Fieldbus Interface, Function | Bus Connection Incoming/Outgoing |
| Bus Node Field Bus, Connection Type | 2x Socket |
| Bus Node Field Bus, Connection System | M12x1, D-Coded |
| Bus Node Field Bus Interface, Transmission Rate | 100 Mbit/s |
| Bus Node Address Volume, Inputs/Outputs Max. | 16 Byte |
| Bus Node Configuration Support File | XML |
| Bus Node Nominal Operating Voltage | 24 V DC |
| Bus Node Current Max. | 4 A |
| Bus Node Power Consumption | 60 mA |
| Electrical Connection | M12x1, Plug, A-Coded, 5-Pin |
| Bus Node Mounting Type | On Electrical Interface / Sub-Base |
| Bus Node Material | PA |
| Protection Class | IP65/IP67 |
| Bus Node Ambient Temperature | 0 … 50 °C |
| Bus Node Dimensions | 40 x 91 x 50 mm |

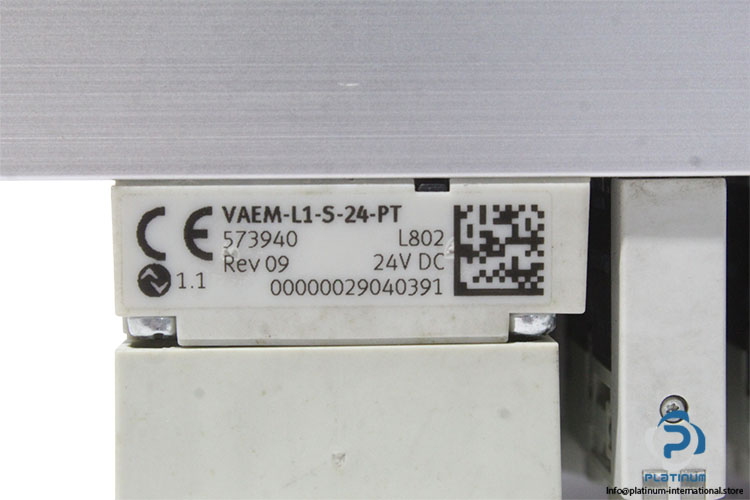

| Attachment 2 | FESTO 573940 ELECTRICAL INTERFACE |
| Electrical Interface Manufacturer | FESTO |
| Attachment 2 Type | Electrical Interface |
| Electrical Interface Model | VAEM-L1-S-24-PT |
| Electrical Interface Art. No. | 573940 |
| Electrical Interface Ref. No. | 00000029040391 |
| Electrical Interface Rev. | 09 |
| Electrical Interface Operating Voltage | 24 V DC |
| Attachment 3 | FESTO 573484 DOUBLE SOLENOID VALVE |
| Solenoid Valve Manufacturer | FESTO |
| Attachment 3 Type | Double Solenoid Valve |
| Solenoid Valve Model | VUVG-B14-B52-ZT-F-1T1L |
| Solenoid Valve Part No. | 573484 |
| Solenoid Valve Fluid | Air |
| Solenoid Valve Size | 14 mm |
| Solenoid Valve Design | Piston Gate Valve |
| Solenoid Valve Function | 5/2 Bistable |
| Solenoid Valve Actuation | Electrically |
| Solenoid Valve Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve Pilot Pressure | 1.5 ... 8 bar / 0.15 ... 0.8 MPa |
| Solenoid Valve Nominal Flow Rate | 510 l/min |
| Solenoid Valve Pneumatic Connection | Flange |
| Solenoid Valve Electrical Connection | Sub-Base |
| Solenoid Valve Material | Wrought Aluminium Alloy |
| Solenoid Valve Protection Class | IP65/ IP67 |
| Solenoid Valve Ambient Temperature | -5 … 60 °C |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1102001 |
| Weight | 3,72 |
